IN120 Mortise Lock
Prior to installation, all holes must be free of burrs, debris and sharp edges.
Prepare door according to appropriate template (see website www.intelligentopenings.com).
• Field Template: A8150 (ships with product)
• Door Manufacturer’s Template: 4713
2 Prepare Lock Body

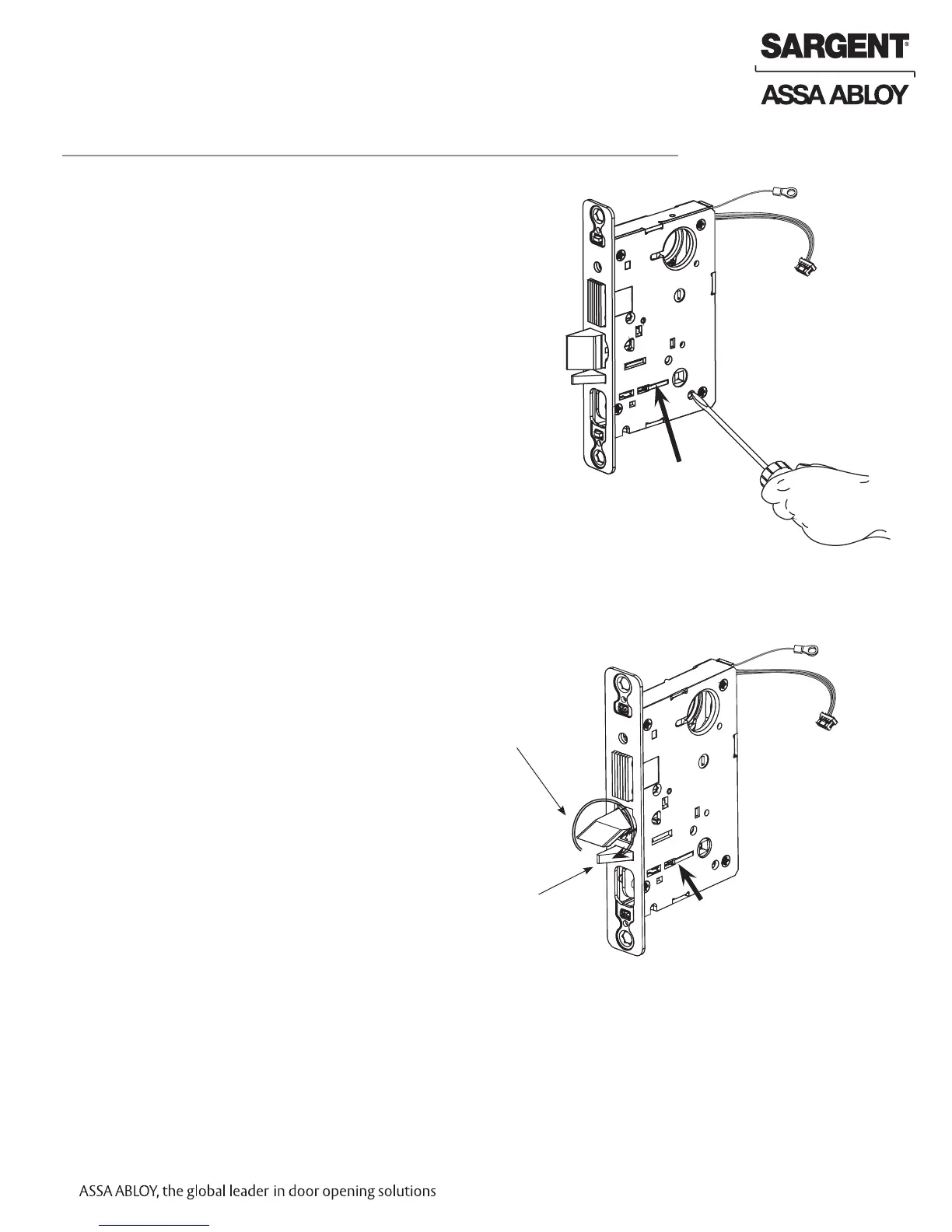

1. Position lock body so that red surface of locking piece is visible.
2. Insert blade type screwdriver into locking piece slot to rotate
locking piece.
3. Push locking piece toward the back of the lock
body and rotate the locking piece 180°.
Note: Red indicates locked (outside) side.
A. Reverse Lock Hand (If Required)
4. Rotate the latchbolt 180° (Fig. 2B).
5. Flip deadlatch by hand to match bevel of latchbolt.
B. Reverse Latch Hand (If Required)
Fig. 2A
Locking piece
Fig. 2B
Locking piece
Deadlatch
Latchbolt
