IN220 Cylindrical Lock

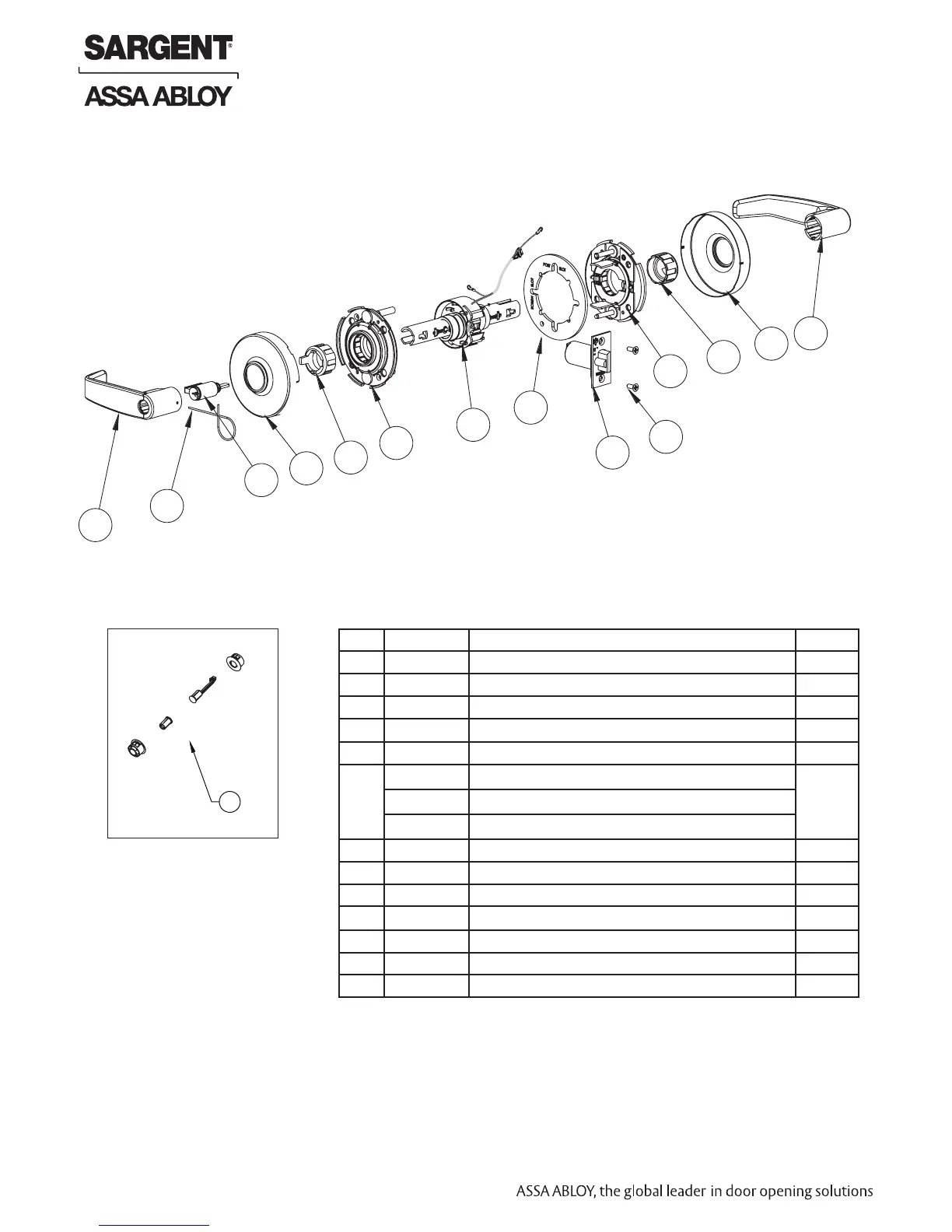

Parts Breakdown (Continued)
*Adapter Plate/Spacer (10-0847)
is only shipped with orders
that specify 1-3/8” doors.
Tools Required:
• #2 Phillips screwdriver
• Flat head screwdriver
• Security allen wrench
13
1
2
3
4
5
6
7
11
5
4
12
9
10
8
*
ITEM
PART NO./ORDER
STRING
DESCRIPTION
QTY.
1 --- Outside Lever (Reference Catalog for Available Styles) 1
2 10-0043 Lever Retainer Key (In Screw Pack 10-2052) 1
3 --- Cylinder Assembly (Reference Catalog for Available Cylinders) 1
4 --- Rose (Reference Catalog for Avalable Styles) 2
5 10-0792 Spacer Bushing 2
6 10-3049 Outside Rose Spring Assembly 1
7 10-3407 Lock body Assembly 10G77 (Standard Cylinder) 1
10-3412 Lock body - LFIC
10-3417 Lock body - SFIC
8 10-0847 Adapter Plate/Spacer (Only Included With 1-3/8” Thick Doors) 1
9 10-3192 Latch Assembly 1
10 10-2052 Screw Pack 2
11 10-3048 Inside Rose Spring Assembly 1
12 --- Inside Lever (Reference Catalog for Available Styles) 1
13 52-5373 DPS (Door Position Switch) Kit 1
14 A8203A Instructions (this manual) 1
