Sargent IN220 - Parts Breakdown

5 1-800-810-WIRE • www.sargentlock.com • A8203A
Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
04/30/16

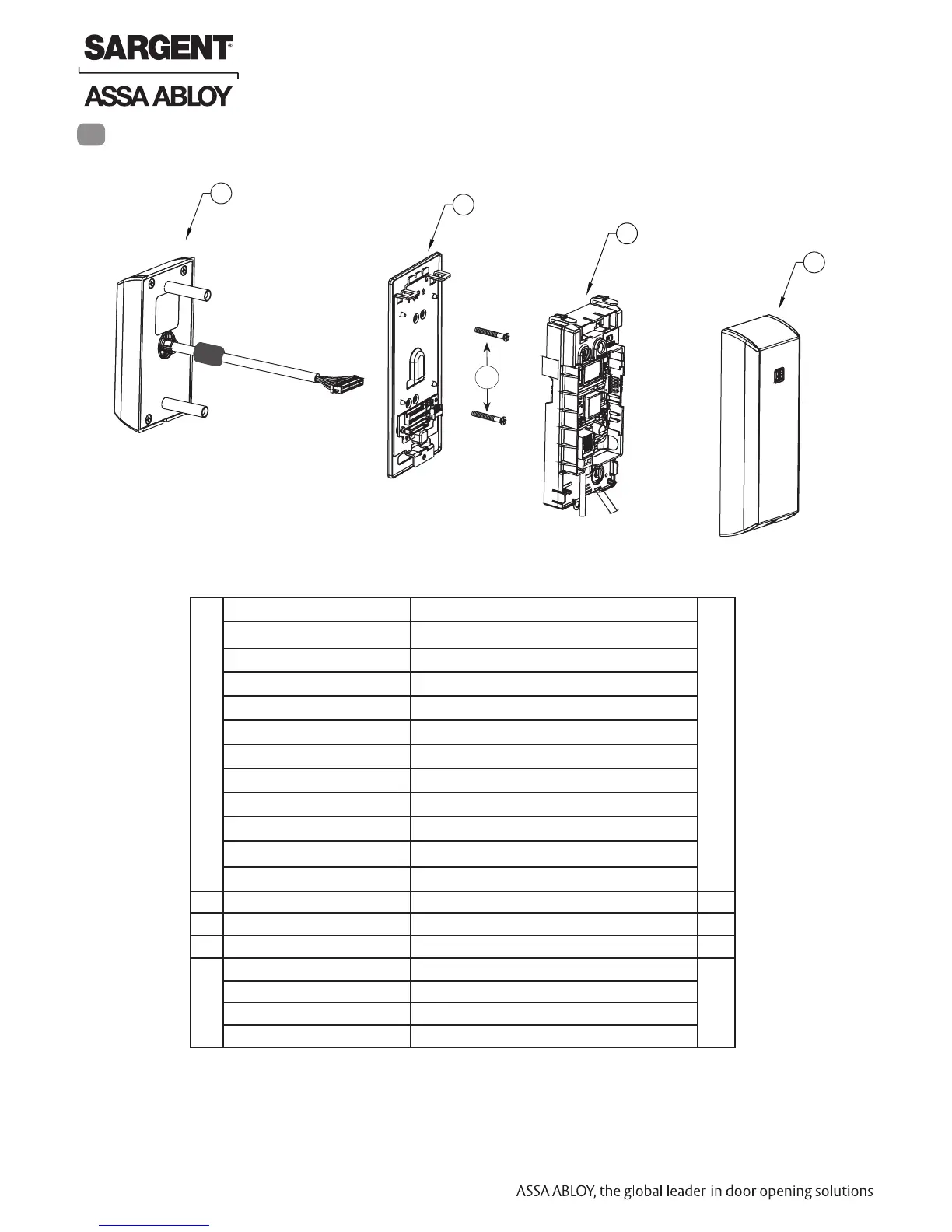

IN220 Cylindrical Lock
Parts Breakdown
5
1*
4
3
2
2a
** Specify finish
*Specifying B indicates Bluetooth
®
Smart option when ordering
1 IN-220-EM01-[B*]IP-B Reader assembly - black plastic 1
IN-220-EM01-[B*]IP-W Reader assembly - white plastic
IN-220-EM01-[B*]IP-MB-xxx** Reader assembly - black plastic with metal trim
IN-220-EM01-[B*]IP-MW-xxx** Reader assembly - white plastic with metal trim
IN-220-EM01-[B*]IPS-B Reader assembly - black plastic
IN-220-EM01-[B*]IPS-W Reader assembly - white plastic
IN-220-EM01-[B*]CP-B Reader assembly - FeliCa - black plastic
IN-220-EM01-[B*]CP-W Reader assembly - FeliCa - white plastic
IN-220-EM01-[B*]CP-MB-xxx** Reader assembly - FeliCa - black plastic with metal trim
IN-220-EM01-[B*]CP-MW-xxx** Reader assembly - FeliCa - white plastic with metal trim
IN-220-EM01-[B*]IPS-MB-xxx** Reader assembly - black plastic with metal trim
IN-220-EM01-[B*]IPS-MW-xxx** Reader assembly - white plastic with metal trim
2 IN-220-EM04 Mounting plate assembly 1
2a Through-bolts (#8-32 x 1 1/4”) 2
3 IN-220-EM03 Controller assembly 1
4 IN-220-EM02-B Inside cover assembly - black plastic 1
IN-220-EM02-W Inside cover assembly - white plastic
IN-220-EM02-MB-xxx** Inside cover assembly - black plastic with metal trim
IN-220-EM02-MW-xxx** Inside cover assembly - white plastic with metal trim
ITEM
PART NO./ORDER
STRING
DESCRIPTION
QTY.
