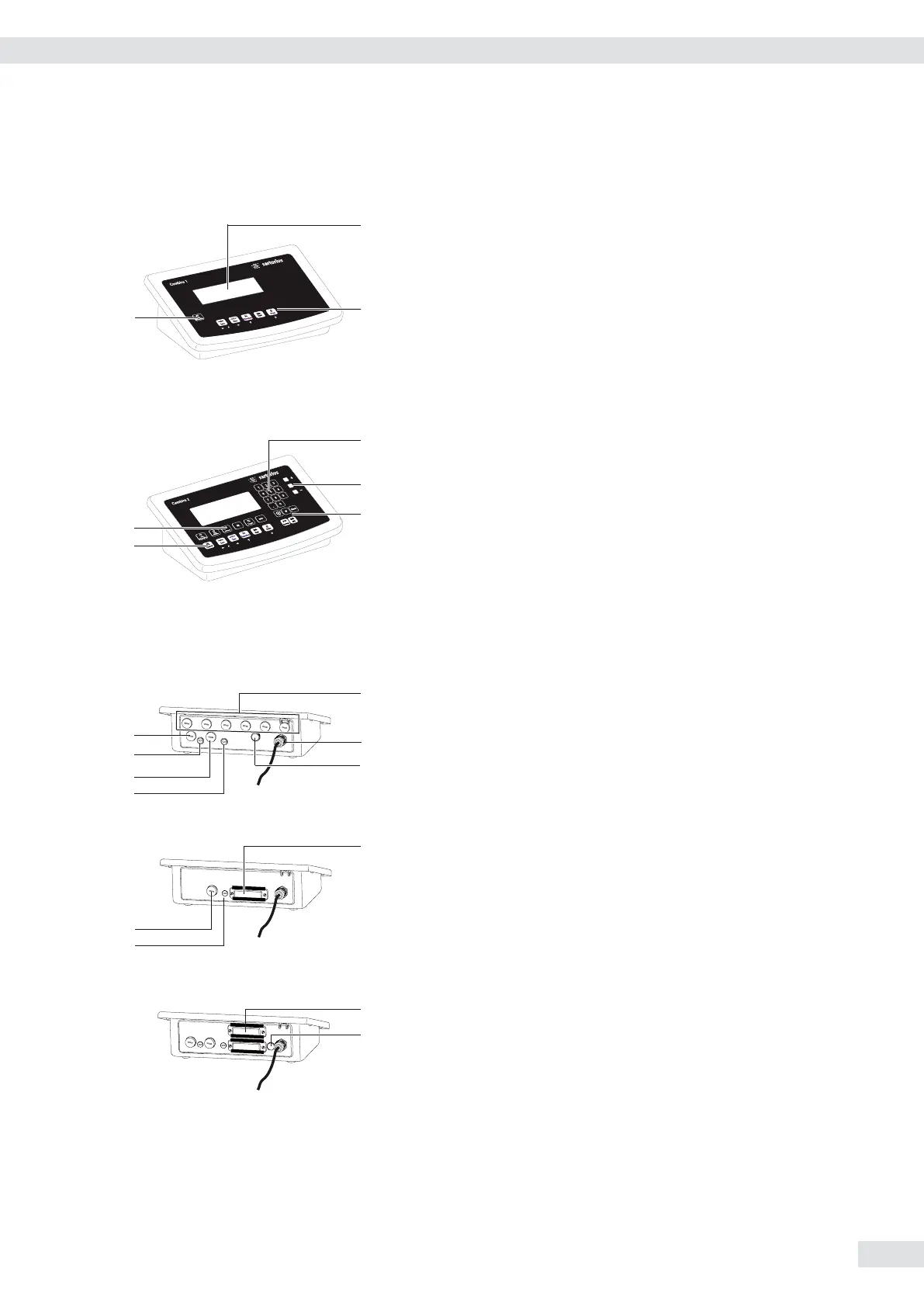

General View of the Equipment
Combics 1 and 2
1 Display (for a detailed diagram, please see the chapter
“Operating Design")
2 On/Off key
3 General function keys: Zero, Tare, Switch function,
Adjustment/Calibration, Print/Data output
(see “Operating Design")
Combics 2 only
4 10 digit keypad for entering values
5 LEDs (for checkweighing and classification)
6 Additional function keys (see “Operating Design")
7 Toggle between weighing platforms (WP)
Back
8 Connection options for
– COM1 standard
– 2nd UNICOM interface for additional, optional functions
(e.g. Ethernet, profibus etc.)
– CAIS2: a barcode scanner can be connected via a terminal
block
9 Power cord with country-specific plug
10 Vent valve: 1.5 Nm
11 Weighing platform WP-1 and/or WP-2 connection
12 Input for menu access switch (standard or legal-for-trade
mode) for WP-1 and/or WP-2
13 RS232C interface “COM1" (standard)
14 Second “UNICOM" interface (Combics 2 only)
15 Combics 2 only: PS/2 connection (barcode scanner, external
keypad)
Operating Instructions Combics Indicators 7
Device Description
13
9
10
8
14
15
12
11
12
11
12
11
CAIS1 | CAIS2
CAISL1
CAISL2
1
3
2
4
5
6
6
7
