Operating the Combics 2
Example:

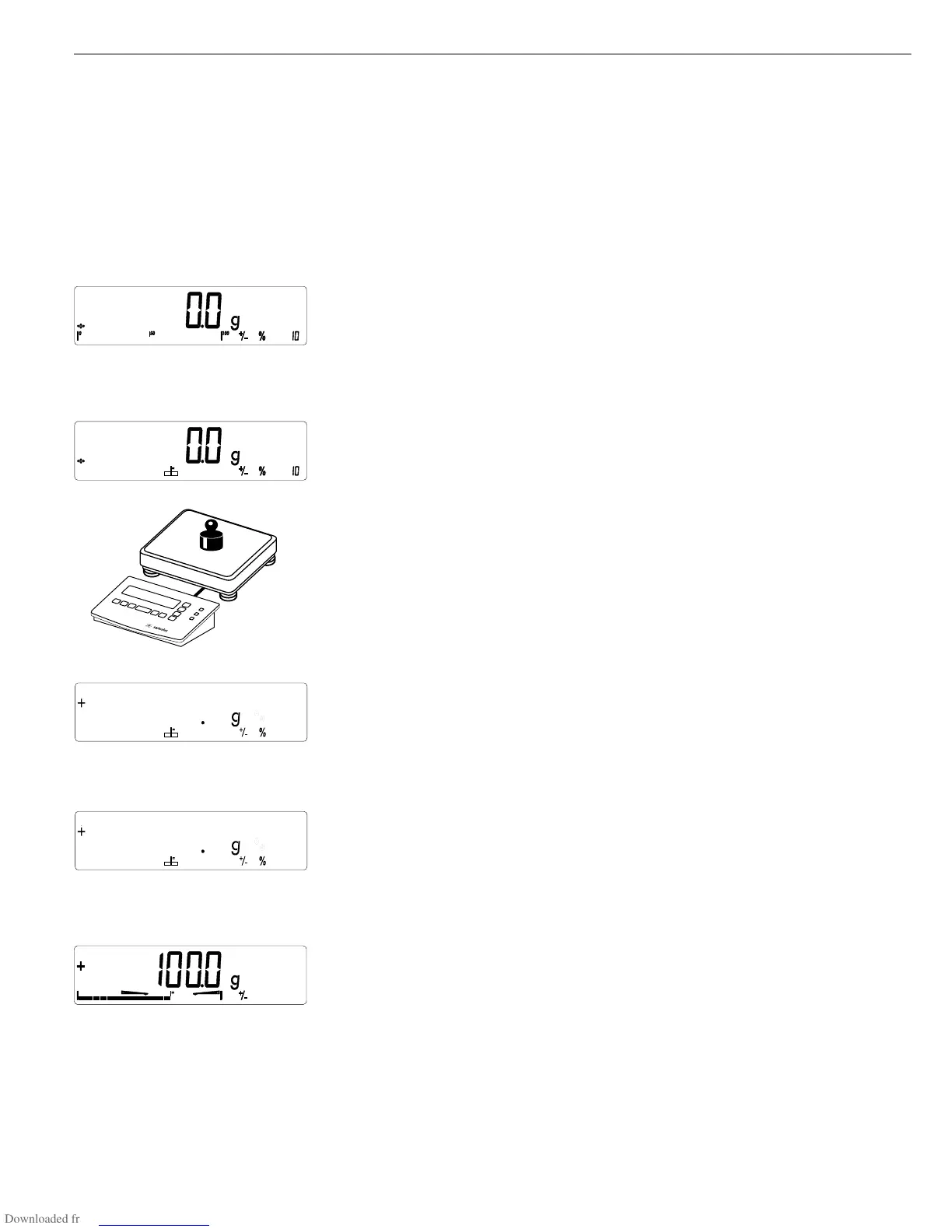

Initialize the Checkweighing application by taking over the weighed value as target; select percentage to define tolerance range
(menu item 4.5.2)
c Delete any existing initialization data
O Begin initialization
The middle segments of the bar graph flash to prompt the placement of the weight
on the weighing instrument
Place the weight for the target on the weighing instrument (in this example, 100.0 g)
r repeatedly, if necessary Select the desired percentage for tolerance limits (in this example, 5%)
O Store target and calculate tolerance range based on the selected percentage
Optional: w < 2 sec. Toggle to Info mode to view stored values
8
01
1000
8
51
1000
Combics 2
OK
REF
CF
Fn
0
T
n
-
