Installation

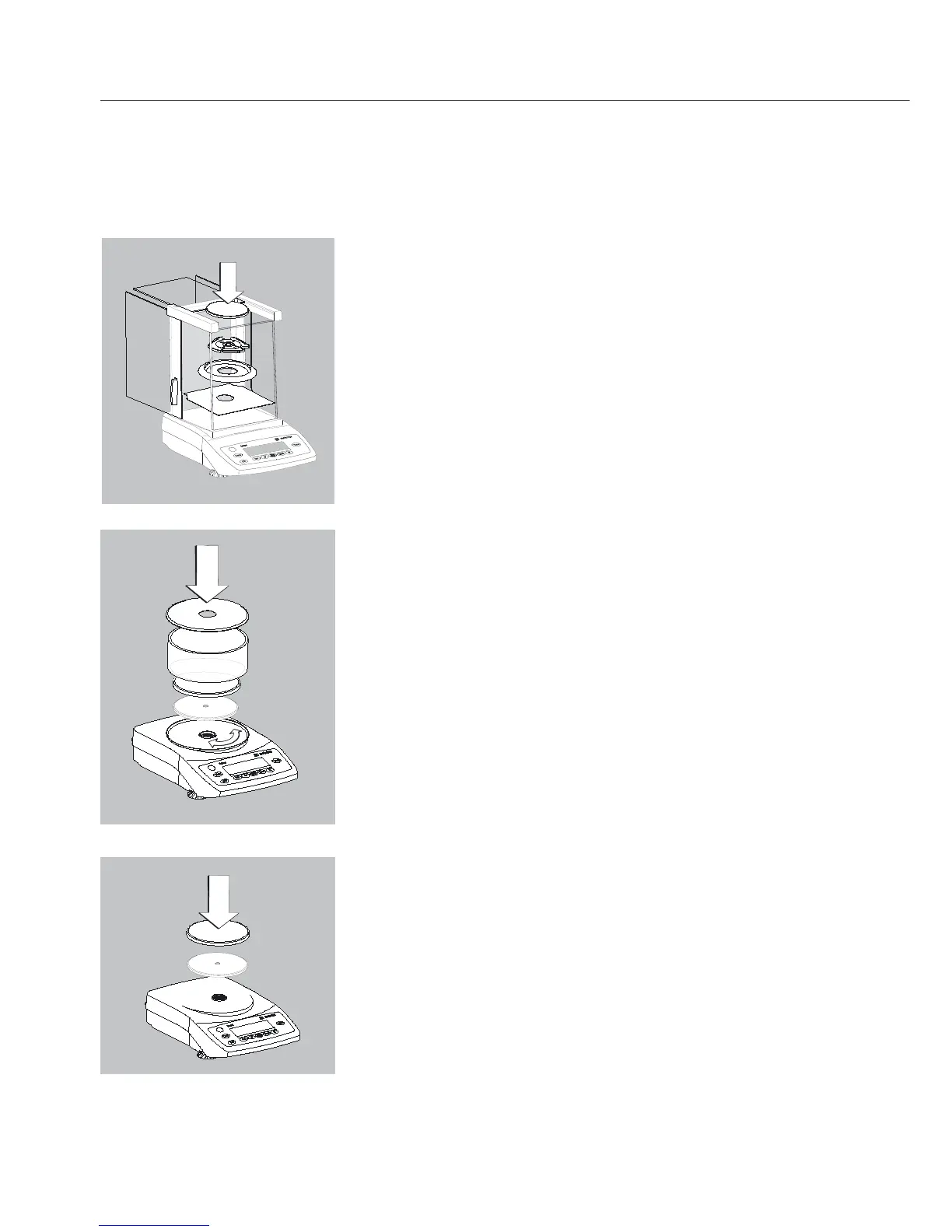

Setting Up the Balance/Scale
Instruments with sliding-door draft shield chamber:
§ Place components inside the chamber in the follow-
ing order:
– Shield plate
– ED models, GK1403, GK1203, GK703 and GK303:
shield ring (not on versions ED423S-DS,
ED323S-DS, ED153-DS)
– GK3102, GK2202: disk
– Pan support
– Weighing pan
– Gem tray (GK models only)
Instruments with a round glass draft shield:
§ Position the components listed below in the order
given:
– Place the lower lid on the balance/scale with the
raised edge facing upwards and turn it until it is
firmly in position
– Pan support
– Weighing pan
– Glass draft shield
– Gem tray (GK models only)
– Place the upper lid on the draft shield with the
raised edge facing downwards
Instruments with a round weighing pan
§ Position the components listed below in the order
given:
– Pan support
– Weighing pan
– Weighing bowl (GW models only)
Instruments with a rectangular weighing pan:
§ Place the weighing pan on the balance/scale
§ Weighing bowl (GW models only)
6
