Getting Started

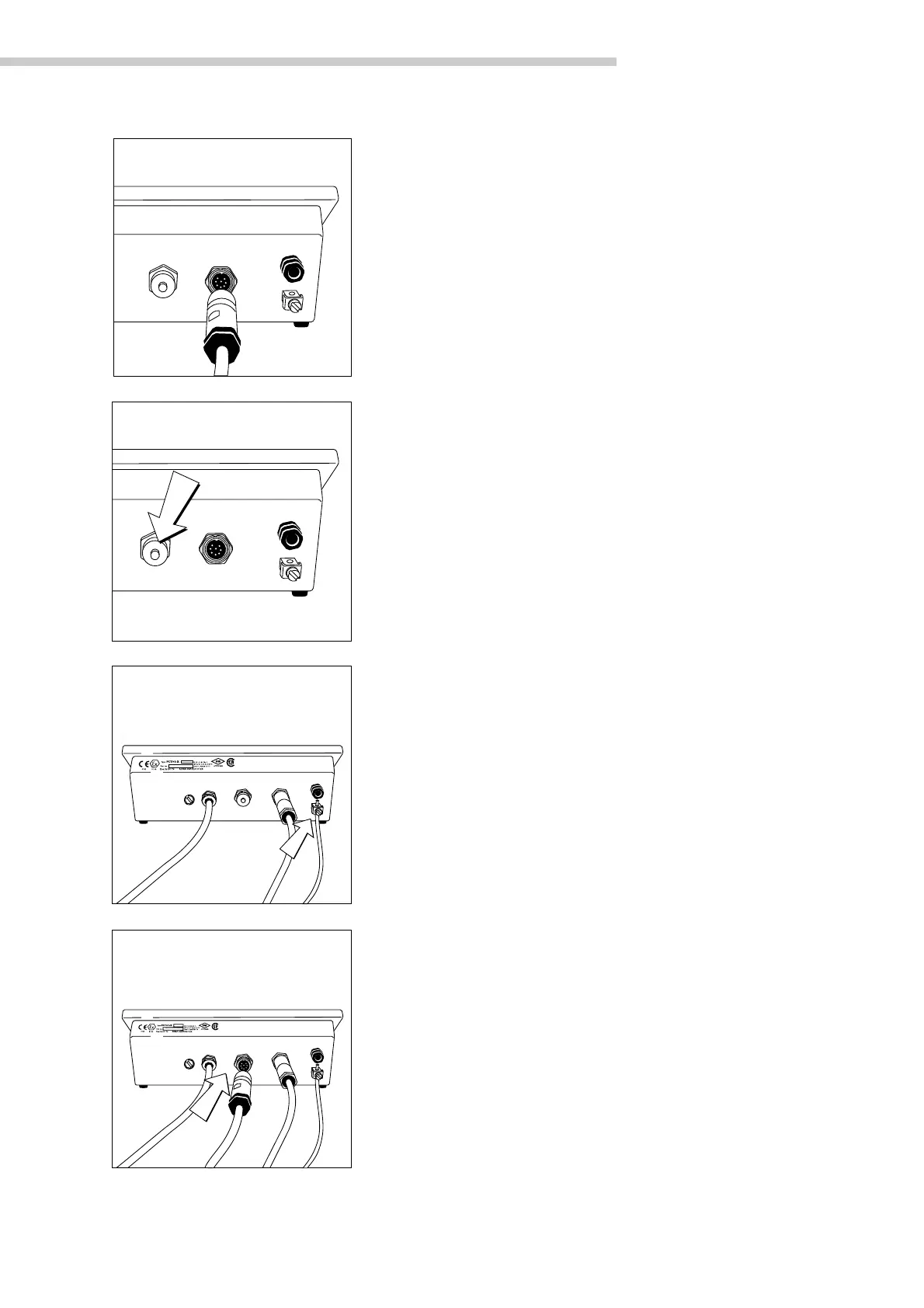

§ Plug the female connector of the AC adapter (power supply) cable into
the male socket on the terminal. Secure this connection by tightening the
knurled collar.
! Install the power cable so that it is protected from damage.
$ The intrinsically safe connector for the power cable (primary) on YPS02-X...
AC adapters (power supplies) is not part of the standard equipment supplied
(exposed wire ends).
! Use the threaded cap supplied to close a socket that is not in use.
If all sockets are in use, keep the threaded cap in a safe place in case
it is required in future.
Grounding (Earthing) Using an Equipotential Bonding Conductor
§ Connect the terminal using a grounding cable (equipotential bonding
conductor; not supplied) to the main grounding terminal.
In addition, the metal housing of the AC adapter (power supply)
is grounded by the protective grounding conductor of the power cable.
The metal housing of the terminal is connected to the braided shield of the
AC adapter (power supply) connected to the terminal.
Connecting Electronic Peripheral Devices
§ Make absolutely sure to unplug the FCT01-X from AC power
before you connect or disconnect a peripheral device (printer or PC)
to or from the interface port.
