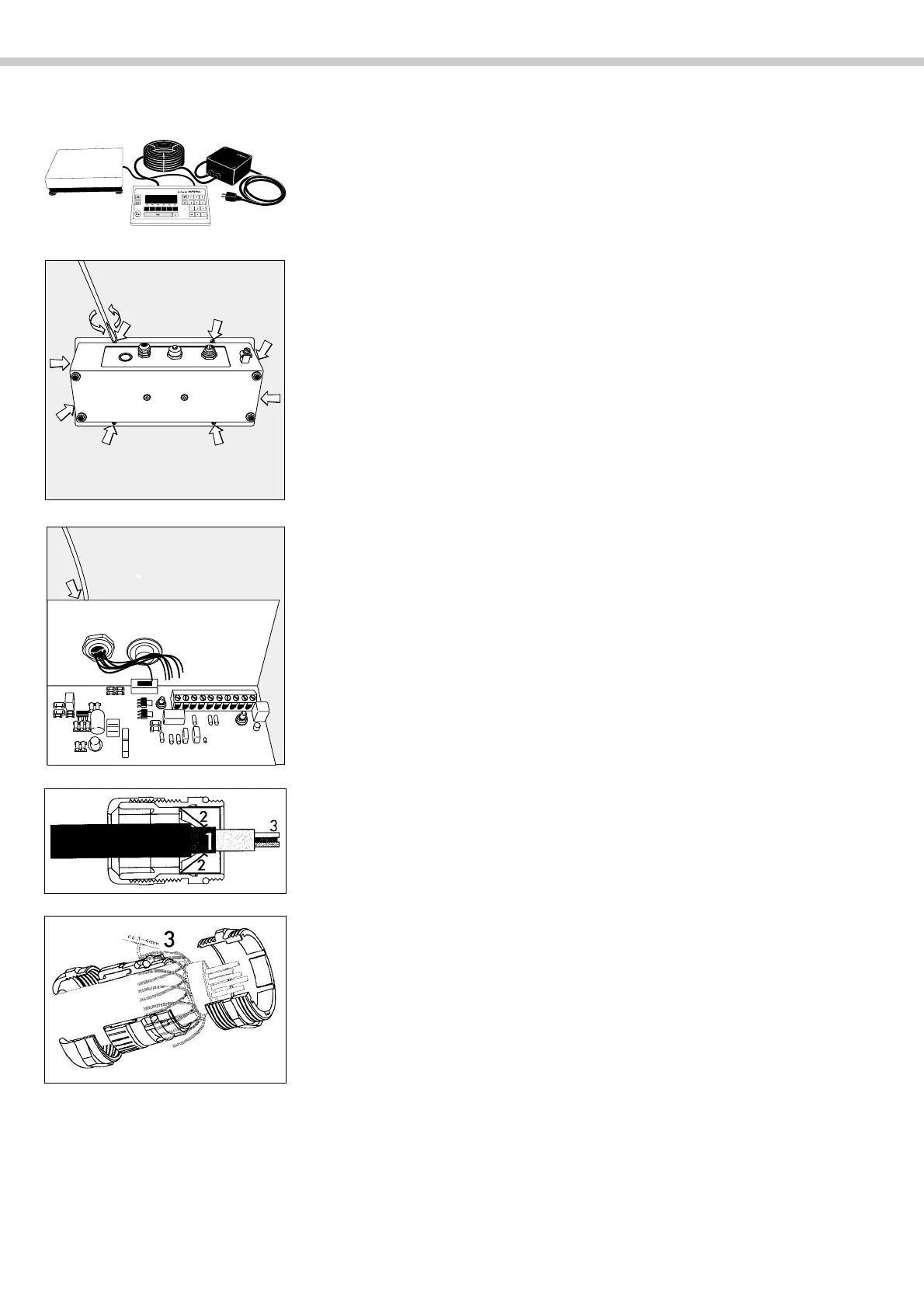

6
Connecting the FCT01-X
Connecting the AC Adapter/Power Supply and the Weighing Platform
Note:
The equipment must be outside the hazardous area/location during this
procedure. Installation must be performed by a trained technician.
§ Lay the terminal face down on a soft surface
§ Remove the screws indicated by the arrows in the drawing at left
§ Remove the front plate and stand the terminal upright on its feet
§ Connecting the weighing platform cable to the terminal:
Note:
The FCT01-X is equipped with a cable gland. Use caution when working with
the cable gland.
! Maximum cable length between the FCT01-X and the weighing platform
is 150 m (cable designation: LiYCY6x0.5
2
)
§ Preparing and installing the cable:
Remove the threaded cap from the cable gland and slide it over the end
of the cable.
Remove a length of the casing from the end of the cable (see drawing).
The shielding (1) must have contact with the retainer clips (2).
Fold back about 3 to 4 mm of the shielding so that it goes over the O-ring
(see drawing).
Expose approximately 15 cm of the cable wires (3) for connection within
the terminal.
Thread the cable through the cable gland.
Make sure the shielding is in contact with the retainer clips.
Tighten the cable gland.
