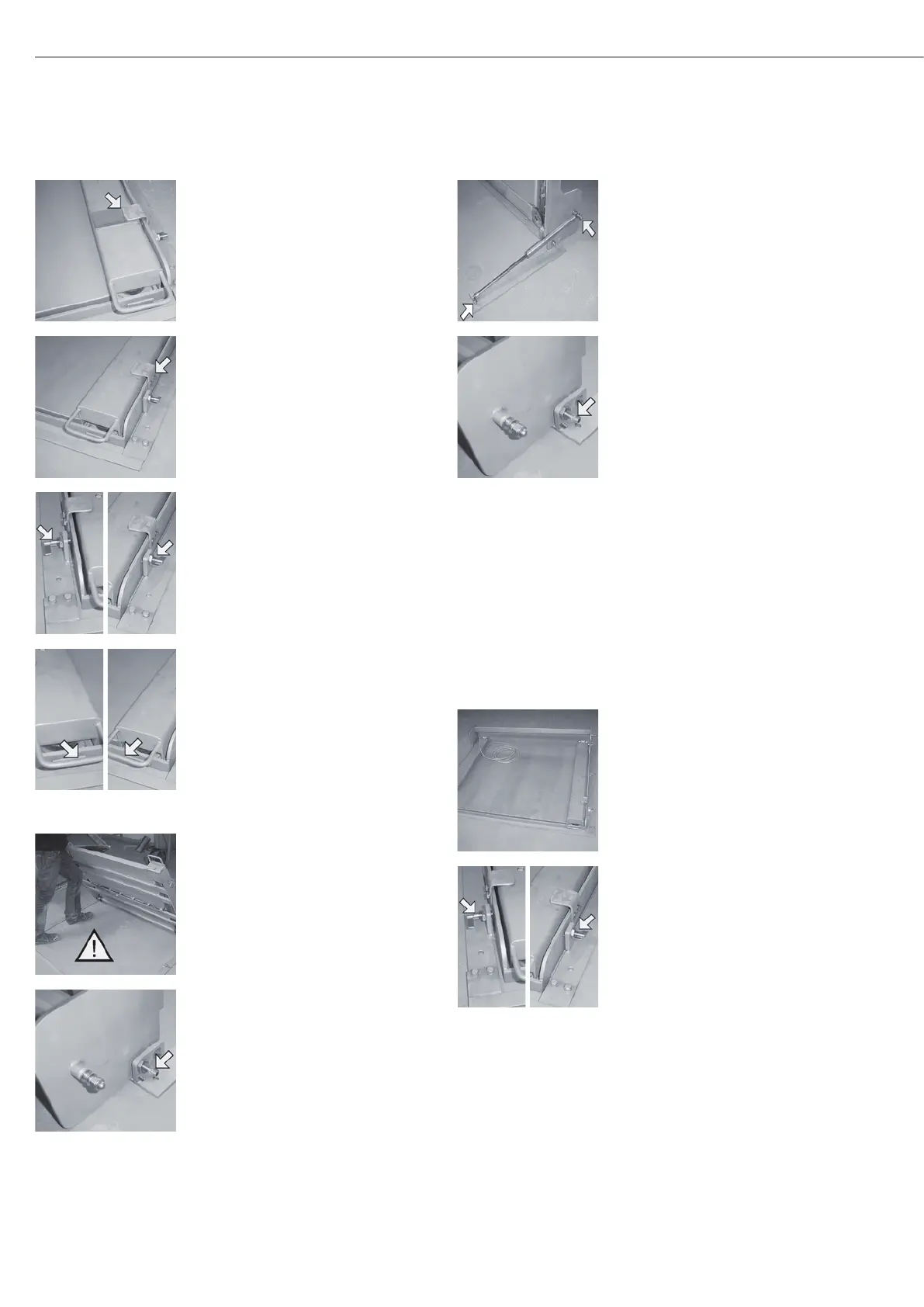

§ Check the gap between the down-
holders (right and left) and the scale;
it should be 2 mm.
– Use a 2-mm thick spacing plate
or
– Measure the gap.
$ Check this gap at regular intervals
to make sure the 2-mm space is
maintained.
§ Adjust the gap as needed.
If necessary, loosen the bolts that
attach the downholder.
Bolt size: M8; wrench size: 13.
§ Before the scale platform can be
raised to a vertical position, loosen
the stop bolts on the right and left.
! Danger of damage to the stop
bolts! The rear stop bolts must be
disengaged!
§ Grasp the platform by the handles
and raise it to the vertical position.
Note:
Two persons are required for raising
the platform.
! Please observe the safety instructions,
as there is a hazard of personal inju-
ry. Always wear safety gloves while
raising or lowering the
platform.
! Warning: Danger of personal injury!
Do not stand or move beneath the
platform.
§ Turn the left and right stop bolts.
The bolts slide into the side plate and
secure the platform in the vertical
position.
$ The surface under the platform
can now be cleaned easily.
§ Install the pneumatic springs
(right and left) as shown in the
illustration.
Tighten the bolts (size M10;
wrench size: 17).
§ Following installation, return the
platform to the horizontal position.
§ Turn the rear stop bolts (right and
left). The bolts slide out of the side
plate and release the platform.
! Danger of damage to the stop bolts!
The stop bolts must be disengaged!
§ Grasp the platform by the handles
and lower it to the horizontal
position.
Note:
Two persons are required for
lowering the platform!
! Please observe the safety instruc-
tions, as there is a hazard of personal
injury. Always wear safety gloves
while raising or lowering the platform.
Do not stand or move beneath the
platform.
§ The platform is now in the horizontal
position.
§ Place your foot on the right-hand
downholder to press the side plate
of the scale to the floor; repeat
this procedure on the left-hand side
as well.
§ Position the front stop bolts (right
and left) to fix the scale in position
and turn the lever.
