RIO Bravo Local System Configuration
In most instances your RIO Bravo will be pre-configured at SAS. However, if you need to make any changes,
follow the procedure below:

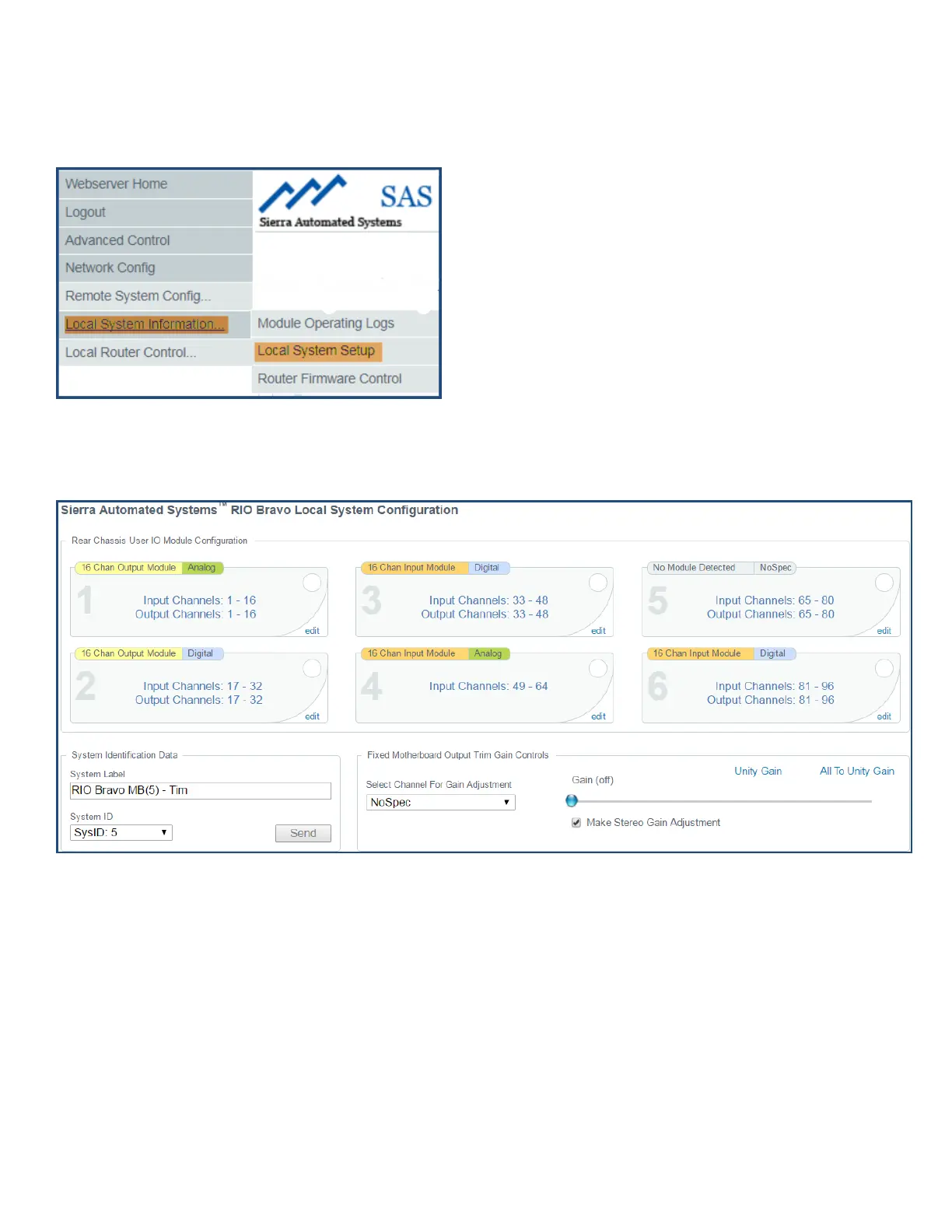

Figure 10: Local System Setup
1. As shown in Figure 10, select Local System Information and then click Local System Setup.
You’ll get a graphic representation of the I/O modules installed in your RIO Bravo (see Figure 11).
Figure 11: RIO Bravo Configuration
2. Click the edit button at the right-hand corner of each module to make the following changes:
A. Assignment of channel numbers to I/O modules. Typically SAS will set the first Input to
number 001 and the first Output to 001, and then increment to each of the next installed modules.
B. Adjust Input and/or Output Gain for each channel.
