SAS RIO Bravo IP Engine User Manual

RIO Bravo User Guide / Revision 6 / Page 5 of 19
Front Panel
The 2RU aluminum front panel is polished and anodized gun metal blue. Indicator lights as follows:

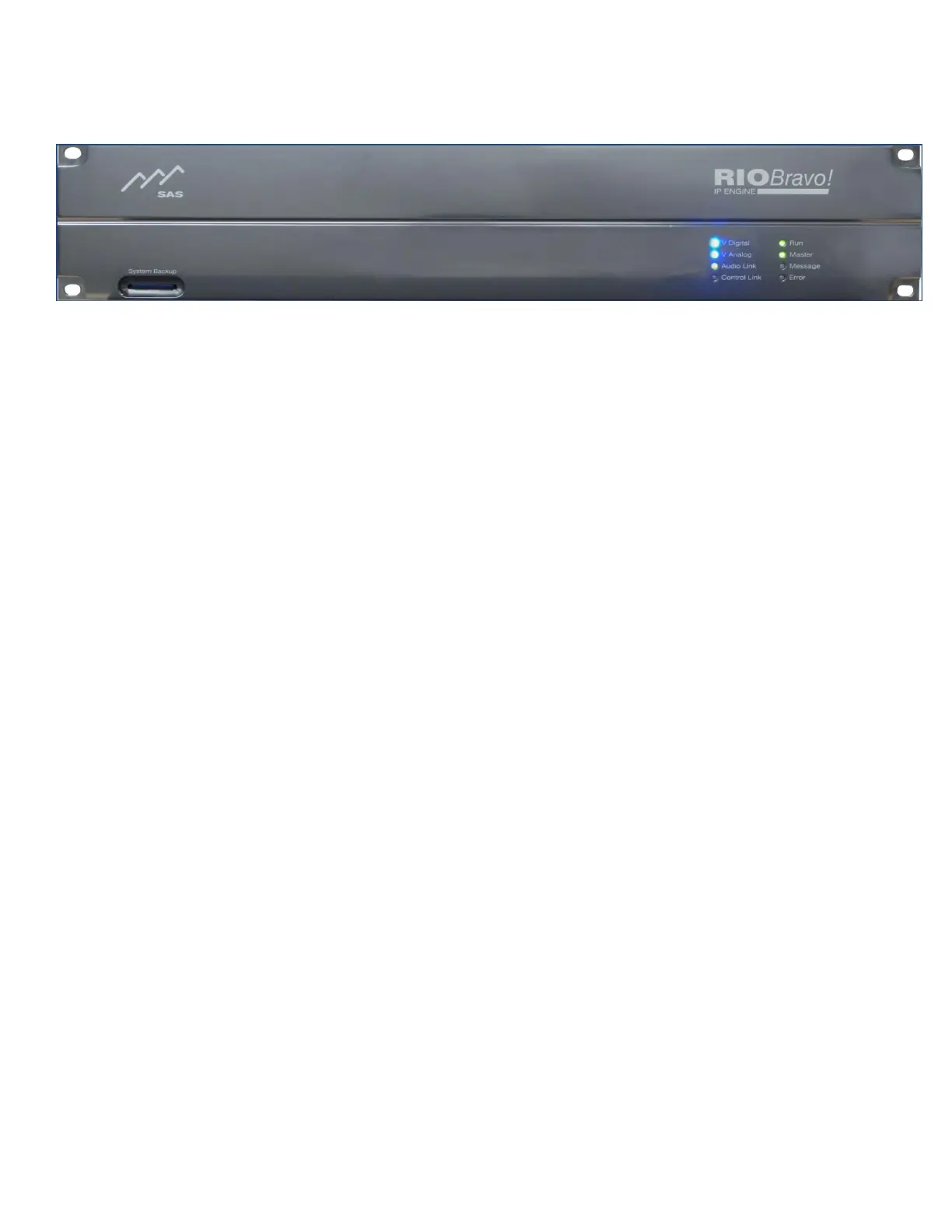

Figure 2: RIO Bravo Front Panel
System Backup provides an SD card for saving and restoring frame system data and specifying initial IP
address information
V Digital indicator is solid blue when powering digital devices.
V Analog indicator is solid blue when powering analog devices.
Audio Link is solid green when Dante’s Ethernet is working and red when it is not.
Control Link light blinks green when engine is connected to the network.
Run light flashes green when engine is running.
Master light is solid green when engine operates single or when providing master clock with multiple engines.
Message light blinks green when a message is received over the link.
Error light blinks red when the RIO encounters an error.

SAS RIO Bravo IP Engine Specifications

General

Brand	SAS
Model	RIO Bravo IP Engine
Category	Engine
Language	English
