RIO Bravo User Guide / Revision 6 / Page 13 of 19

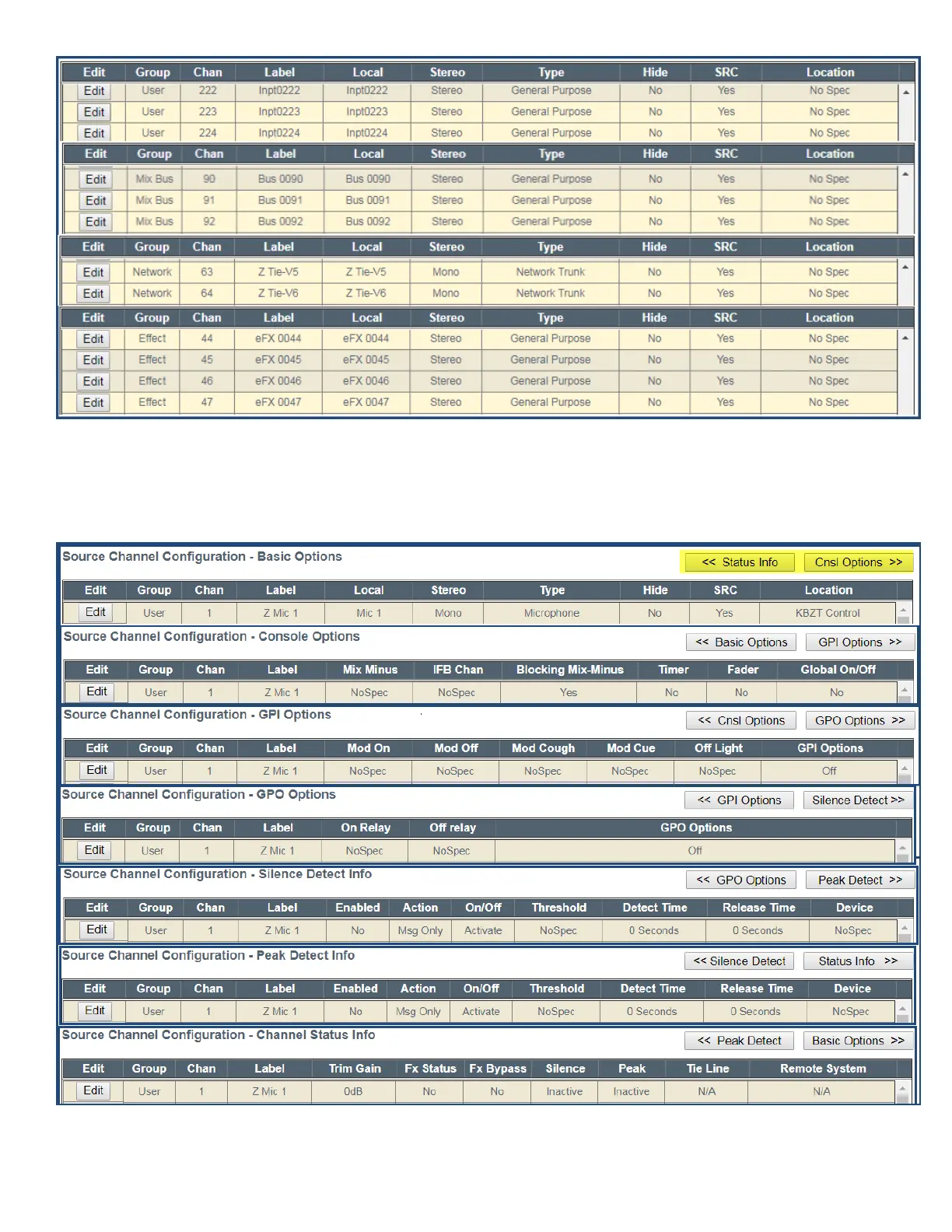

Figure 15: Input Channel Assignment
Note that you can get seven different views of your input channel configurations by clicking either of the two
top buttons (see yellow highlight in Figure 16): Basic Options, Console Options, GPI Options, GPO Options,
Silence Detect Info, Peak Detect Info, and Channel Status Info
Figure 16: Input Channel Configuration Views
