PM172 Quick Start Guide
Series PM172 Powermeters
3
3

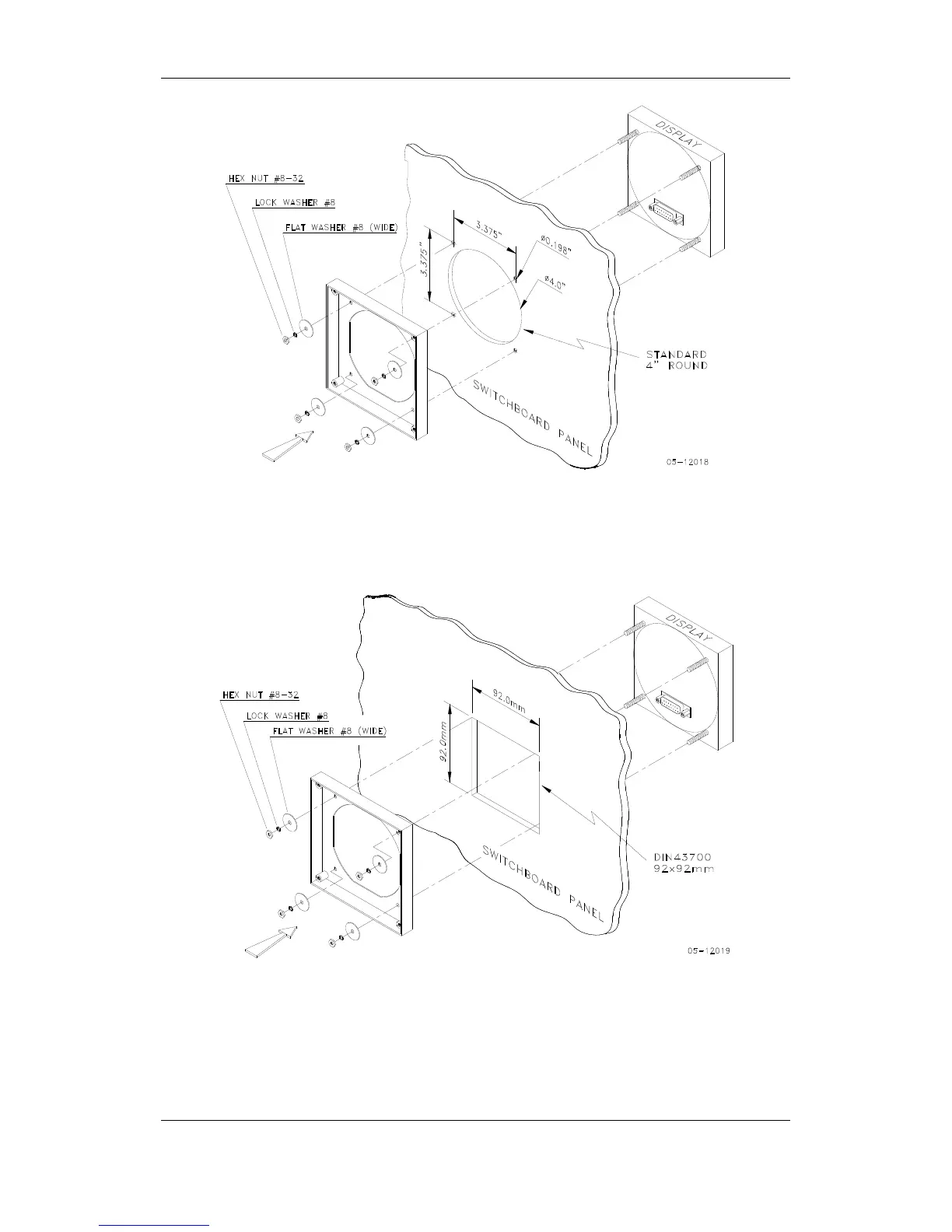

Figure 2 STEP 1 (ANSI 4" round cutout): Mount the display module in cutout
Figure 3 STEP 1 (DIN 92x92mm square cutout): Mount the display module in cutout
