SatKing ORBIT 85 - Connection Diagram

ENGLISH - 9

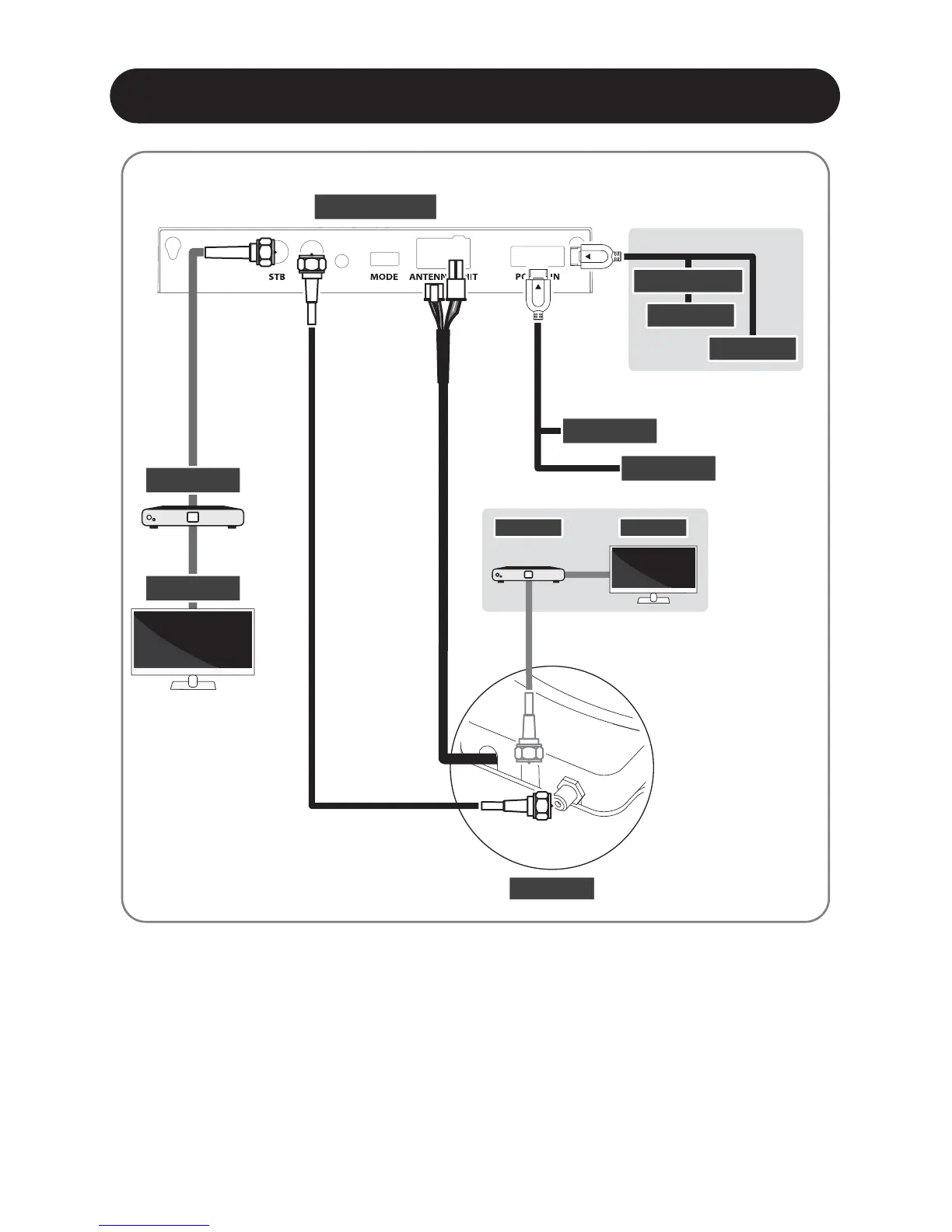

4. Connection diagram
MAIN UNIT
Use controller cable to connect the antenna to the controller. Controller cable is
pre-connected to the main body.
STB cable and signal cable are dierent lengths. Please check the lengths to use the
correct cable for the job.
Please ensure the supplied cables are used and not modied in anyway.
•
•
•
CONTROLLER
Controller cable
※ For second STB & TV
※ For 24V power supply
Signal cable
Power input cable
Signal cable (7m)
STB
TV
Ignition
12V Battery
Power input cable
Ignition
24V Battery
DC-DC converter
STB cable (3m)
STB
TV
