9. Caravan/Motorhome installation

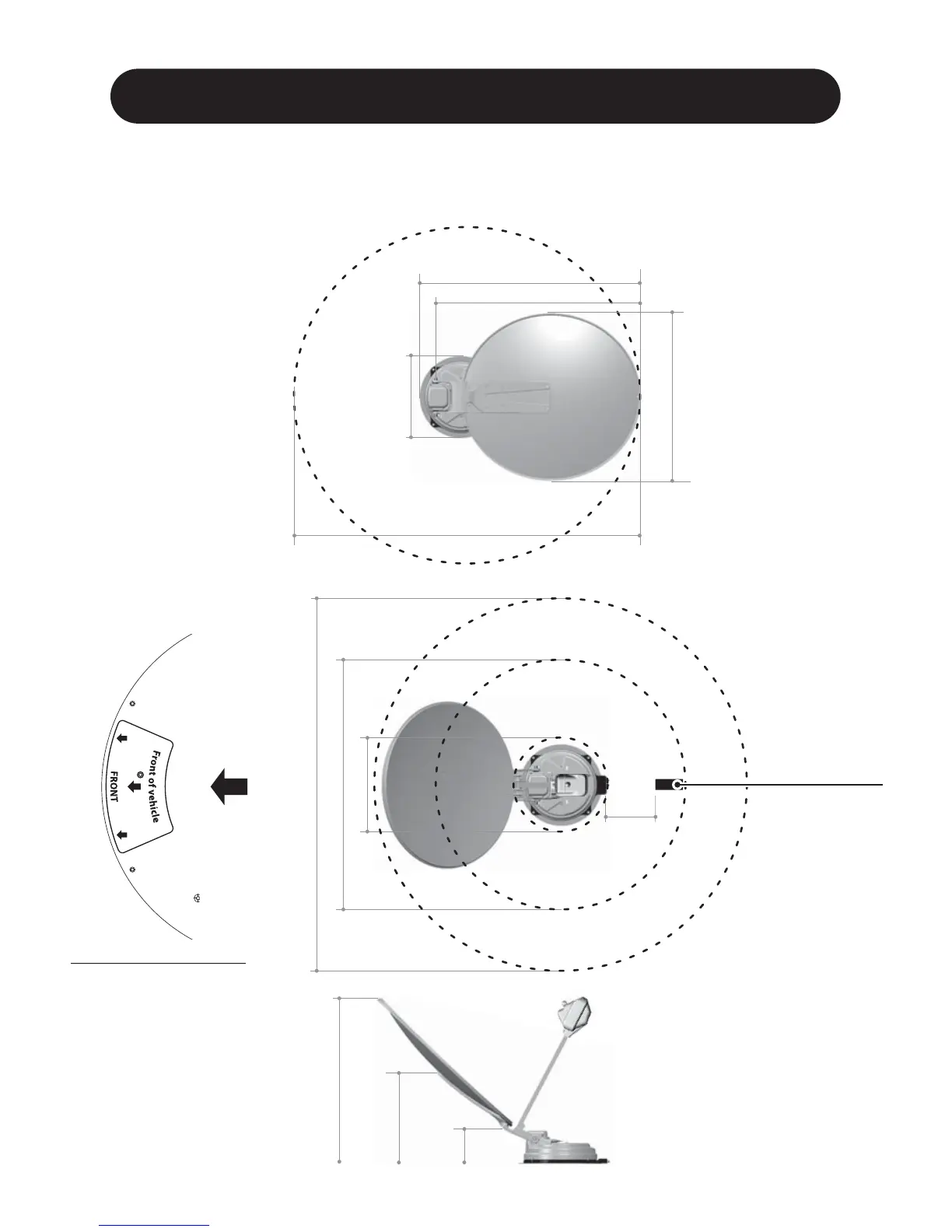

9-1. Required space for the SatKing ORBIT
Driving direction
※ Mounting plate direction
179.0 cm
120.0 cm
45.2 cm
16.0 cm
44 5 cm
80.0 cm
86.0 cm
110.6 cm
41.0 cm
102.6 cm
180.0 cm
24 cm
LNB protection pad
Please allow that there is enough space around the SatKing ORBIT for antenna section to
complete a full 360° scan of the sky and return to the HOME position.
