SatKing ORBIT 85 - Name of Parts

ENGLISH - 6

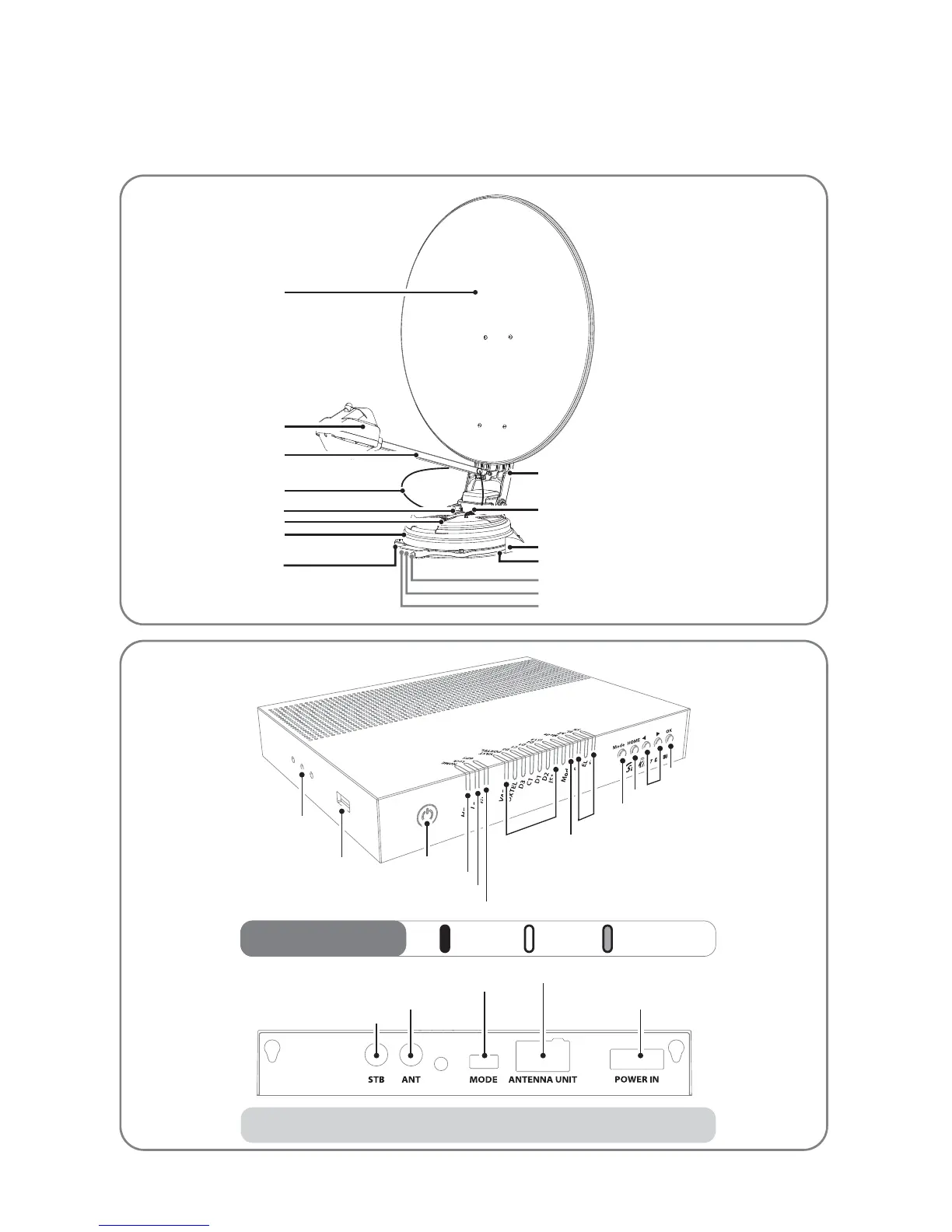

2-2. Name of parts
Main unit
Controller
Reector
LNB
LNB arm
LNB cable
LNB connector
Cable clamp
Main body
Base
Reector bracket
Auto skew cable
Deector
Mounting plate
to Controller ("ANT" port)
to STB (optional)
to Controller ("ANTENNA UNIT" port)
• Front
• Back
OnLED Indicator
Power S/W
USB port
Controller bracket hole
HOME LED
Lock LED
GPS LED
Satellite
LEDs
Mode button
Manual mode LEDs
GPS LED
HOME button
Arrow buttons
OK button
BlinkingO
STB cable to STB
Signal cable from Main unit
Dip switch (Mode selector)
Controller cable from Main unit
Power port
Note. Make sure that dip switch is set for right mode. (see page10)
