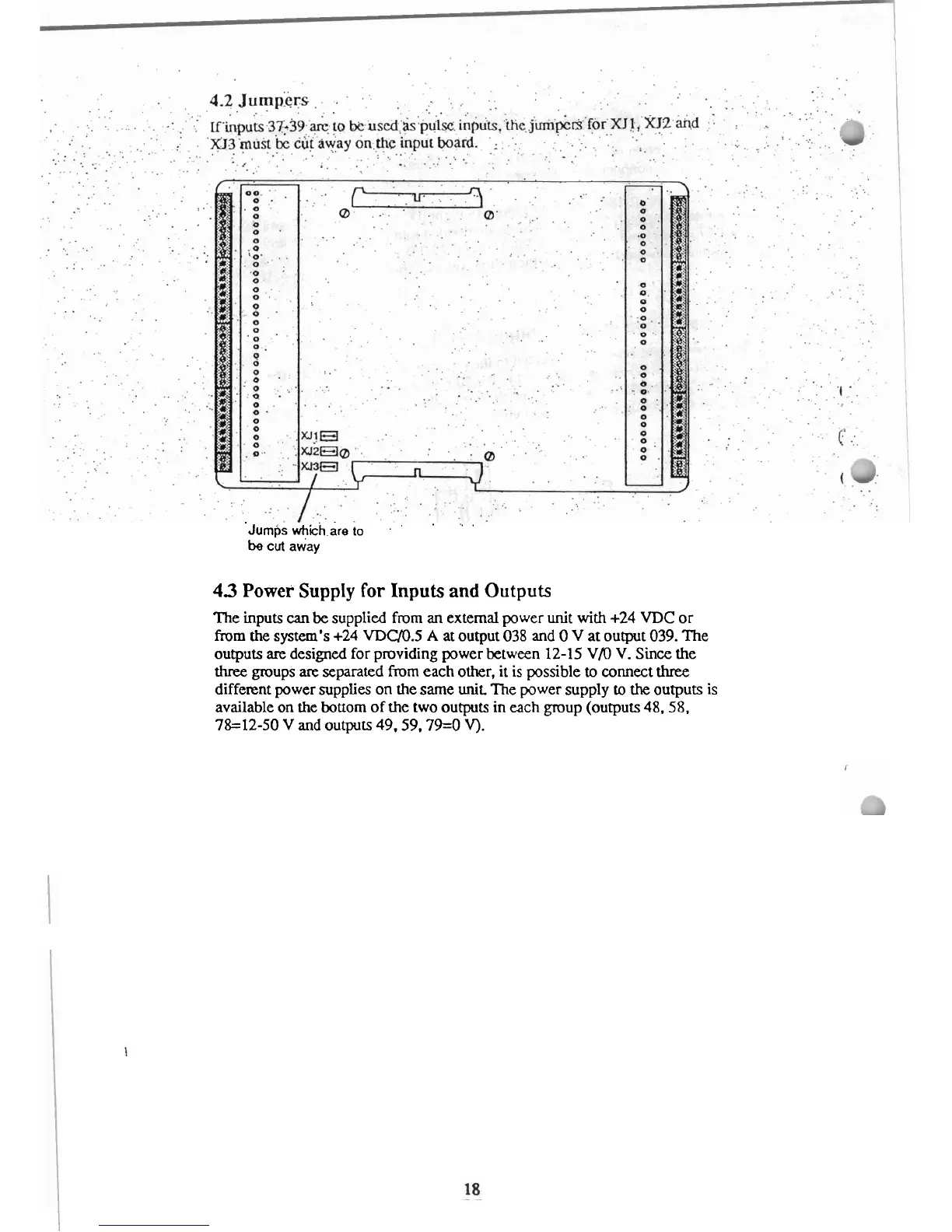

'~urnps which are to
. '
be cut away
43 Power Supply for Inputs and Outputs
The inputs can be supplied from an external power unit with +24 VDC or
from the system's +24 VDC70.5 A at output 038 and 0 V at output 039. The
outputs
are designed for pmviding power between 12-15 V/O V. Since the
three groups are separated from each other, it is possible to connect three
different power supplies on the same unit The power supply to the outputs is
available
on the bottom of the two outputs in each group (outputs 48.58.
78=12-50 V and outputs 49.59,79=0 V).
