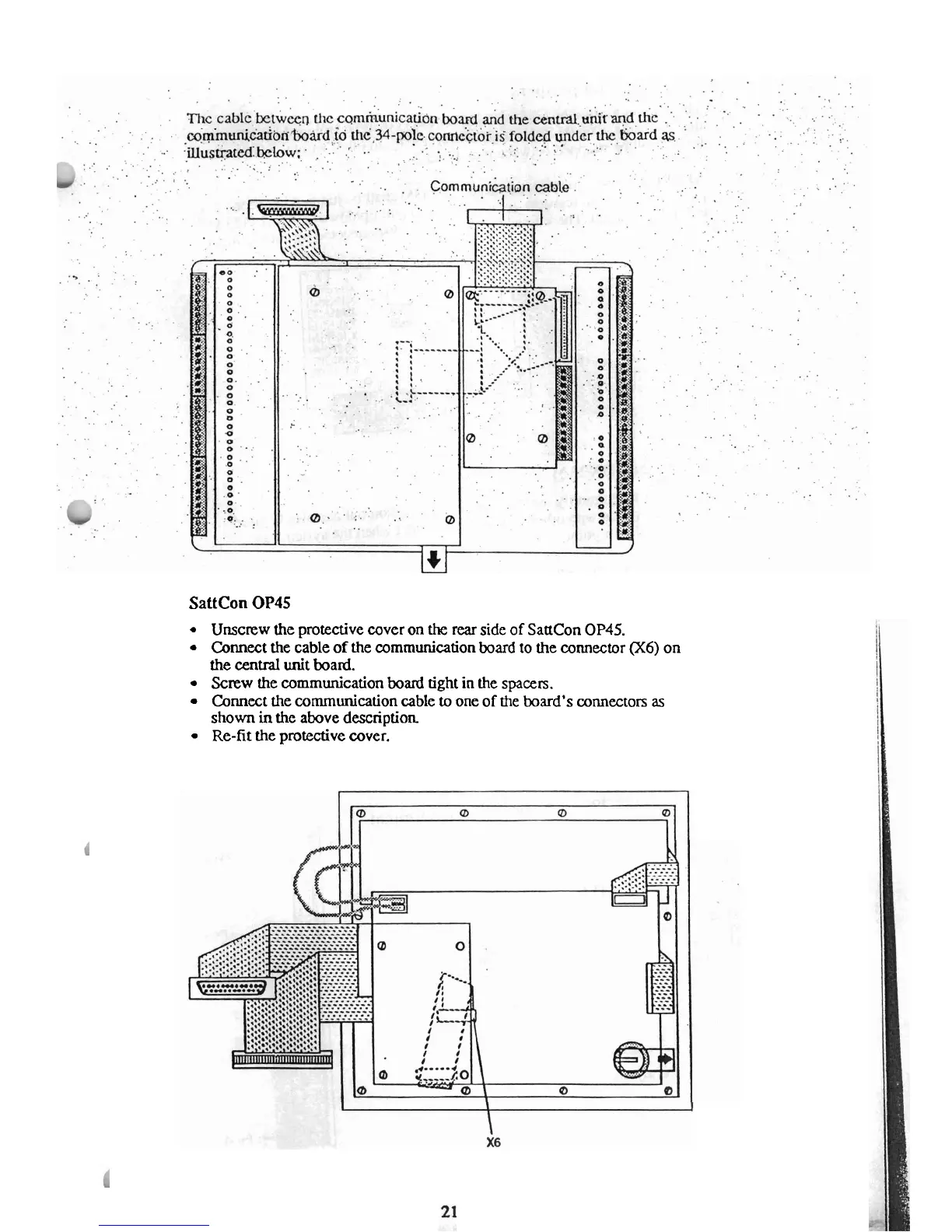

SattCon
OP45
Unscrew
the
protective cover
on
the
rear
side
of SattCon
OP45.
Connect
the
cable
of
the
communication
board
to
the
connector
(X6)
on
the
central
unit
board.
Screw
the
communication
board
tight
in
the
spacers.
Connect
the
communication
cable
to
one of
the
board's
connectors
as
shown
in
the
above
description
Re-fit
the protective
cover.
