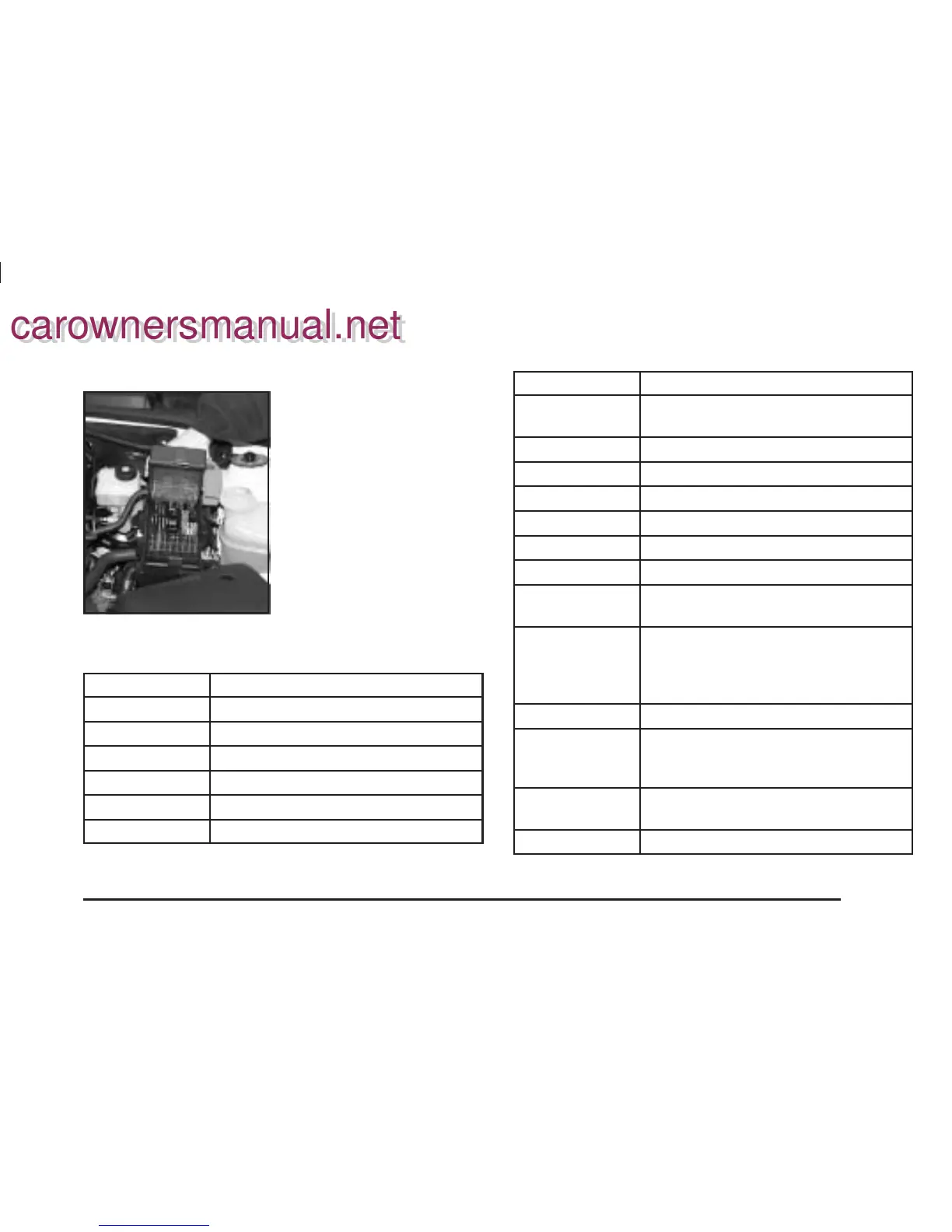

Engine Compartment Fuse Block
The engine compartment
fuse block is located in the
forward part of the
engine compartment near
the battery.
Fuses Usage
IGN 1/2 Ignition switch
IGN 0/3/CR Ignition switch
COOL 1 Cooling fan module
COOL 2 Cooling fan module
ABS 1 Anti-Lock Brake System
ABS 2 Anti-Lock Brake System
Fuses Usage
HVAC
BLOWER
High Blower
HORN Horn
R HDLP Right Headlamps
L HDLP Left Headlamps
A/C Air Conditioning System
LIGHTER Cigarette Lighter
AUX POWER Power Outlet
I/P BATT RT
Passenger’s Side Instrument Panel
Fuse Block
CONTROLS
B+
Powertrain Control Module (2.2L L4
(L61)), Engine Control Module (3.0L
V6 (L81), Transaxle Control Module
(3.0L V6 (L81))
BCM 2 Body Control Module
BCM/ECM/
CRUISE/ABS
Body Control Module, Engine
Control Module, Cruise Control,
ABS
EIS
Electronic Ignition System
(2.2L L4 (L61))
IGN Ignition Coils (3.0L V6 (L81))
5-95
