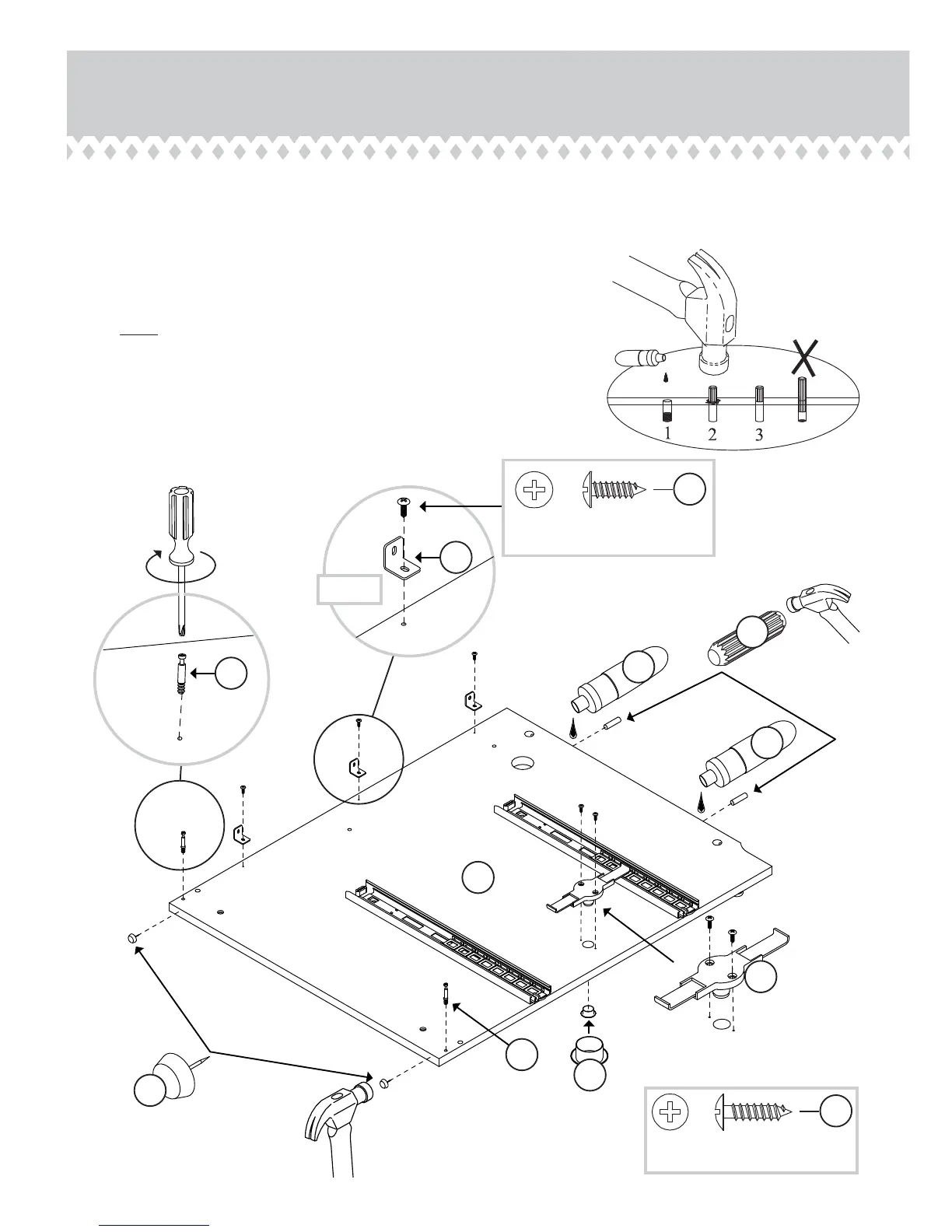

First, fi ll the holes in the short edge of the LEFT UPRIGHT (D) a 1/4 to 1/2 full with GLUE (G1). Then, use your hammer
to tap two DOWELS (R1) into the holes. Wipe away the excess GLUE.
å
Tap two FEET (F1) into the other short edge of the LEFT UPRIGHT (D) as shown.
å
Fasten three CORNER BRACKETS (T1) to the long edge of the LEFT
UPRIGHT (D). Use three BLACK 1/2" PAN HEAD SCREWS (S7).
å
NOTE: Be sure the edges of the BRACKETS are even with the
long edge of the LEFT UPRIGHT.
å
Turn two PINS (Q1) into the LEFT UPRIGHT (D) as shown.
å
Fasten the LOCK (N1) to the LEFT UPRIGHT (D). Use two BLACK
5/8" PAN HEAD SCREWS (S5). Then push a LOCK COVER (O1)
over the LOCK (N1) from the opposite surface.
Step 3
Q1
F1
O1
D
T1
(3 used)
BLACK 1/2" PAN HEAD SCREW
(3 used in this step)
S7
Q1
Page 7
www.sauder.com402159
BLACK 5/8" PAN HEAD SCREW
(2 used in this step)
S5
N1
R1
G1
G1
To Next Page
