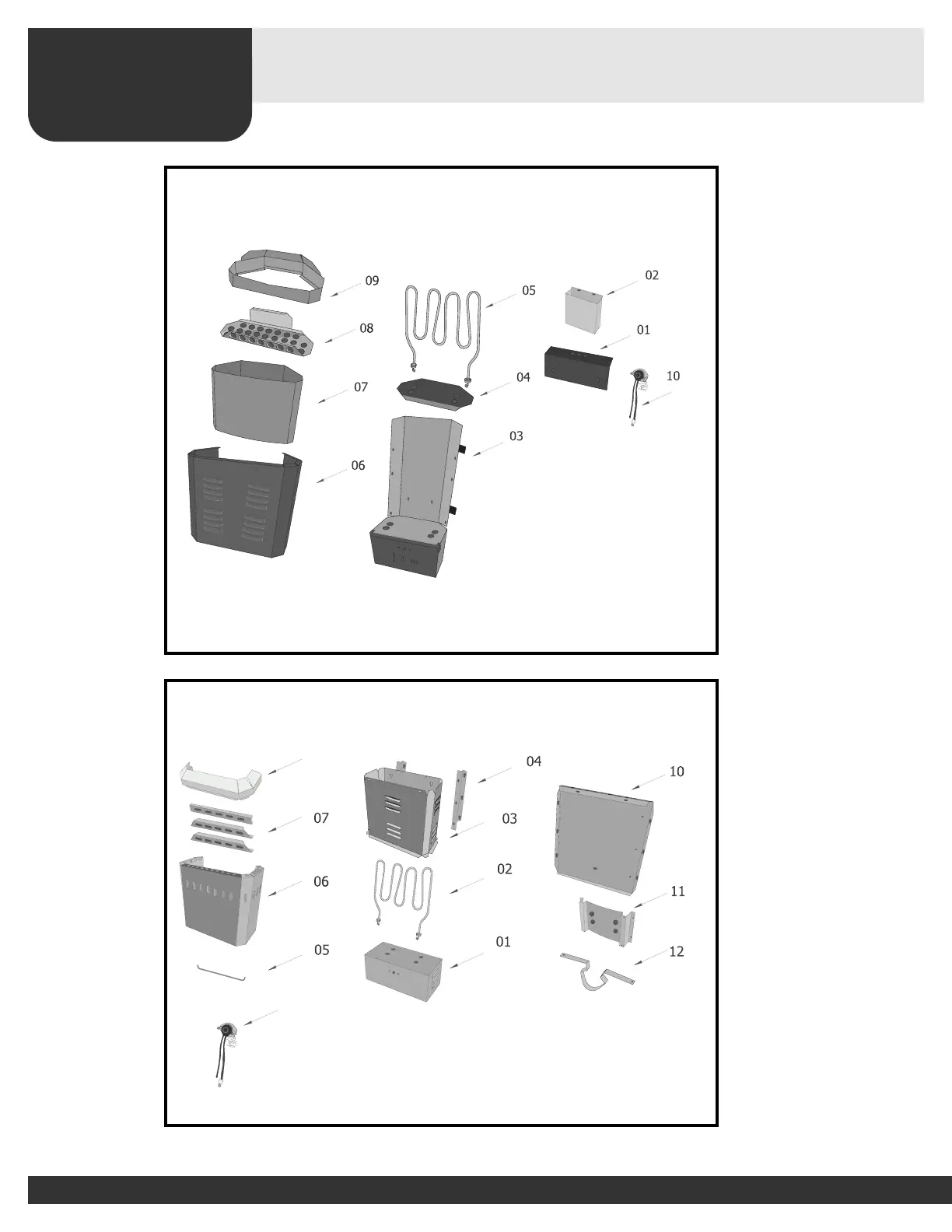

Saunacore Heaters - Unit Components

Ultimate
Sauna Parts
01- Connection Box
02- Industrial Heating
Element
03- Body Heat Shield
04- Mounting Body
Brackets
05- Rock Tray Support Bars
06- Front Body Panel
07- Rock Grill
08- Heat Deflector
09- High Limit Switch
10- Rear Body Panel
11- Lower Heat Shield
12- Floor Support Bar (OPT)
Standard, SE, & SV
01- Bottom Connection Box
Lid
02- S/S Vaporizer Tank
03- Rear Body Panel
w/conn box
04- Lowwer Heat Shield
05- Industrial Heating
Element
06- FrontBody Panel
07- Body Heat Shield
08- Rock Grill
09- Rock Tray
10- High Limit Switch
13 www.saunacore.com
SAUNACORE
08
09
Figure 20
Figure 21
Components
