Mercuri Digital Control
SAUNACORE

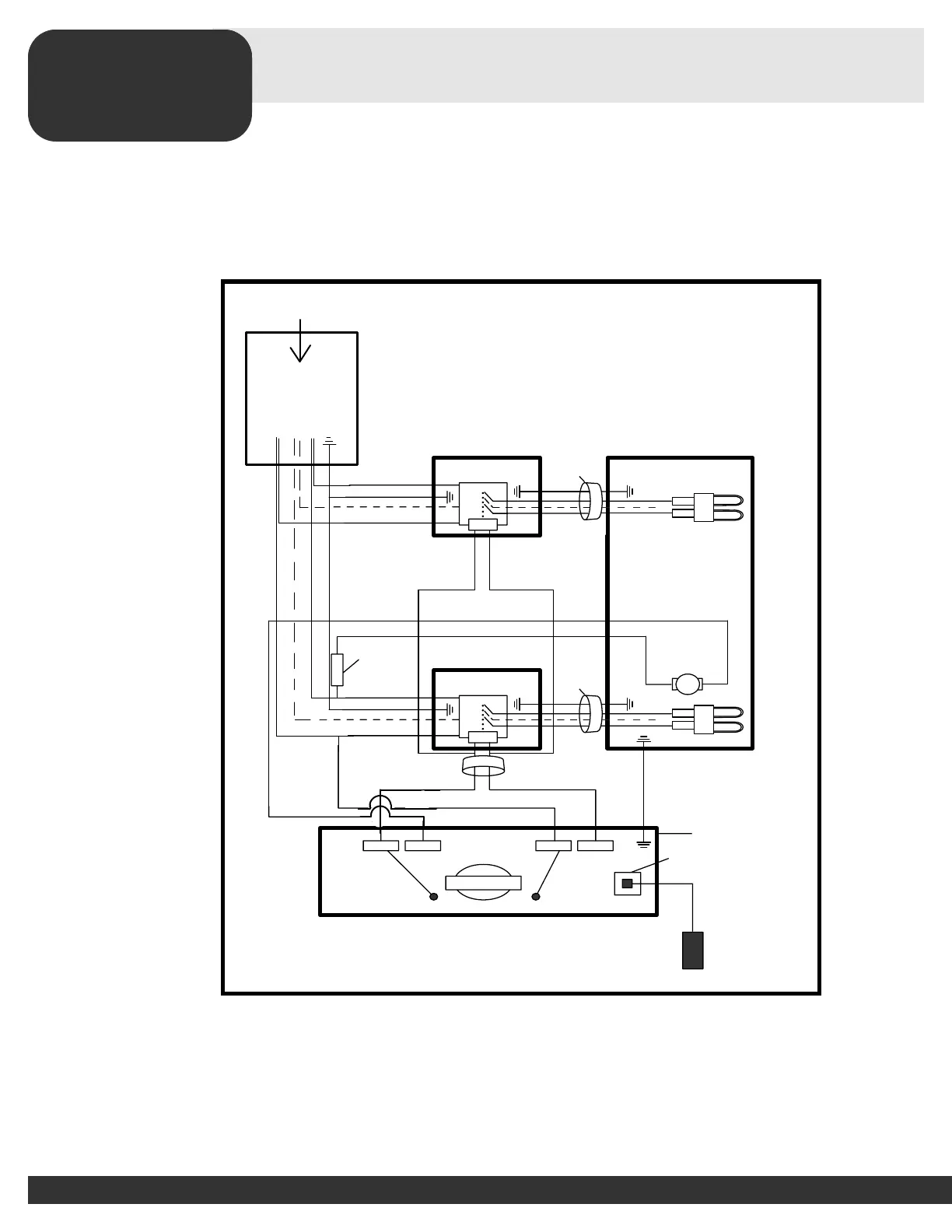

Figure 10
Coil
Electronic Control
(rear view)
1 Amp
240 V
Fuse
(INLINE)
H1 L1 L2 H2
Temperature Plug
Temperature
Sensor
in sauna
(over stove, ceiling
height)
Control
Ground
H.L.
Heater
Conduit
or BX
Ground
Ground
Conduit
or BX
L1
L2
L3
Coil
HEATER
Conduit
or BX
Ground
L1
L2
L3
Mecuri Digital Control
(240v/208v) 1 or 3 Phase 50 Amps and over)
L1 L2L3
Breaker
Panel
Ground
L2
L3
L1
L1
L2
L3
(Main Power Supply)
Mercuri control must be installed outside of the sauna room, into a 3 gang masonry
electrical box. When a magnetic contactor is used, it also must be installed into an
appropriate metal electrical enclosure box outside of the sauna.
For supply connections, use suitable AWG wires suitable for at least 90 C (190 F).
(Use copper wire only). - Ground wire must be insulated.
o
o
CAUTION: THE MANUAL RESET LIMIT SHALL BE WIRED IN THE CIRCUIT.
(applies to Canadian application)
Terminal Connection
Block
