Saunier Duval THEMACLASSIC C 25 E - Installation - Flue Ducting (Horizontal Concentric); Horizontal System Length and Bend Limits

INSTALLATION
This maximum value is
obtained using
Gasket
a duct with a length (L) of 3.5
m* and a bend.
The obtainable length (L) is
reduced by one meter for each
90° bend (or two at 45°) that
is added.
Use only original saunier duval kits and accessories (UNI-CIG 7129 standards)
Install the
fumes
diaphragm,
supplied with
the gasket
bag, in cases
where this length
(L) of
the exhaust
duct is less
than 0.5 m.

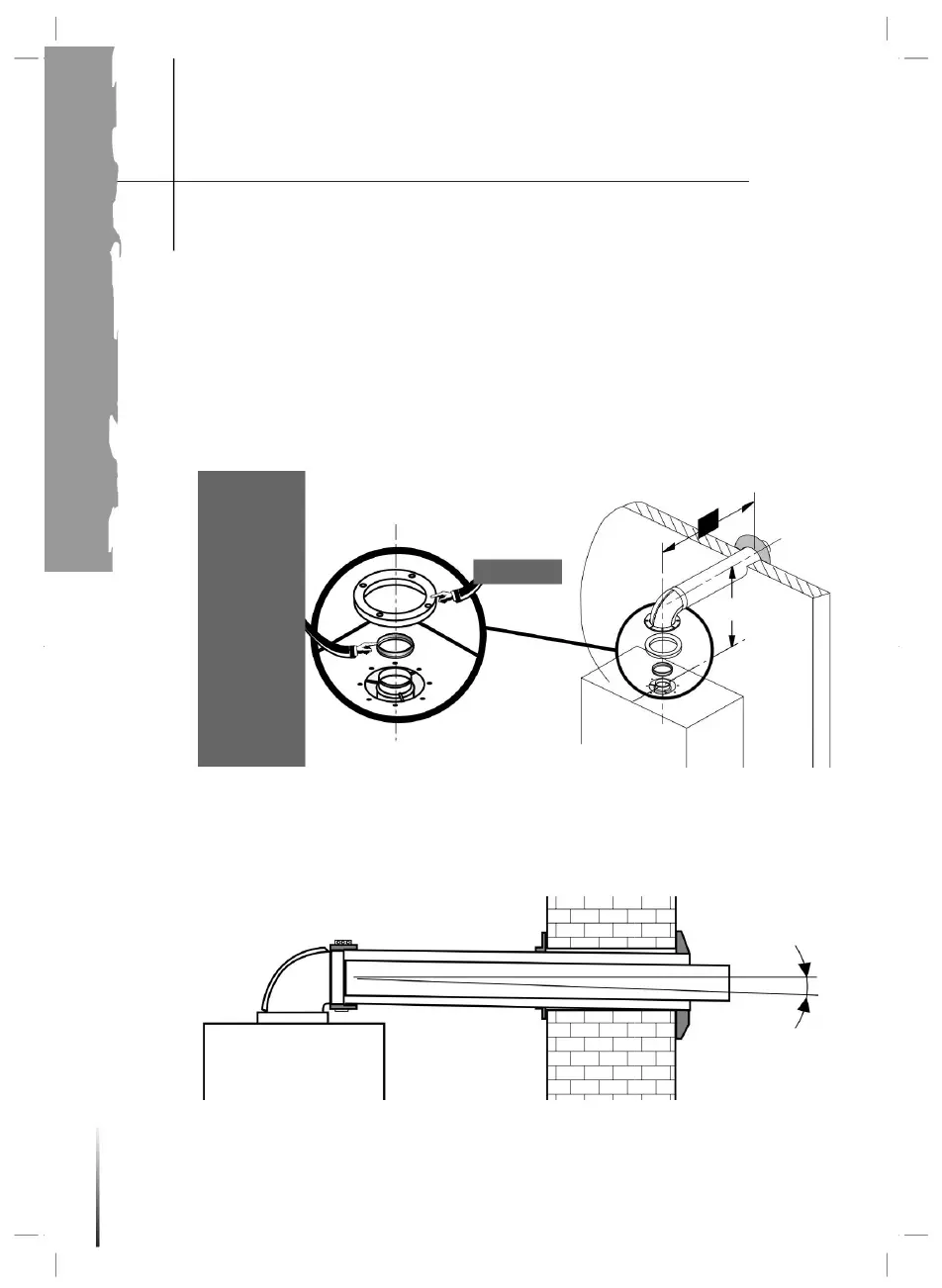

Horizontal concentric
system (Ø 60/100 mm)
20
L
1 %
Installation of the
flue duct/air inlet for Themaclassic F
64
