Savannah Heating BCF36 - Minimum Clearances & Non Combustible Material Requirements

Page 20 of 68
3.3.1 MINIMUM CLEARANCES / DÉGAGEMENTS

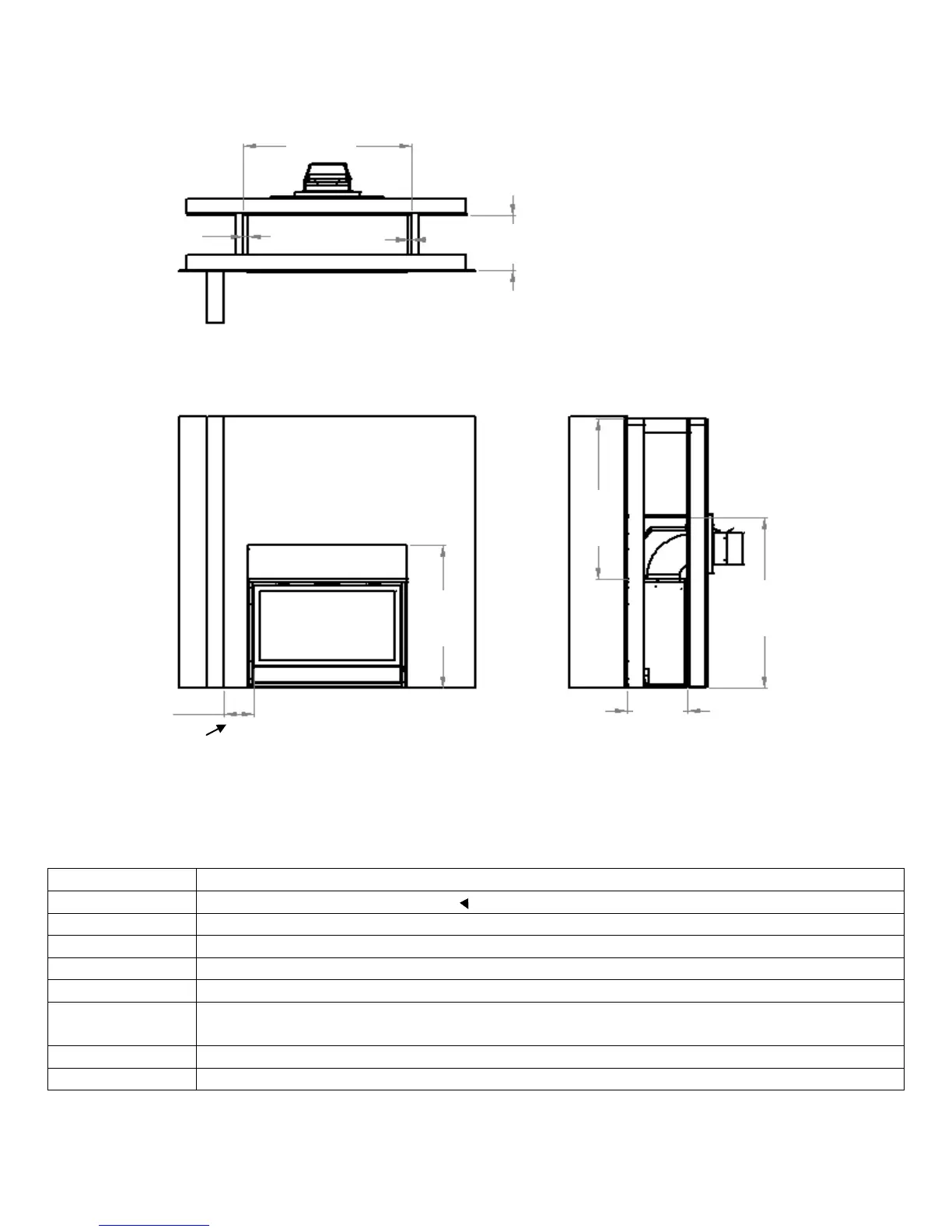

MINIMUM CLEARANCES TO COMBUSTIBLES
A = 42”
TO INTERNAL CEILING
B = 1”
TO INTERNAL SIDE COMBUSTIBLES (0” TO STANDOFFS)
C = 13”
TO BACK WALL FROM FRONT OF UNIT (0” TO STANDOFFS)
D = 6”
TO SIDE WALL
E = 32.5”
FROM BOTTOM OF FIREPLACE TO COMBUSTIBLE MATERIAL
F=36”
MINIMUM CEILING HEIGHT FROM TOP OF UNIT
G=42”
MINIMUM FROM BOTTOM OF FIREPLACE TO MANTLE
(SEE DIAGRAM NEXT PAGE)
H=0”
BASE OF UNIT TO FLOOR
0.5”
REAR OF FIREPLACE TO BACK WALL
D
C
13.00”
A
42.000”
C
13.00”
6.00”
F
36.00”
36.00”
B 1.00”
B 1.00”
E
32.50”
