Copyright © 2018 Savant Systems, LLCEntry Service with 2N Door Stations Deployment Guide
009-1540-00 | 181026
11 of 29
4.5. Power Connection

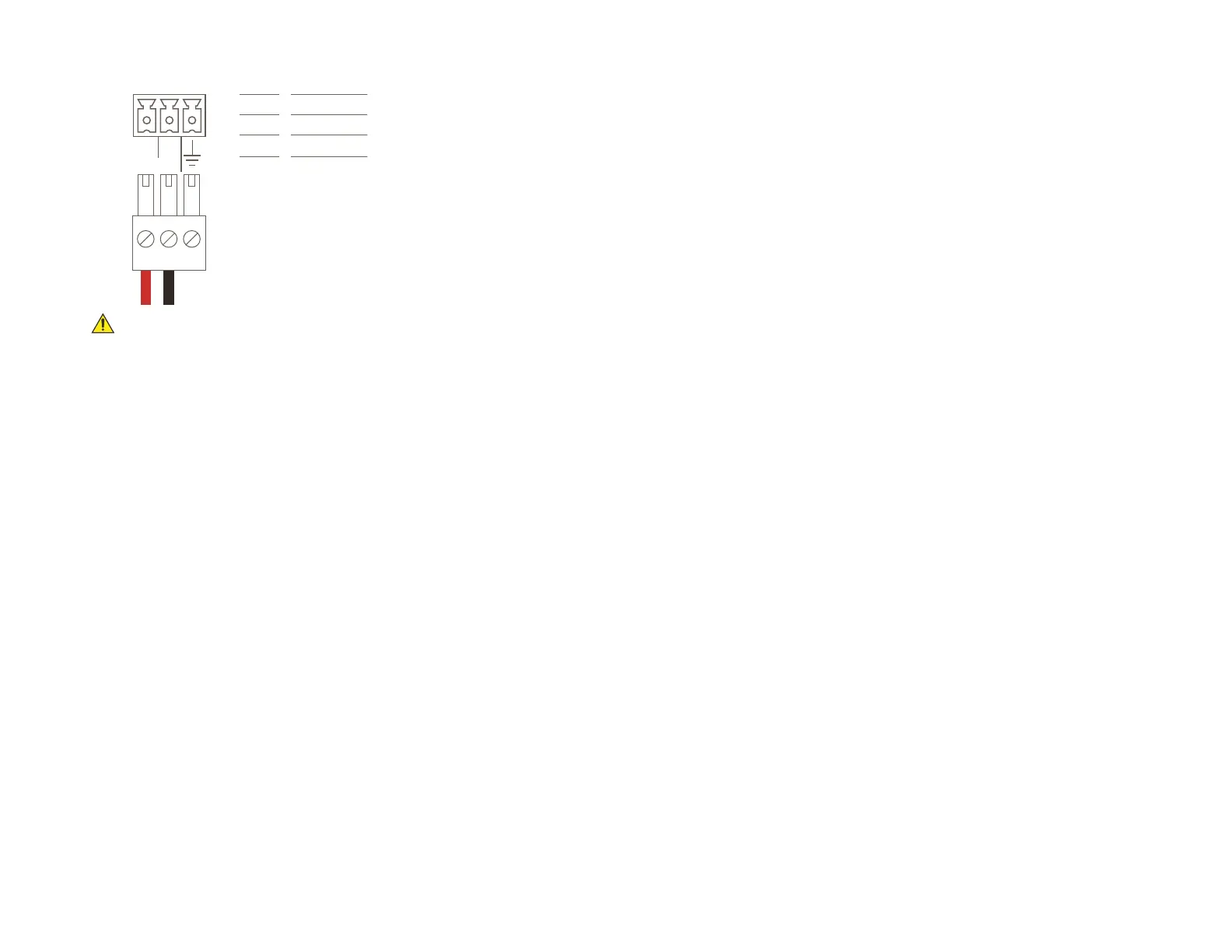

Savant strongly recommends using PoE. If PoE is not available a 12V 2A external power supply can be used.
32
1
Pin 1
Pin 2
Pin 3
Positive
Ground
Negative
+
-
12V/2A
IMPORTANT! The diagram above show the wiring for the Door Station and the Heavy Gate Station. On the Single Height Door Station the wiring order
is reversed, having the Negative terminal on the left side.
