Copyright © 2018 Savant Systems, LLCEntry Service with 2N Door Stations Deployment Guide
009-1540-00 | 181026
7 of 29
Speaker Audio Output.
Microphone Audio Input.
IR LED Infrared LED for the night vision camera.
Camera Wide angle IP camera used to view who/what is at the entry.
LED Status
Icons
Door Open: Attached door lock is been opened.
Locked: Zone is locked.
Active Call: An active call is in progress.
Ringing: Displays when I call is being made to the Door Station.
Name Plate
Removable clear plate to place Name/Address information behind with
White Back-light.
Call Button To start a call from the intercom
Module Slot
List of available modules.
– Bluetooth Module (9155046)
– RFID Card Reader 13.56MHz NFC Ready (9155042)
– Touch Display (9155036)
– Keypad Module (9155031/9155031B)
– Tamper Switch (9122038)

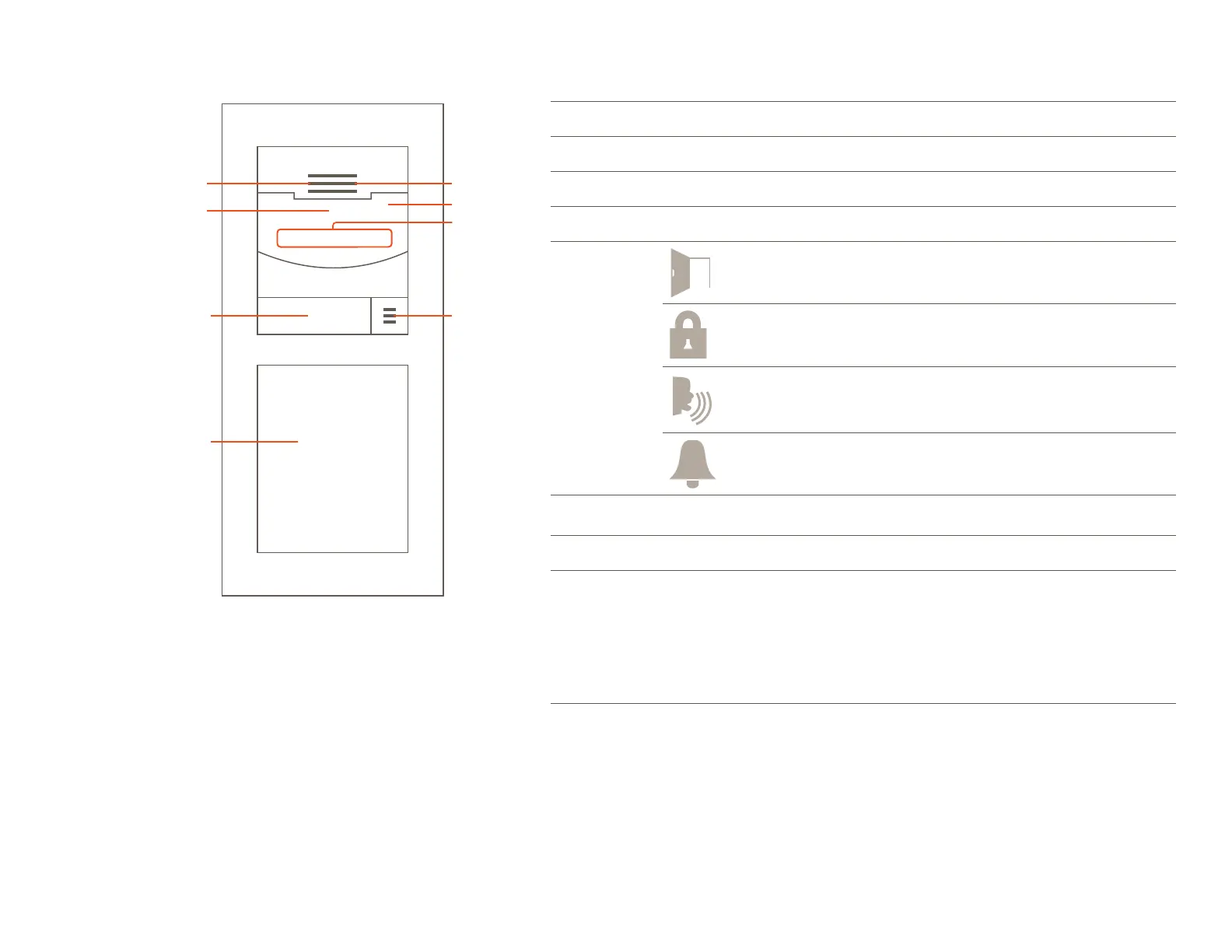

3.4. Door Station (2N IP Verso)
Front Panel
Module Slot
Name Plate
Call Button
Speaker
IR LED
Camera
LED Status
Icons
Microphone
