Savant Pro Audio 4 - Rear Panel

Pro Audio 4 Deployment Guide
Copyright © 2016 Savant Systems, LLC
009-1413-00 | 161024
7 of 26

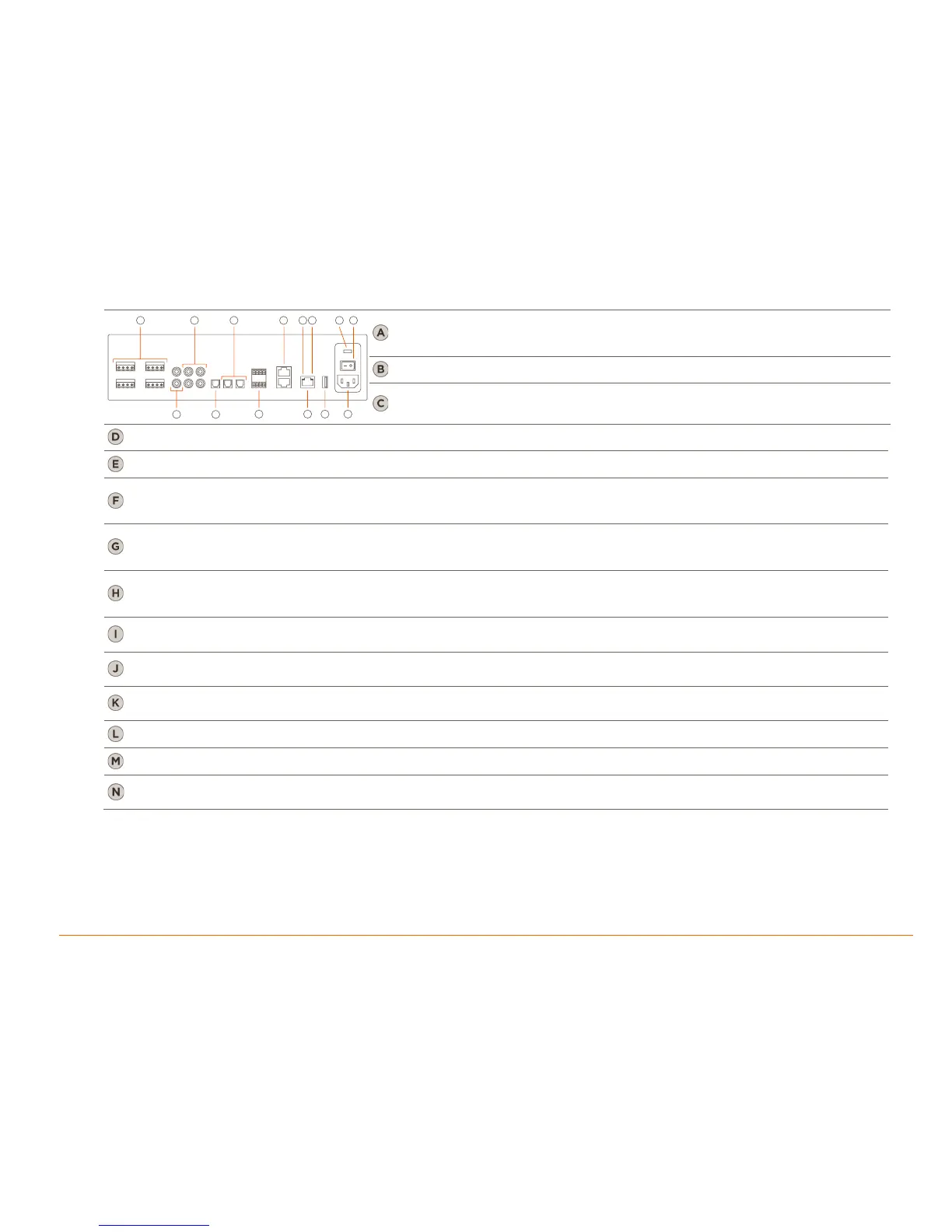

3.3.!Rear Panel
Speaker Connections
(4) Speaker output zones
Uses 4-pin Speaker Connectors
NOTE: Compatible with 8 ohm or 4 ohm speakers.
Analog Preamp Output 
(1) Analog stereo line output (Left & Right)
Analog Inputs
(2) Analog stereo inputs, RCA line-level inputs;
22 kΩ input impedance.
Digital Audio Out
(1) Digital optical preamp output (TOSLINK), line-level 96kHz/24-bit output, fixed volume.
Digital Audio In
(2) Digital optical audio inputs (TOSLINK). Supports up to 96kHz/24-bit digital audio in; PCM stereo format only.
IR
(4) IR Ports
Uses 4-pin IR Connectors to send IR signals to control devices with an IR input or IR receiver via an IR flasher (5V tolerant
only). See IR Wiring section for important precautions regarding IR functionality before making any connections.
RS-232
(2) RS-232 Ports
8-pin RJ-45 port used to transmit and receive serial binary data to and from serial controllable devices.
CTS/RTS handshaking availability based on component profile. See RS-232 Connections section for pin-outs.
Ethernet
8-pin RJ-45 female.
10/100/1000 Base-T auto-negotiating port with Link/Activity LEDs
Supports Audio Video Bridging (AVB)
Ethernet Activity LED
Green Blinking: Activity (Rx/Tx)
Off: No Activity
Ethernet Link LED
Green Solid: Ethernet Link is established
Off: Ethernet link is not established
USB
USB 2.0 Type A
(Reserved for future Use)
Fuse
250V 3A Slow Blow fuse field replaceable.
Power Input
100/240V 50/60 Hz 2.7A
I/O (power switch)
I (On): Powers On the controller.
O (Off): Powers Off the controller.
N
A
EC
B D
F
I JG L
H K M
