Infinity and Infinity HD Planning Guide Part No. 000783, 24-m09-2015

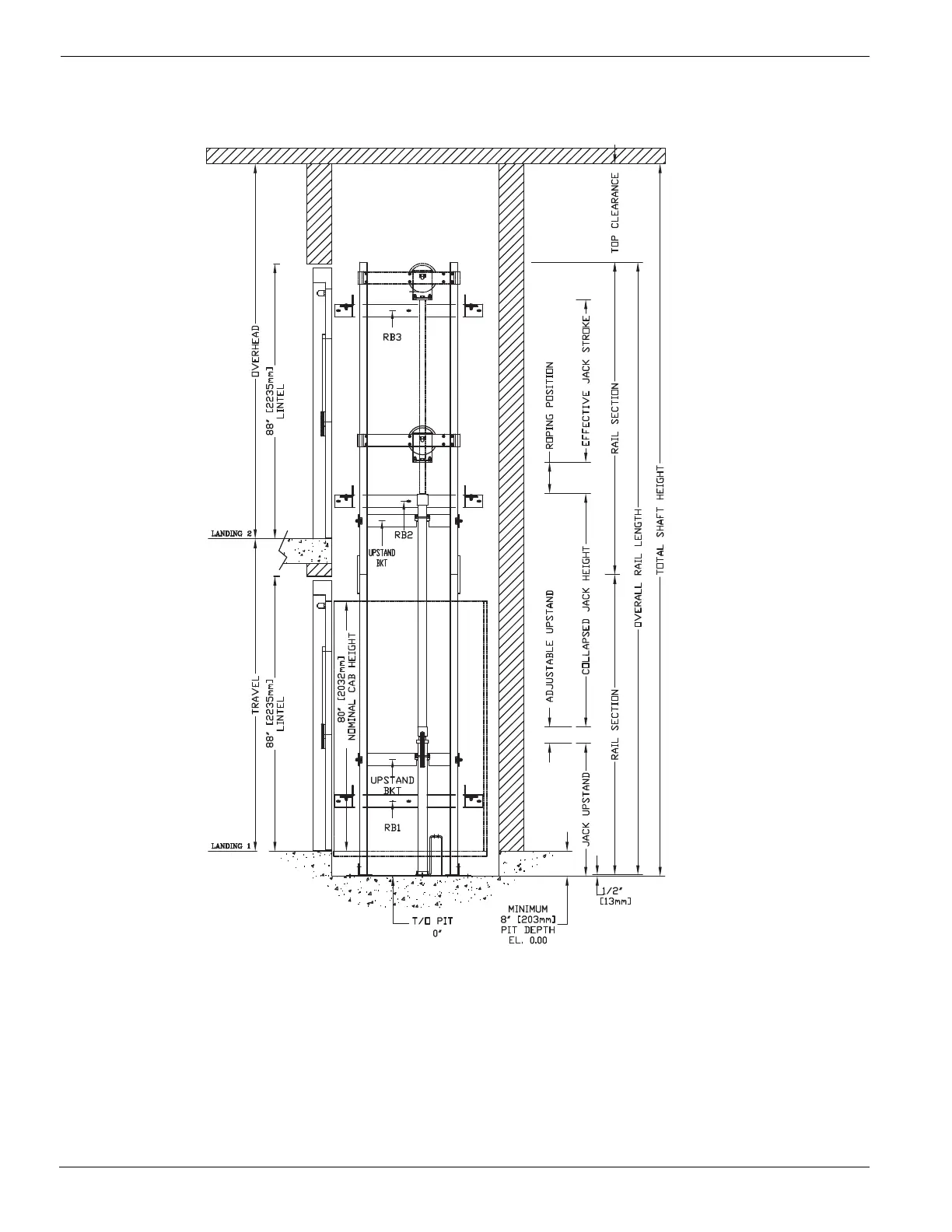

Elevation view – Infinity 7-
4OPRAILBRACKET2"ATTOPOFHOISTWAYCONSULTYOUR3AVARIAREPRESENTATIVEFOREXACTLOCATION
)NTERMEDIATERAILBRACKET2"INMMINTERVALSABOVEBOTTOMBRACKET
"OTTOMRAILBRACKET2"INMMABOVEPITFLOOR
IMPORTANT: Always refer to your plan drawings for dimensions specific to your site.
For Infinity with Auto Slim Doors, DO NOT use the above drawing; refer to Appendix A instead.
