Savaria Infinity - Pit Details; Hoistway and Pit Notes

33
Part No. 000783, 24-m09-2015 Infinity and Infinity HD Planning Guide

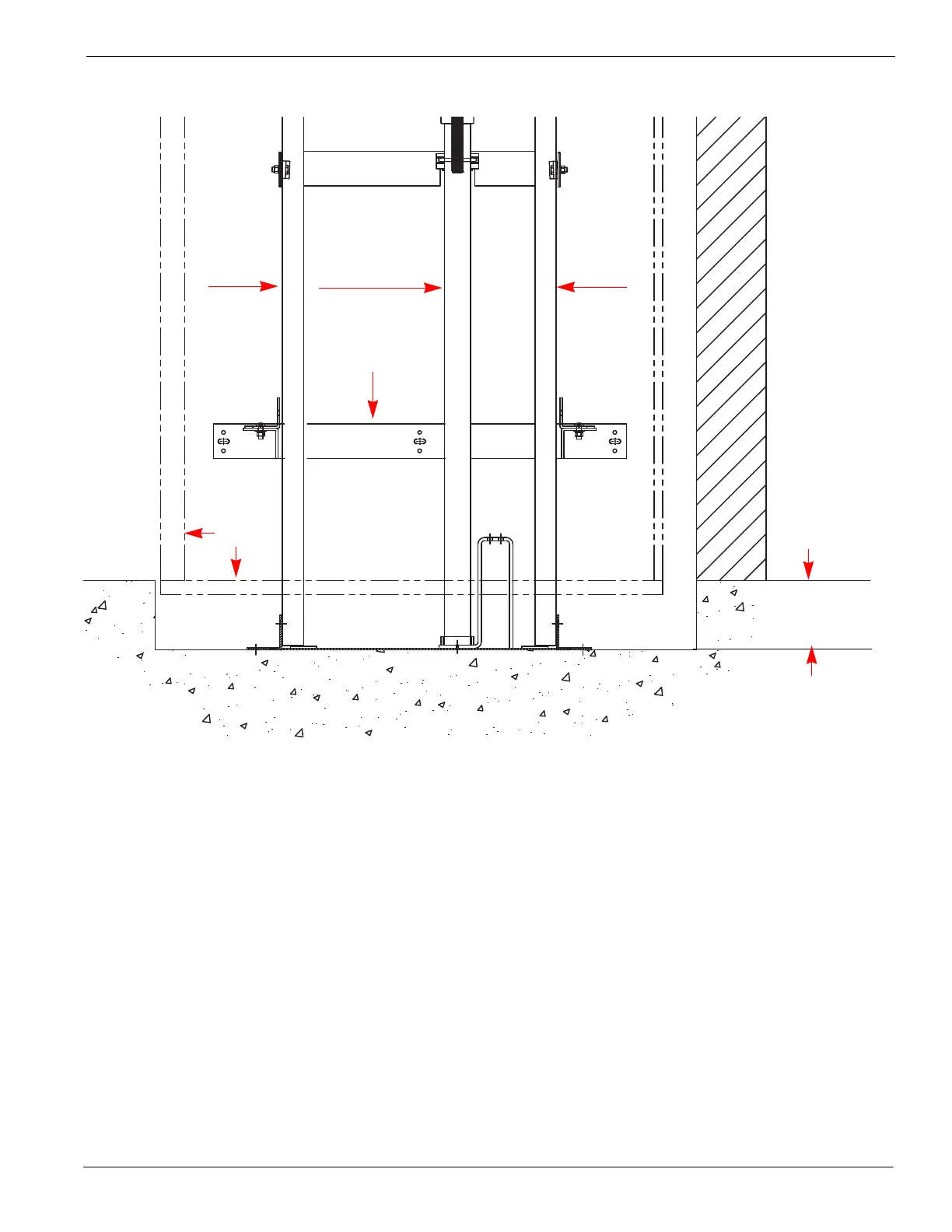

Pit details 42-
Hoistway and pit notes
• A load bearing wall is required to sustain rail reactions (refer to the section “Loads on building”
on the previous page).
• Suggested hoistway pit floor construction consists of an 8” (203 mm) concrete slab poured on
a natural or compacted soil with a minimum allowable bearing pressure of 1.0 KSF.
• The minimum compressive strength of the concrete at 28 days must be no less than 3000 PSI.
#5 reinforcing steel (grade 60) must be placed at the bottom of the slab in two traverse
directions and at a spacing of 12” (305 mm).
• Hoistway pit floor to support a load (including impact) of 5.6 kips (5600 lb/24.9 kN) for Infinity
or 8.22 kips (8220 lb/36.6 kN) for Infinity HD.
• Minimum overhead clearance of 92” (2337 mm) for 80” (2032 mm) cab, 96” (2438 mm) for 84”
cab, and 108” (2743 mm) for 96” cab.
• Minimum pit depth of 8” (203 mm) for Infinity and 12” (305 mm) for Infinity HD.
• Hoistway sizes reflect running and access clearances only. Consult your local AHJ to assure
compliance with local codes.
• Hoistway is required to be free of all pipes, wiring and obstructions not related to the operation
of the elevator.
Cab
Pit
Guide rails
Rail bracket
Guide rails
Upstand post for
hydraulic jack
8” (203 mm) or
min. pit depth
12” (305 mm)
