Part No. 000783, 24-m09-2015 Infinity and Infinity HD Planning Guide

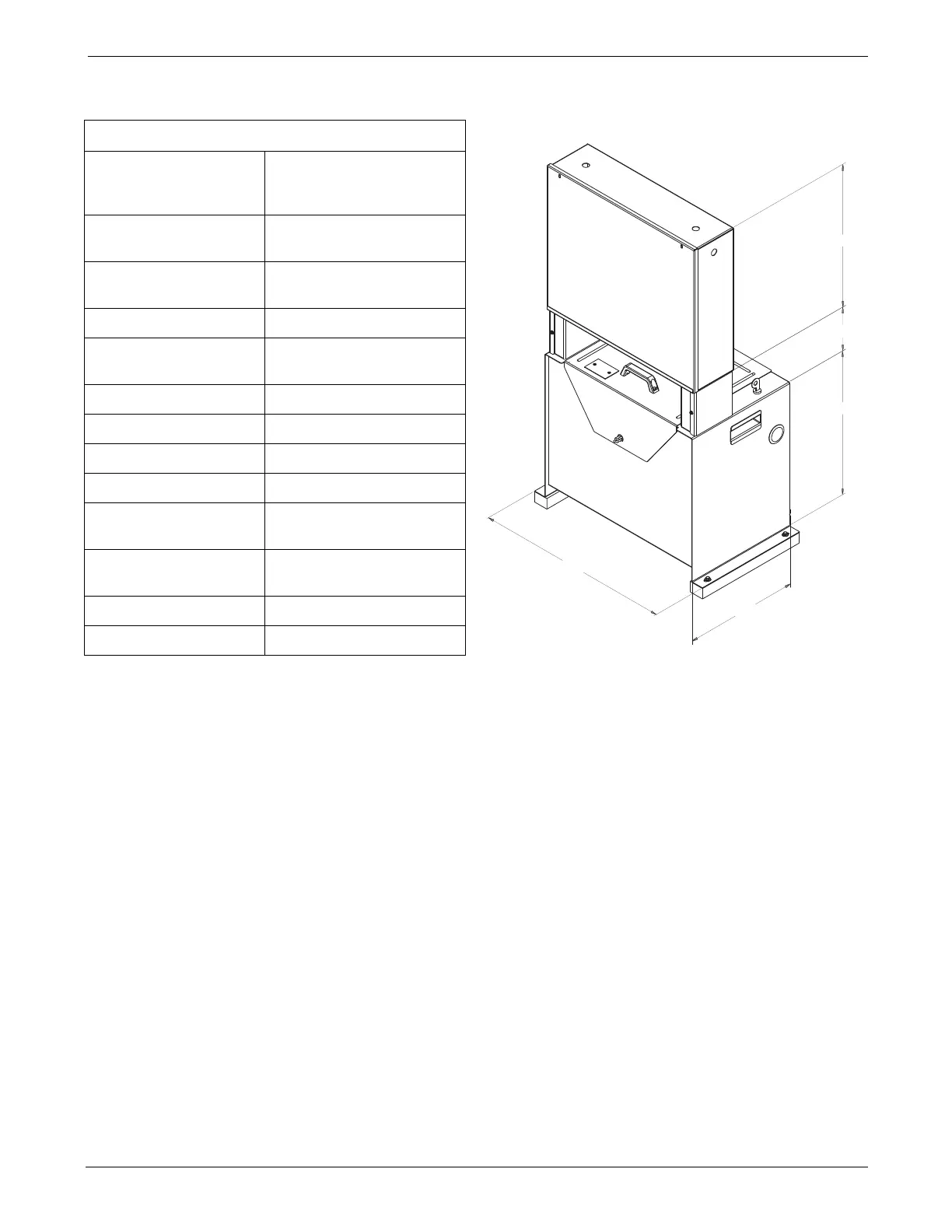

Controller tank specifications 6-
Controller tank features
• Hydraulic hose connection port on both sides of the
tank
• Built-in handles on both sides of the tank
• Isolation mounting of pump motor valve assembly
minimizes operating issues
Controller tank specifications
Dimensions
Height: 47” (1194 mm)
Width: 28” (711 mm) 
Depth: 17” (432 mm)
Minimum required
clearance
39.37” (1000 mm)
Valve and manual lowering
handle location
Inside tank
Rupture valve test T-fitting factory installed
Tank to controller wiring
Quick connect valve and motor
wiring
Controller layout Relay board
Keyed lock to tank Yes
Machine room required No (with local jurisdiction approval)
Tank capacity (gal/ltr) 15-16.5 gal/57-63 ltr
Maximum dry weight
(lb/kg)
147 lb/55 kg
Maximum filled weight
(lb/kg)
312 lb/117 kg
Operating environment 50°F - 120°F /10°C - 49°C
Operating volume 57 dBA
"72.02
"12.6
"93.02
"05.72
"51.61
