13
Part No. 000783, 24-m09-2015 Infinity and Infinity HD Planning Guide

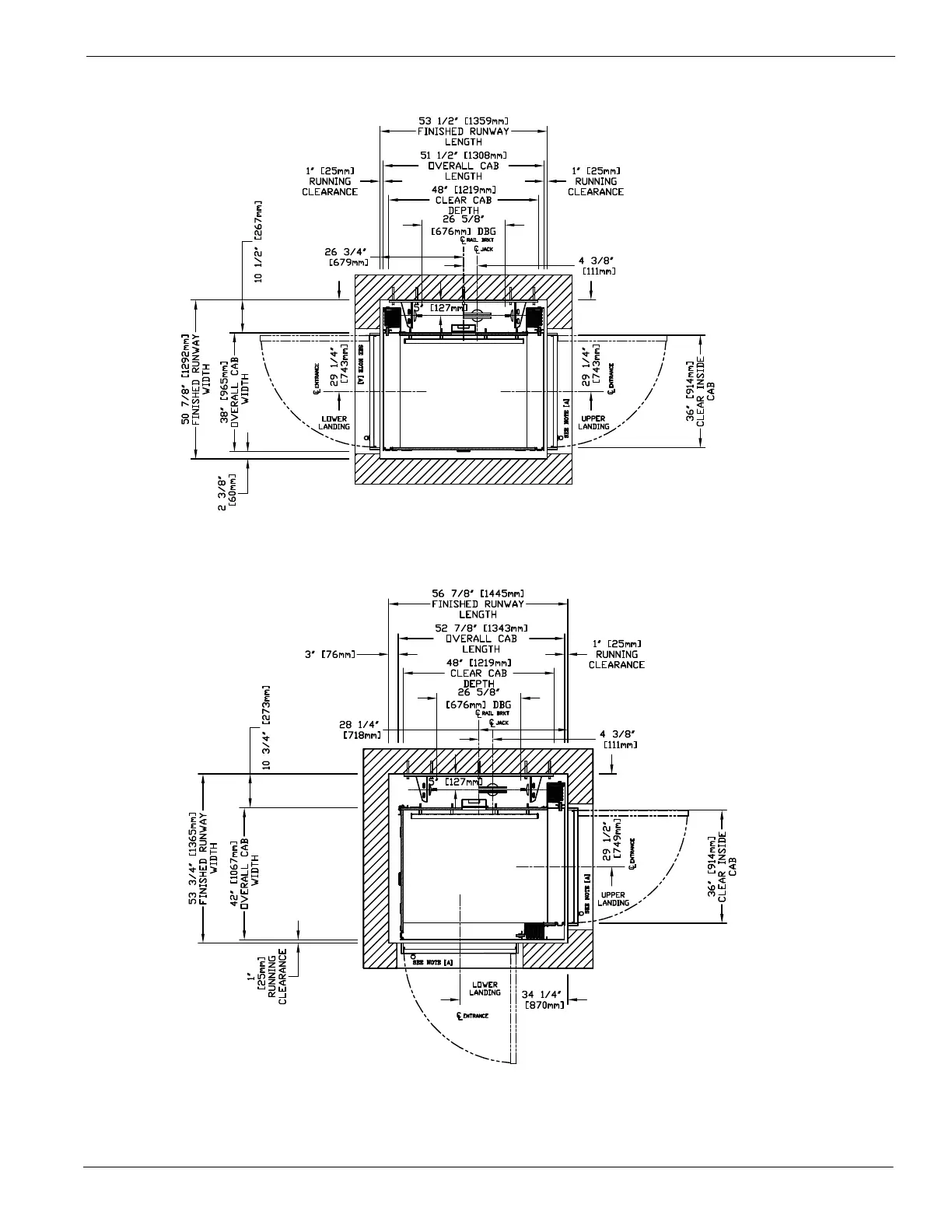

Plan view – Infinity 36” x 48” type 2 11-
Plan view – Infinity 36” x 48” type 3 12-
IMPORTANT: Always refer to your plan drawings for dimensions specific to your site.
For Infinity with Auto Slim Doors, DO NOT use the above drawings; refer to Appendix A instead.
