TSG-FDC OWNER’S MANUAL

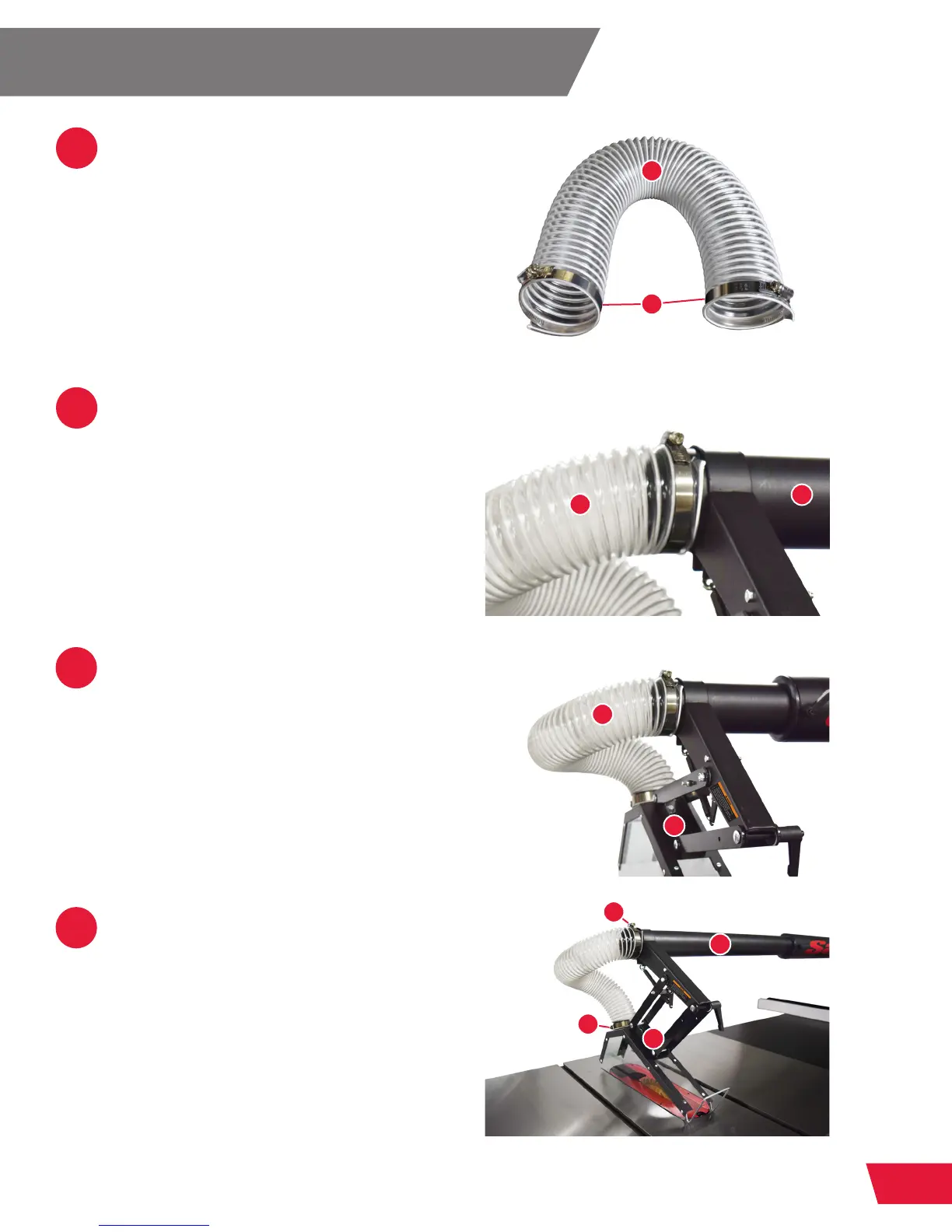

Attaching the Dust Collection Hose to the
Dust Tube and the Floating Blade Guard
1
2
Slide a hose clamp (W) just over
each end of the dust collection
hose (G).
Slide one end of the dust hose
(G) over the end of the inner dust
tube (E), making sure that the hose
clamp is about 1/4” to 1/2” inset
from the end of the dust tube.
3
4
Slide the other end of the dust hose
(G) onto the oating blade guard
(F), making sure the hose clamp is
about 1/4” to 1/2” over the edge of
the oating blade guard 4” port.
Using a screwdriver, tighten the hose
clamps (W) to secure the dust hose
to the inner dust tube (E) and the
oating blade guard (F).
W
E
F
G
G
G
E
F
W
W
