SawStop TSG-FDC - Attaching Leg Support Brackets to Extension Table

11
TSG-FDC OWNER’S MANUAL
3
1

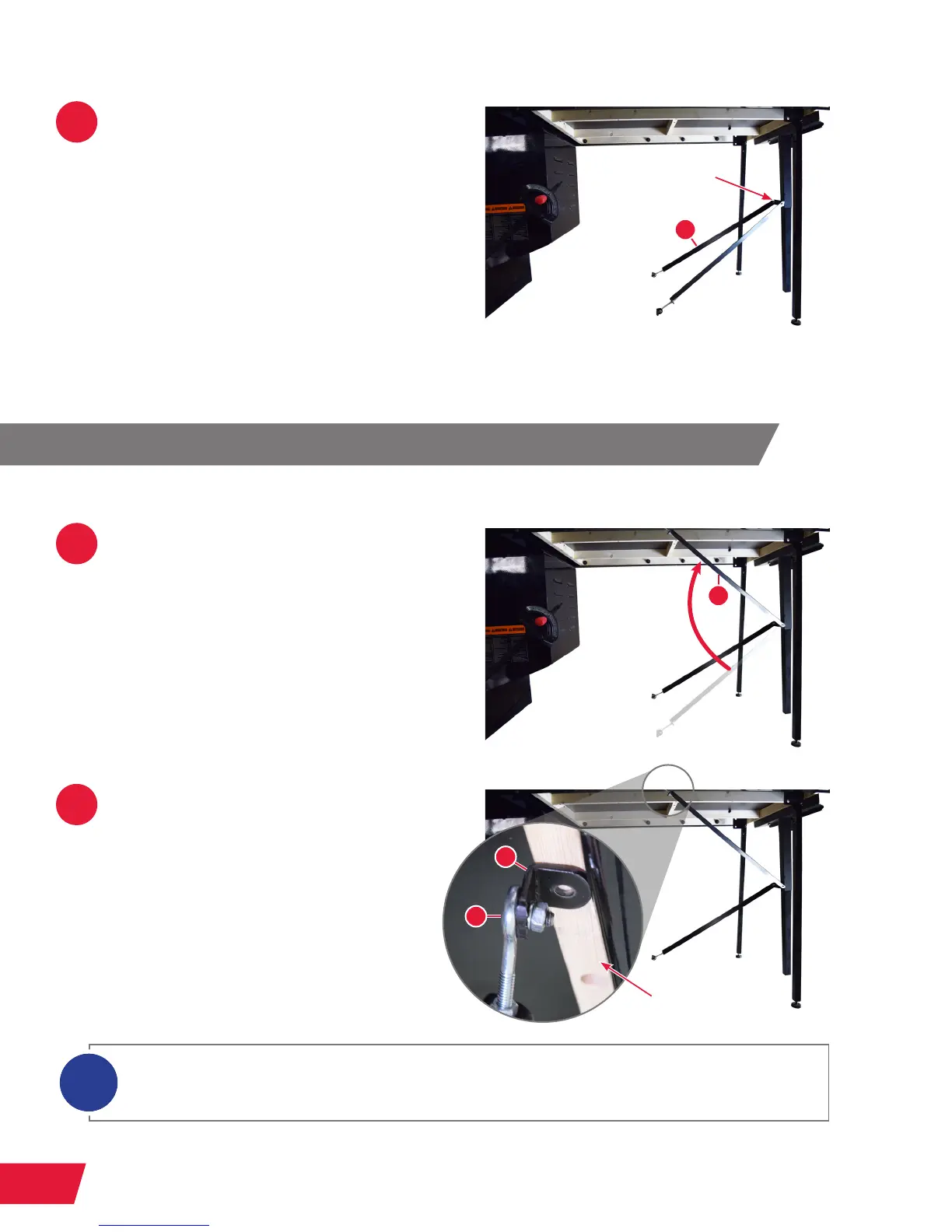

Repeat steps 1-2 to attach the
other leg support bracket (C) to the
exterior side of the rear tab, making
sure the bent sections of the leg
support bracket and the leg support
mounting bracket face out toward
the rear of the saw. Only nger-
tighten the nut at this time.
Pivot the bent end (with the eye bolt
assembly) of the front leg support
bracket (C) up toward the underside
of the wooden extension table
support frame.
Attaching the Leg Support Brackets to the Extension Table
2
Rotate the leg support mounting
bracket (O) and/or eye bolt (N)
until the at side of the leg support
mounting bracket is ush with the
outer portion of the extension table
support frame.
The point of contact between the leg support mounting bracket and the extension table can be
adjusted by loosening the nuts on the eye bolt, moving it in or out relative to the leg support
bracket, and then re-tightening the nuts.
i
REAR TAB
C
C
O
N
EXTENSION TABLE
SUPPORT FRAME
