SawStop TSG-FDC - Floating Blade Guard Positioning

21
TSG-FDC OWNER’S MANUAL
2
1
2

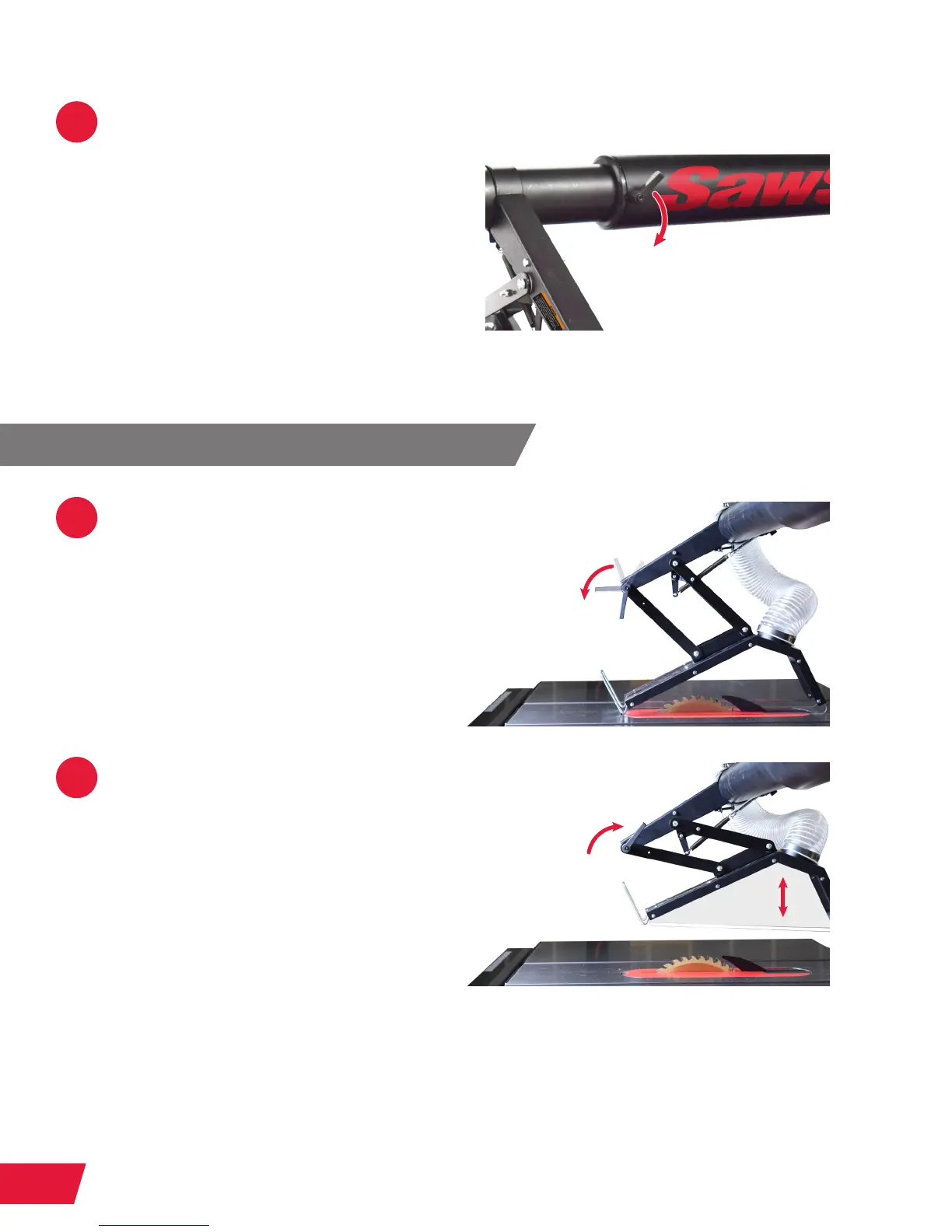

Tighten the inner dust tube
lock knob by turning the handle
clockwise. Do not over-tighten the
inner dust tube lock knob.
The oating guard lock handle
can be used to secure the oating
blade guard and prevent vertical
movement.
Loosen the lock handle by rotating it
in a counter-clockwise direction.
Move the oating blade guard up
or down to the desired position
and then tighten the lock handle by
rotating it in a clockwise direction.
Adjusting the Floating Blade Guard
Note: Pull out the lock
handle to adjust the
positioning.
