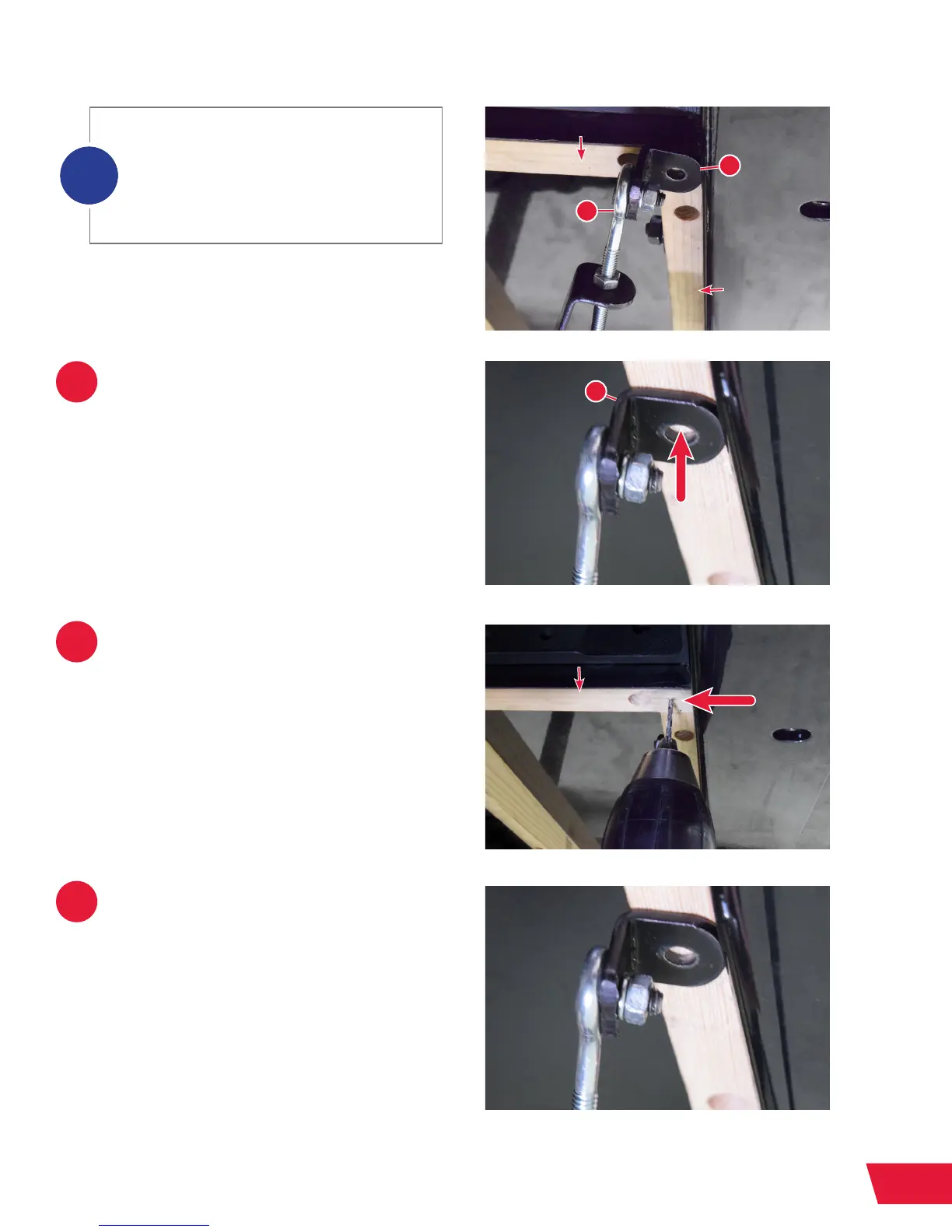

Make a mark on the underside of
the extension table support frame
in the center of the hole of the leg
support mounting bracket (O).
4
5
Pivot the leg support bracket back
down to rest on the oor. Drill a pilot
hole in the location you marked in
step 3 with a 7/64” drill bit.
Be sure to drill into the cross
support frame if you have a 36”
extension table.
Pivot the leg support bracket and
attached components up again
and align the leg support mounting
bracket hole with your drilled
pilot hole.
If you have a 36” extension table, rotate
the leg support mounting bracket (O) and/
or eye bolt (N) until the at side of the leg
support mounting bracket is ush with
the cross support frame of the
extension table.
i
EXTENSION TABLE
SUPPORT FRAME
EXTENSION TABLE
CROSS SUPPORT FRAME
EXTENSION TABLE
CROSS SUPPORT FRAME
O
O
N
