TSG-FDC OWNER’S MANUAL
6

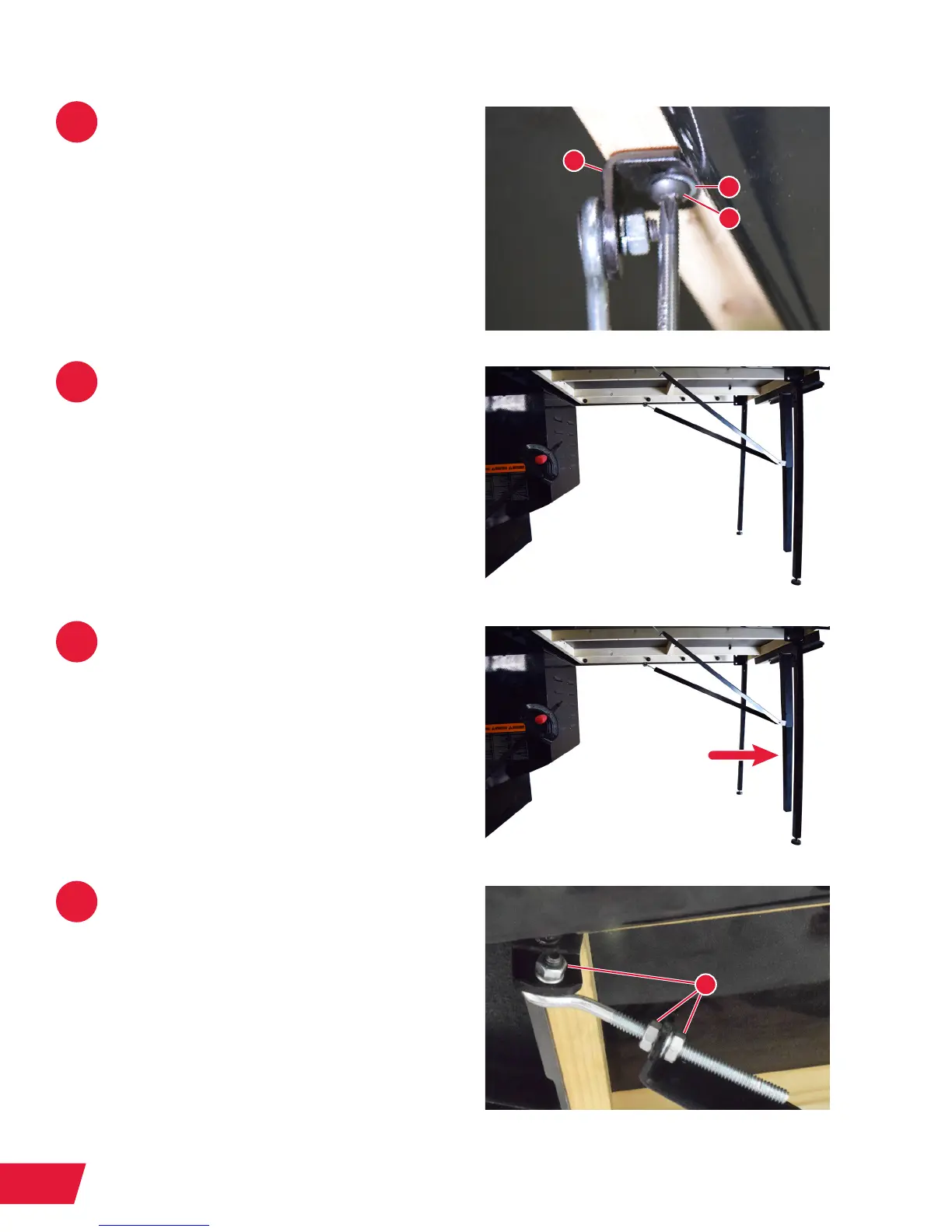

Insert a M5 x 2.1 x 32 button head
phillips screw (S) through a
M5 x 12 x 1 washer (R) and then
through the exposed hole in the
leg support mounting bracket (O).
Secure the bracket to the underside
of the extension table support frame
using a Phillips screwdriver or drill.
7
8
Repeat steps 1-6 for the rear leg
support mounting bracket.
Check to make sure the extension
leg is still vertical and make any
necessary adjustments.
9
Use a 7/16” wrench to tighten the
six 1/4”-20 nuts (V) on the eye bolts
for the front and rear leg support
mounting brackets.
O
S
R
V
