Hardware manual PCD1.M2220-C15 │ Document 27-640 – Version ENG03 │ 2020-03-25
Saia-Burgess Controls AG Communication interfaces
5
5-3

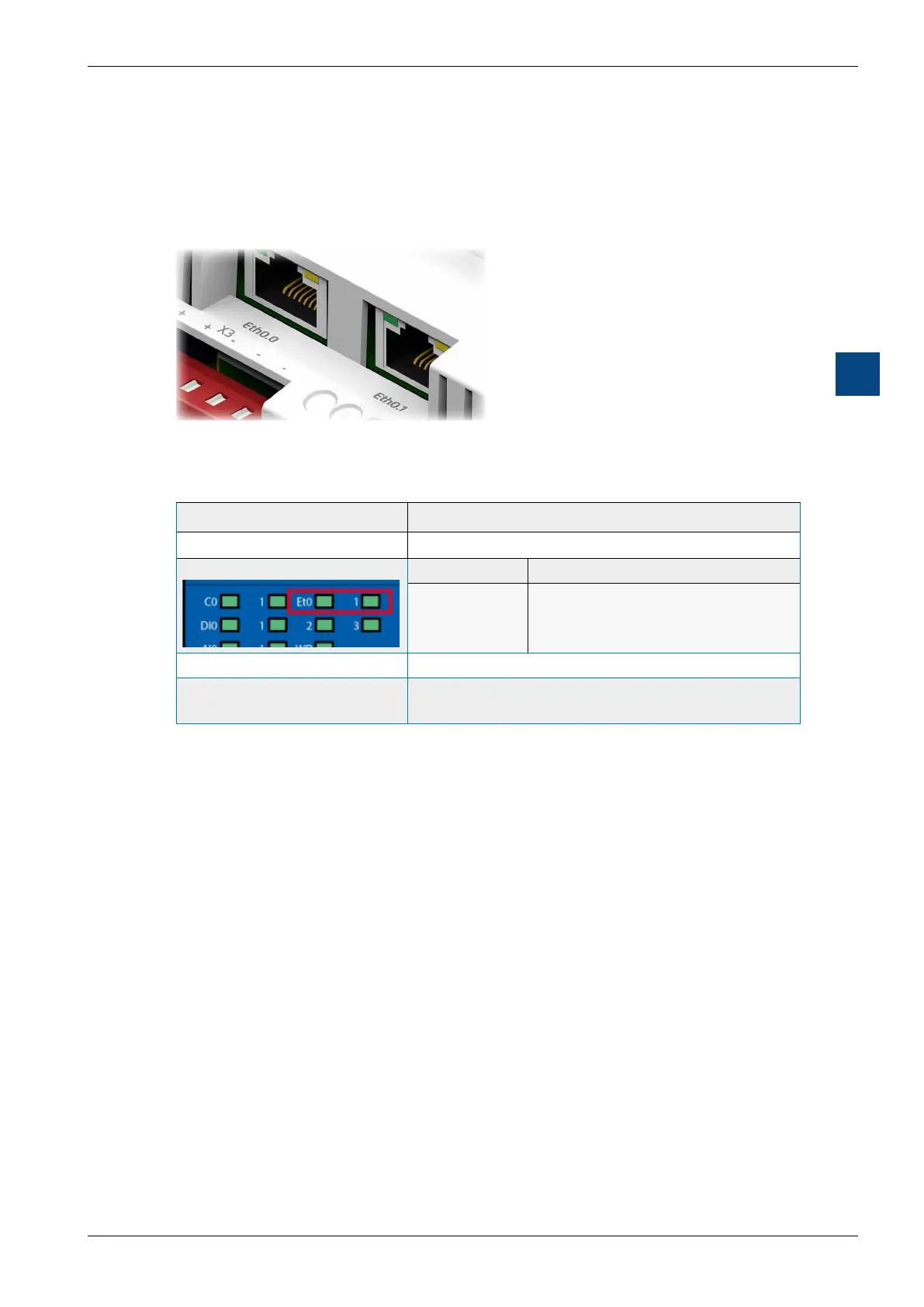

On-board | Ethernet (Port #9)
5.2.2 Ethernet (Eth0.0/Eth0.1) port #9
For the Ethernet connection, a 10/100 Mbits switch is used that automatically adapts
both speeds. Both sockets with the same Ethernet address can be used independently
of each other with respect to the speed.
Eth0.0 Eth0.1
Function 2 port switch
Socket type RJ45, metal housing, 2 LEDs each
LED Et0 and Et1 LED orange Link (connection) and activity
LED green Speed
o = 10 Mbits / On = 100 Mbits
Port 9
Cabling Standard Ethernet cable (e.g. Cat 5e) uncrossed
and crossed are supported.
To Next Page
