CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 32 -
9-1. UV SHADING

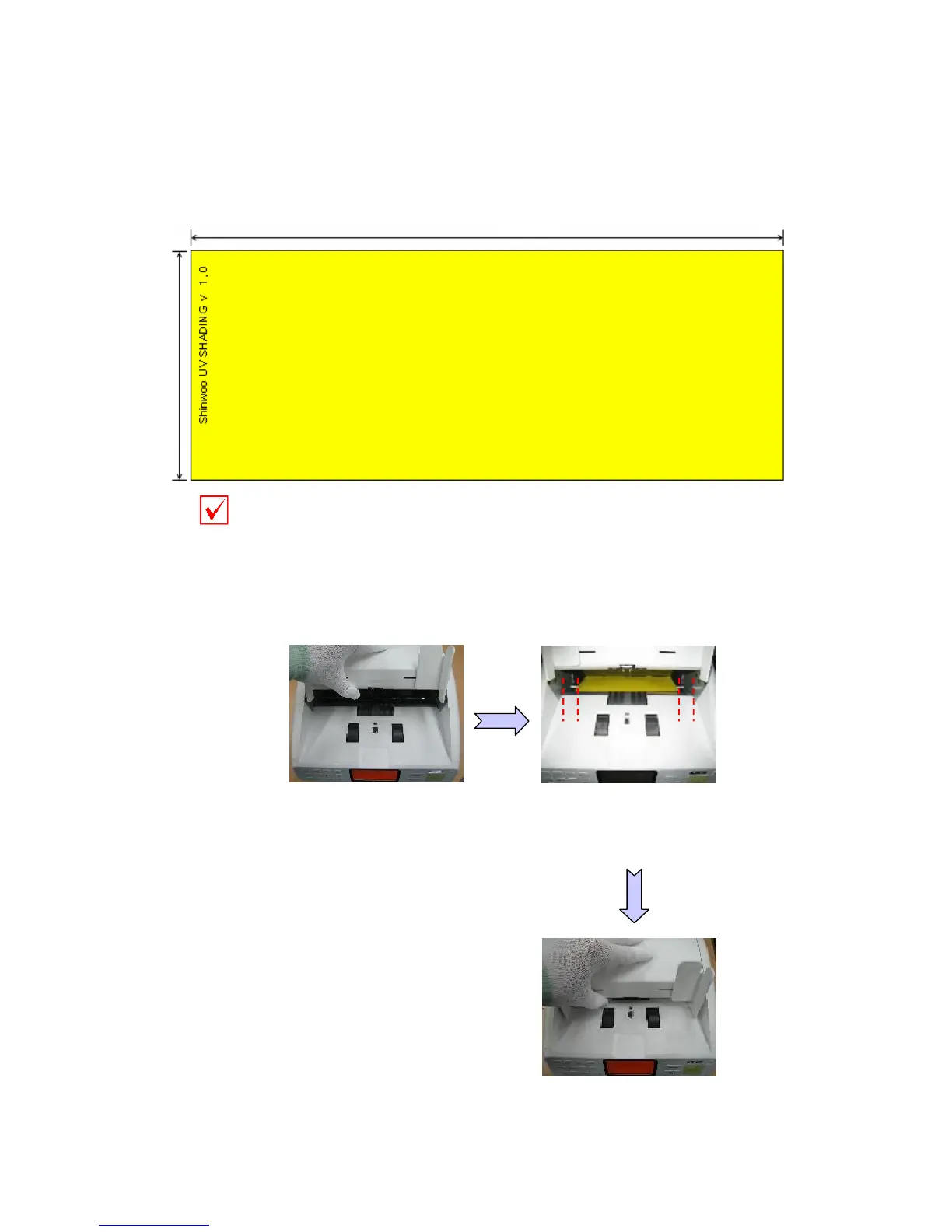

<UV SHADING SHEET : SHINWOO UV SHADING V1.0>
Shading sheet provided from SBM should be used.
Shading sheet provided from SBM should be used.
Before UV shading, put UV shading sheet inside Front cover as the below image.
Open Front Cover and brush
the dust
Place UV SHADING SHEET in
the middle of Hopper like the
picture.
Close Front Cover.
165 mm
75 mm
Shading sheet provided from SBM should be used.
