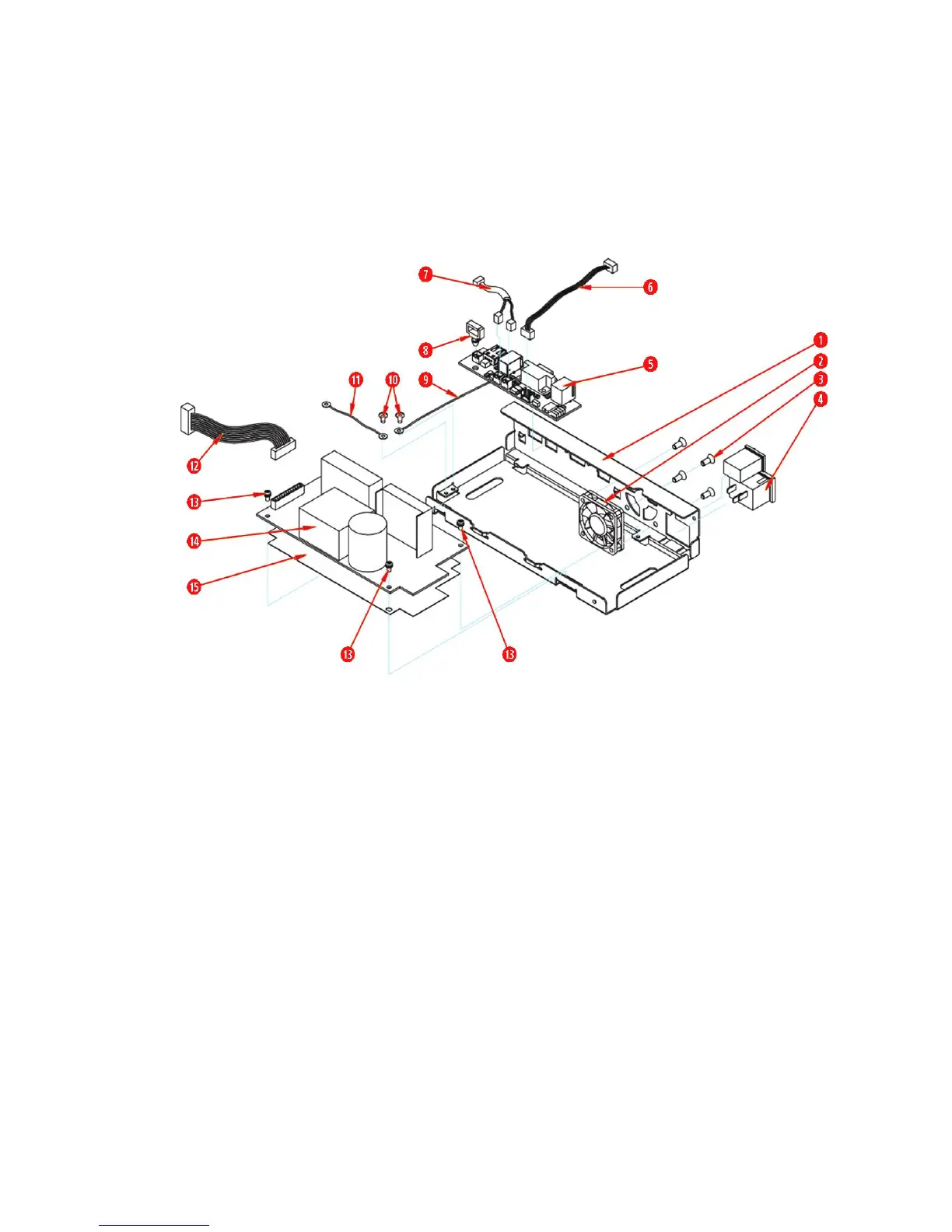

13-20. Bkt SMPS Bottom
1 BKT_SMPS_BOTTOM
2 COOLING_FAN_40X40(t=10mm) (W/ SHP-24 Harness)
3 SCREW_T/P_FH_M4x10_Fe_Ni
4 SHP-23 3P (AC INLET)
5 P-IF_V1.3
6 SHP-20 8P (MAIN-IF)
7 SHP-21 4P (MAIN-IF)
8 SIDE_LOCKING_SADDLE_DS-111A
9 SHP-29 (IF-SASH)
10 SCREW_M/C_PWH_M3X6_Fe_Zy
11 SHP-25 (IF-GROUND)
12 SHP-07 12P-10P (SMPS-POWER)
13 SCREW_M/C_PH/SWW_M3X6_Fe_Zy
14 SMPS_P
15 FLIM_SMPS_P
