CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 76 -

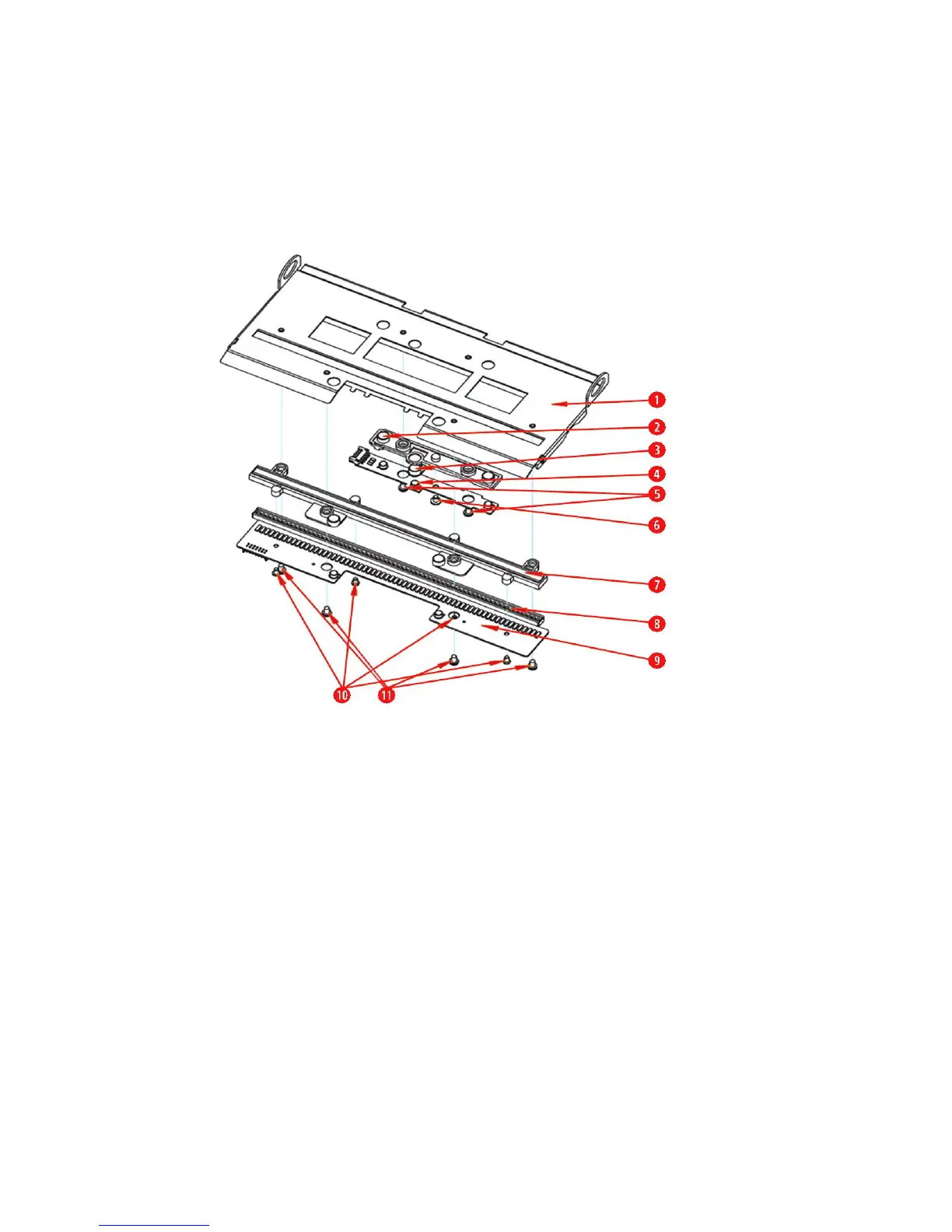

13-17. Plate Guide Upper
1 PLATE_GUIDE_UPPER_P
2 COVER_SENSOR
3 CAP_UV
4 P-JP_TRN V1.3
5 SCREW_M/C_PH/SW_M3X8_Fe_Zy
6 SCREW_T/P_PH_T2_Ø3X6_Fe_Zy
7 COVER_SENSOR_IR
8 IR_GUIDE
9 P-IR_RCV V1.4
10
SCREW_T/P_PH_T2_Ø2.6X6_Fe_Zy
11
SCREW_M/C_PH/SW_M3X8_Fe_Zy
