ASSEMBLY
10
Revolving base and braking function
The Scan 57 is equipped with a braking function for the revolving
base.
The wood-burning stove is fitted to the base before adjustment of
the braking function. For adjustment, see below.
6 x Allen M8x12
B
B

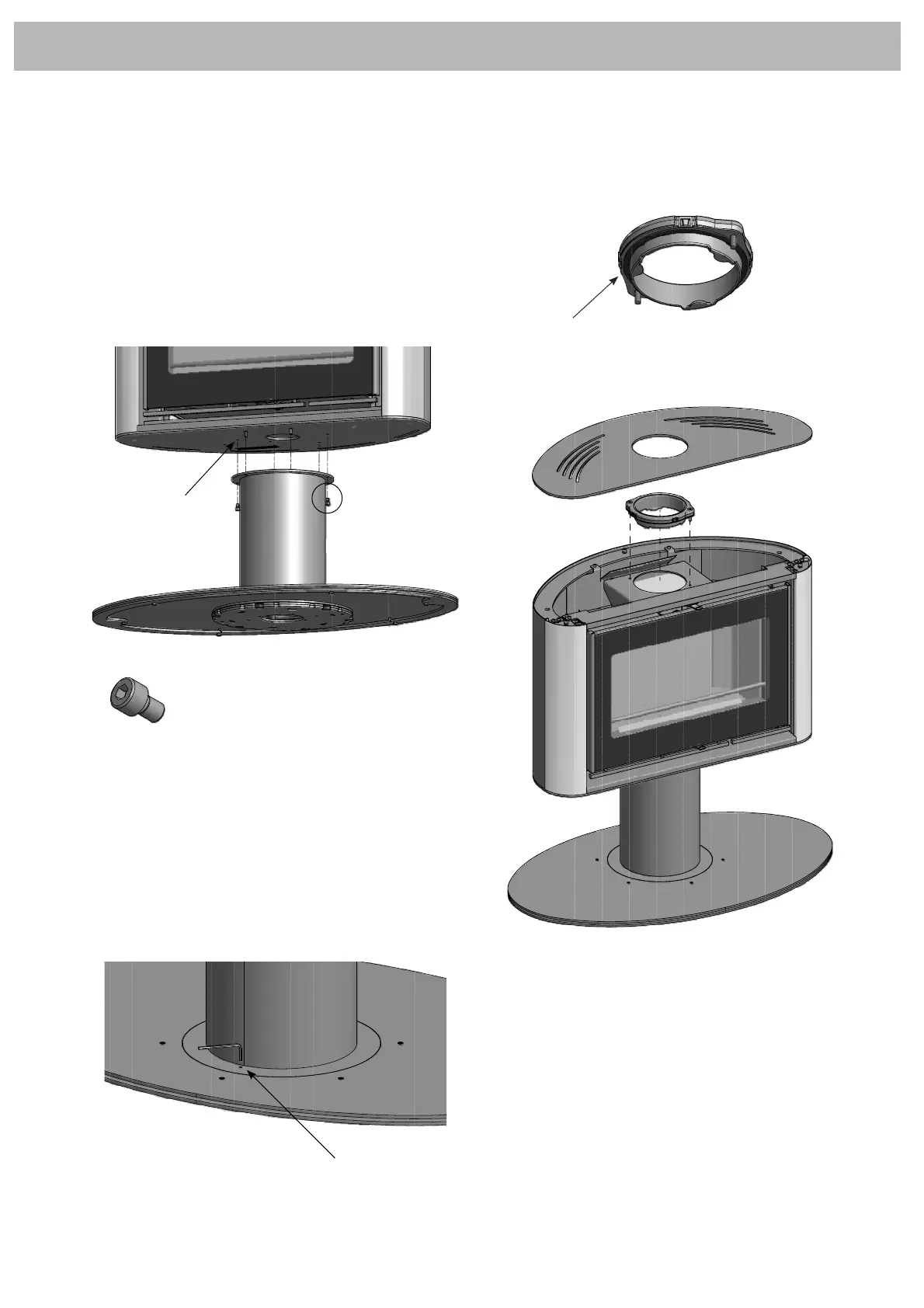

Fitting the wood-burning stove to the base
The Scan 57 is equipped with 2 pointed screws on the bottom of the
oven. These may be used to guide the stove into place on the base.
Place the stove on the base. The 2 pointed screws should fall into
the 2 holes in the base as shown. Fit 4 of the Allen screws provided.
Remove the pointed screws and fit the remaining 2 Allen screws.
If you have chosen the Scan 57 with fresh air solution through
the base then this must be fitted before the wood-burning stove
and base are screwed together. See the section "Fresh air solution
through base".
Pointed screw
Adjustment of braking function
Fitting the flue collar
Lift the top plate from the stove and fit the flue collar, seal and
screws.
Fit the seal for flue collar
