ASSEMBLY
9
6 x Cover buttons
Adjusting screws
Regulating screws
Adjusting screws

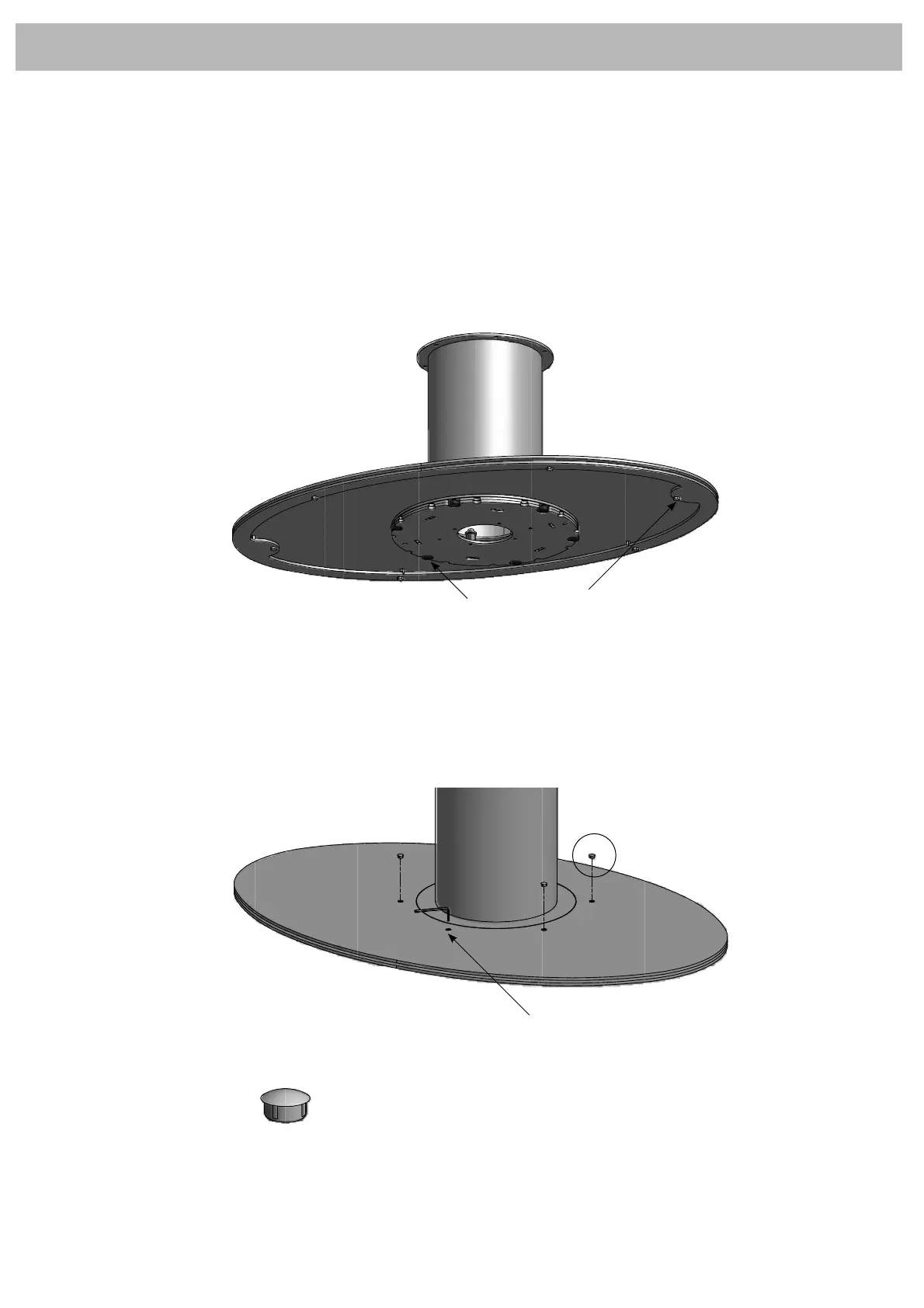

The Scan 57 is equipped with 6 adjusting screws under the base of the wood-burning stove. The adjusting screws are fitted from above and
are used to ensure the oven is level (use the key from the service pack provided). The regulating screws are used to ensure that the foot of the
base lies flat to the surface.
Fit the cover buttons in the appropriate holes when the plinth is correctly in place.
A
A
Adjusting screws fitted from above
