SCAN 65 - Page 17

17
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064025.idw
90064025
Afmontage dæksel for bagafgang
31-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
5
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064026.idw
90064026
Montage røgstuds bagafgang
11-07-11
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064052.idw
90064052
Varmeskjold løftes af ovn
31-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
4
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064024.idw
90064024
Afmontage dækplade i varmeskjold
31-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064028.idw
90064028
Montage af dæksel i topafgang
30-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
7
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064012.idw
90064012
Afmontage dækplade for bagafgang
30-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064012.idw
90064012
Afmontage dækplade for bagafgang
30-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
3
6
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064026.idw
90064026
Montage røgstuds bagafgang
11-07-11
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064026.idw
90064026
Montage røgstuds bagafgang
11-07-11
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064014.idw
90064014
Montage af røgstuds i topafgang
30-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064013.idw
90064013
Afmontage topplade + røgstuds
30-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
1
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan62\90063020.idw
90063020
Røgstuds med pakning
03-06-09
BC
Scan 63
VÆGT:
AREAL:
0,70 kg
93327 mm^2
2
Cover plate
Remove the cover. This is to be used later as a seal
and cover at the top of the smoke outlet.
Lift the heat shield off the stove and cut the cover
plate free using cutting pliers at the fastening points.
Remove the heat shield
Fit the cover and tighten it.
Replace the top plate
Cut off the cover plate from the rear plate with cutting
pliers at the fastening points
Fit the connecting piece with the four screws found in
the stove’s ash drawer. Hook the heat shield onto the
stove
4 pcs.
M5X10 mm screws
Lift the top plate and connecting piece off the stove
Mount the ceramic gasket on the
connecting piece

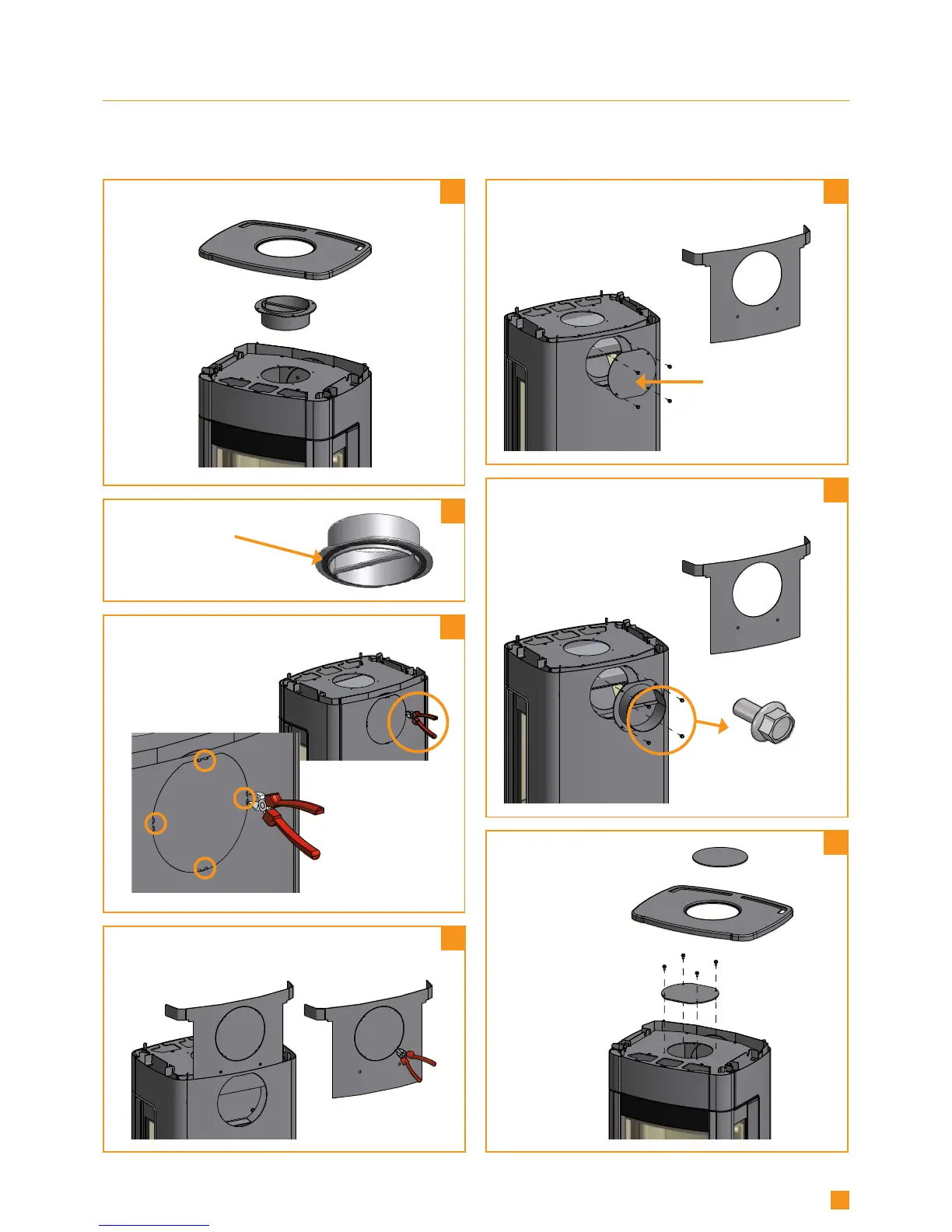

FITTING THE FLUE CONNECTION PIECE
The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove. The gasket for the connecting piece and the screws for
fastening the connecting piece are in the stove’s ash drawer.
IN THE REAR OUTLET
