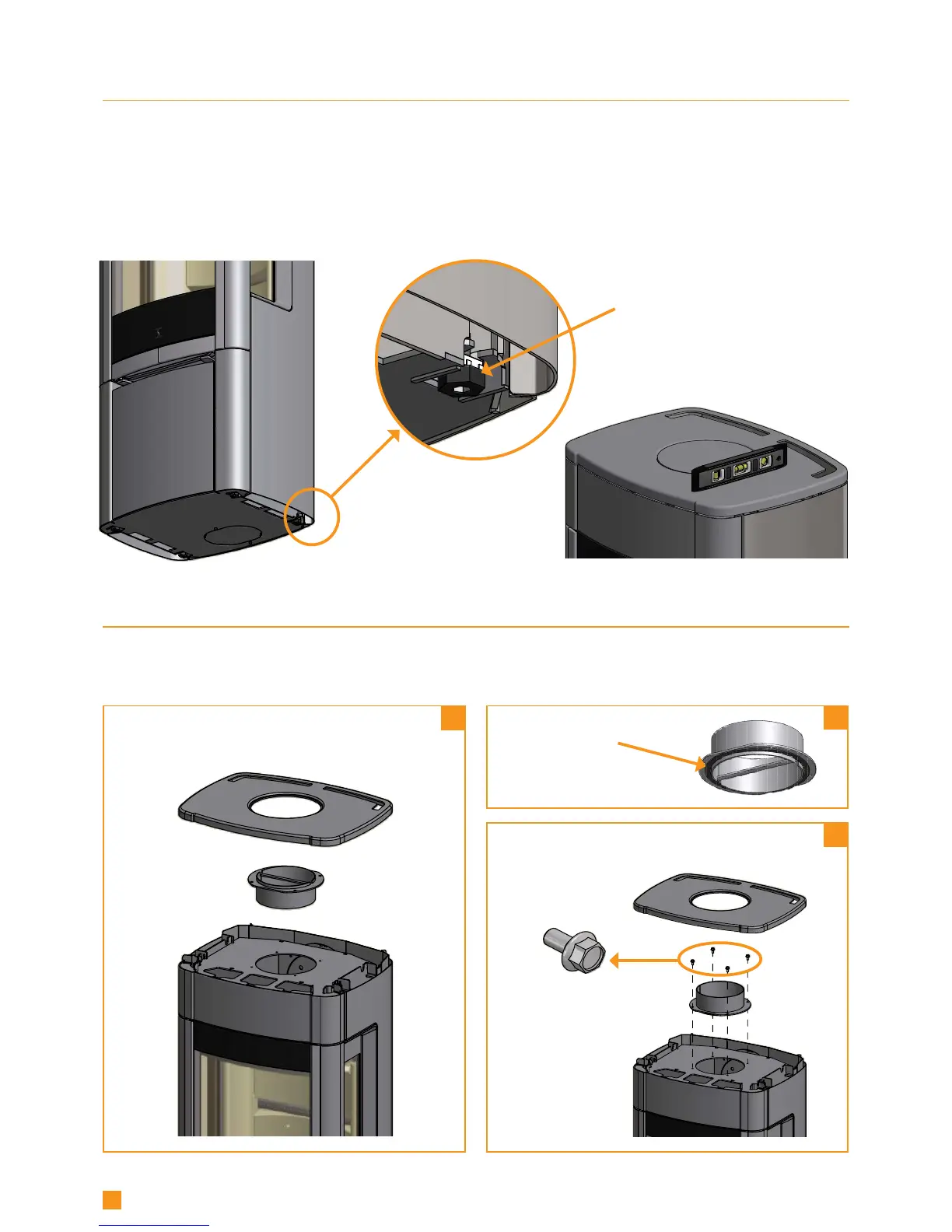

HEIGHT ADJUSTMENT OF STOVE
The stove has four adjustment screws under the stove. Use the adjustment screws to get the stove to stand straight and level.
If the floor plate is used, the stove must be adjusted so that the plate can be placed under the front of the stove.
NOTICE: It is very important that the stove is level to allow an optimal function of the door. Please note that once mounted the stove
can no longer be adjusted!
Ajustment screw
Fasten the connecting piece with screws from the ash
drawer and replace the top plate.
Lift the top plate and connecting piece off the stove
Mount the ceramic gasket on the
connecting piece
4 pcs. M5X10 mm
screws
FITTING THE FLUE CONNECTION PIECE
The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove. The gasket for the connecting piece and the screws for
fastening the connecting piece are in the stove’s ash drawer.
IN THE TOP OUTLET
