SCAN 65 - Open Plinth; Heat-Storage System

20
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064041.idw
90064041
Låge med gennemsynssokkel
29-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064010.idw
90064010
Typeskilt og registreringsnummer
21-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\90065005.idw
90065005
varmeakkumulerende sten
15-10-2015
hms
Scan 65
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Scan A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 65\10065900_Manual.iam
10065900_Manual
22-05-2015
jwa
VÆGT:
AREAL:
N/A
N/A
NAVN: STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068058.idw
90068058
klargøring til vægbeslag
12-05-2015
hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 65\90065025.idw
90065025
Lukket spjæld
26-01-17
jm
Jotul F230
Weight:
Area:
N/A N/A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 65\90065026.idw
90065026
Åben spjæld
26-01-17
jm
Jotul F230
Weight:
Area:
N/A N/A
NAVN:
STI:
M3 NR.:
MATERIALE:
DATO:
SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 65\90065014.idw
90065014
Scan 65 high varm akk.
17-01-2017
jm
Scan 65
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S

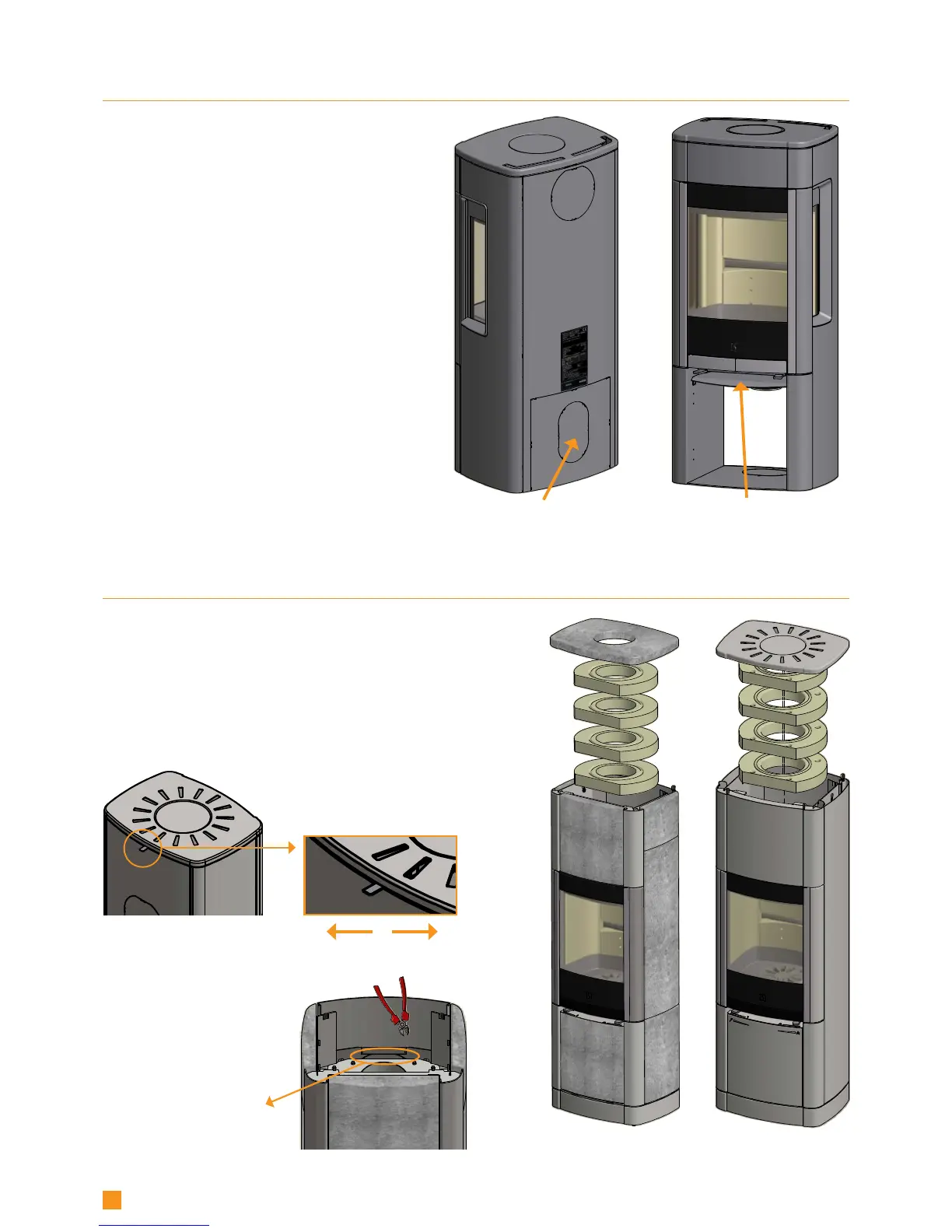

OPEN PLINTH
If you want an open plinth, remove the wood compartment
door and its stop as well as the large cover plate at
the back of the stove.
Cover plate
to be removed
Do not remove
the radiation plate
65-9 and 65-1065-7and 65-8
Cut off this plate from
the heat shield in order to
make place for the heat
accumulating stones
The vent for adjustment
of the convection air is
placed at the back of the
high top
Open Closed
(ACCESSORY)HEAT-STORAGE SYSTEM
Heat-storage stones are available for Scan 65-7, 65-8, 65-9 and 65-10.
Heat-storage stones are made from a special material with a high
heating capacity. The stones are heated up during the firing and gives
off the heat again after the firing, which means that the stove stays
warm for a longer time.
¬ Firing with the vent open will give a quicker heating. Firing with the
vent closed will extend the heating time of the stove.
