SCAN 65 - Baffle Plate and Lining Removal

29
A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064033.idw
90064033
Snit igennem ovn
29-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064034.idw
90064034
Brændkammerforing uden sideruder
13-07-11
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064035.idw
90064035
Brændkammerforing med sideruder
13-07-11
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064033.idw
90064033
Snit igennem ovn
29-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064033.idw
90064033
Snit igennem ovn
29-08-12
BC
Scan 64
VÆGT:
AREAL:
N/A
N/A

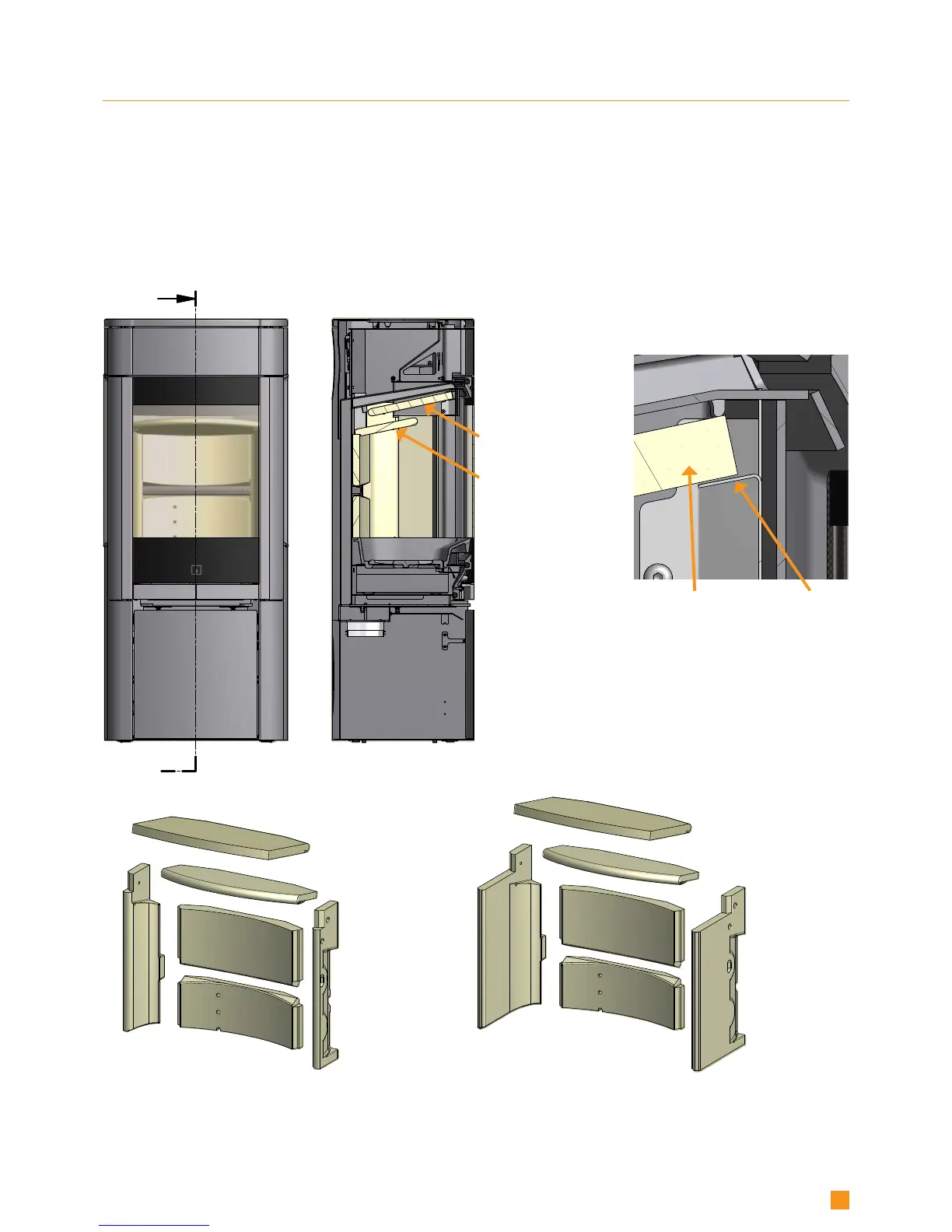

65-2, 65-4, 65-6, 65-8 and 65-10
(with side windows)
65-1, 65-3, 65-5, 65-7 and 65-9
(without side windows)
Upper
baffle plate
Lower
baffle plate
Upper
baffle plate
Holder for
upper
baffle plate
Be very careful when removing
the baffle plates from the stove
BAFFLE PLATES AND COMBUSTION CHAMBER LINING
¬ Lift up the lower baffle plate, remove the pins and take out the baffle plate.
¬ Lift the upper baffle plate to the back of the combustion chamber. Remove pins. Pull the plate free from the baffle plate
holder and remove it.
¬ Lift the combustion chamber lining’s sides, remove them from the rear cover and take them out. Note that the combustion
chamber lining’s sides support the rear cover so this could fall when the sides are removed.
¬ Remove the rear cover
