INSTALLATION

MANUAL

Batteries and alternators

03:01 Issue 11 en-GB 7

Battery master switch

If a battery master switch is installed between the starter motor and the batteries, it

must be positioned as close to the batteries as possible.

The power must not be switched off directly after switching off the engine. In order

for the control units to store operational data and switch off any systems, it is impor-

tant to allow a 10 second delay before switching off the power.

IMPORTANT!

The SCR system may need up to 30 minutes to cool the reductant doser in extreme

conditions. The battery master switch must not be switched off before then.

Status for post-running is sent out in CAN message DLN7. More information is

available in section DLN7 in 03:05 CAN interface.

B+

B-

D+

335 784

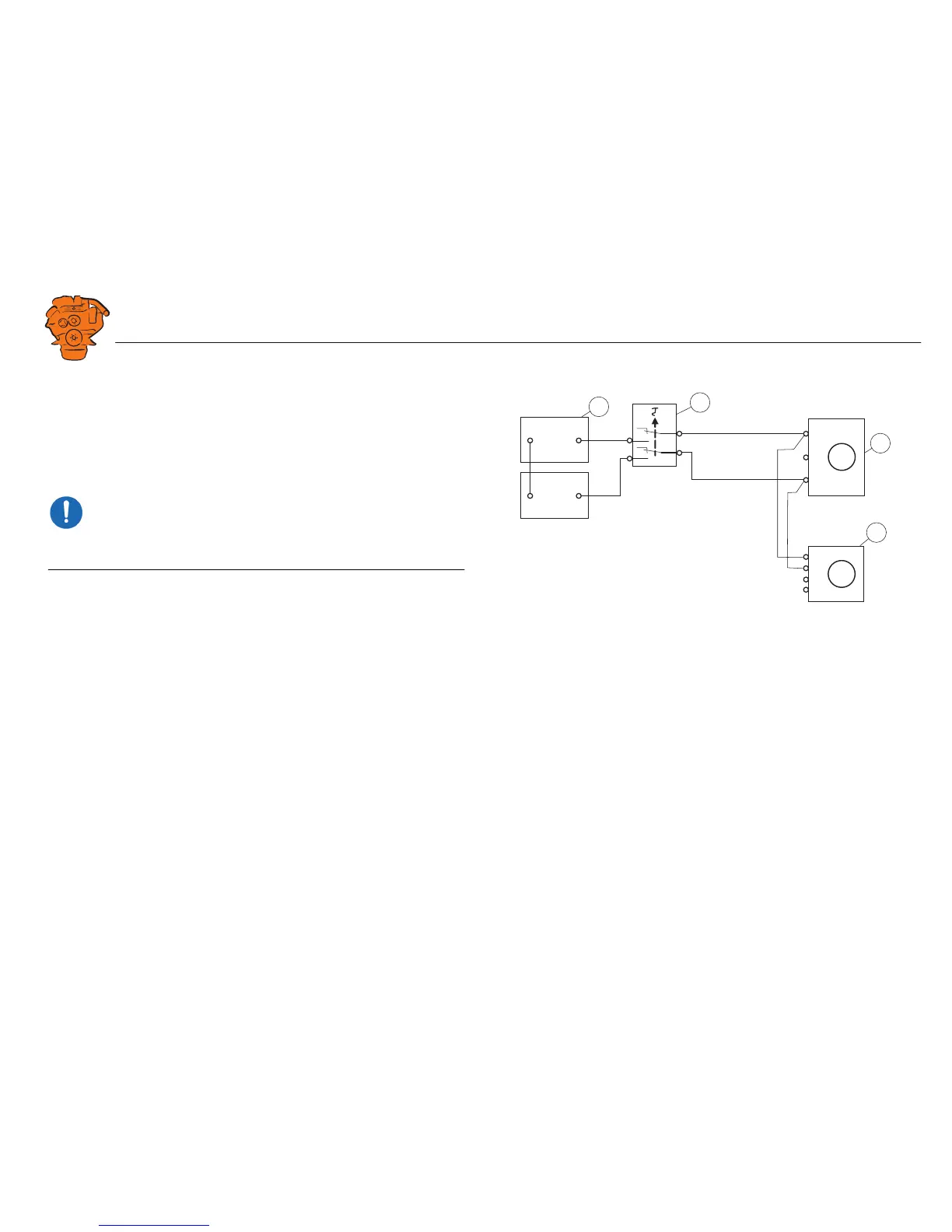

Mechanical battery master switch.

M1 = Starter motor.

P1 = Battery.

P3 = Alternator 1.

S6 = Mechanical battery master switch.
