Installation instructions 4 - 7
Doc.nr : 6611-018

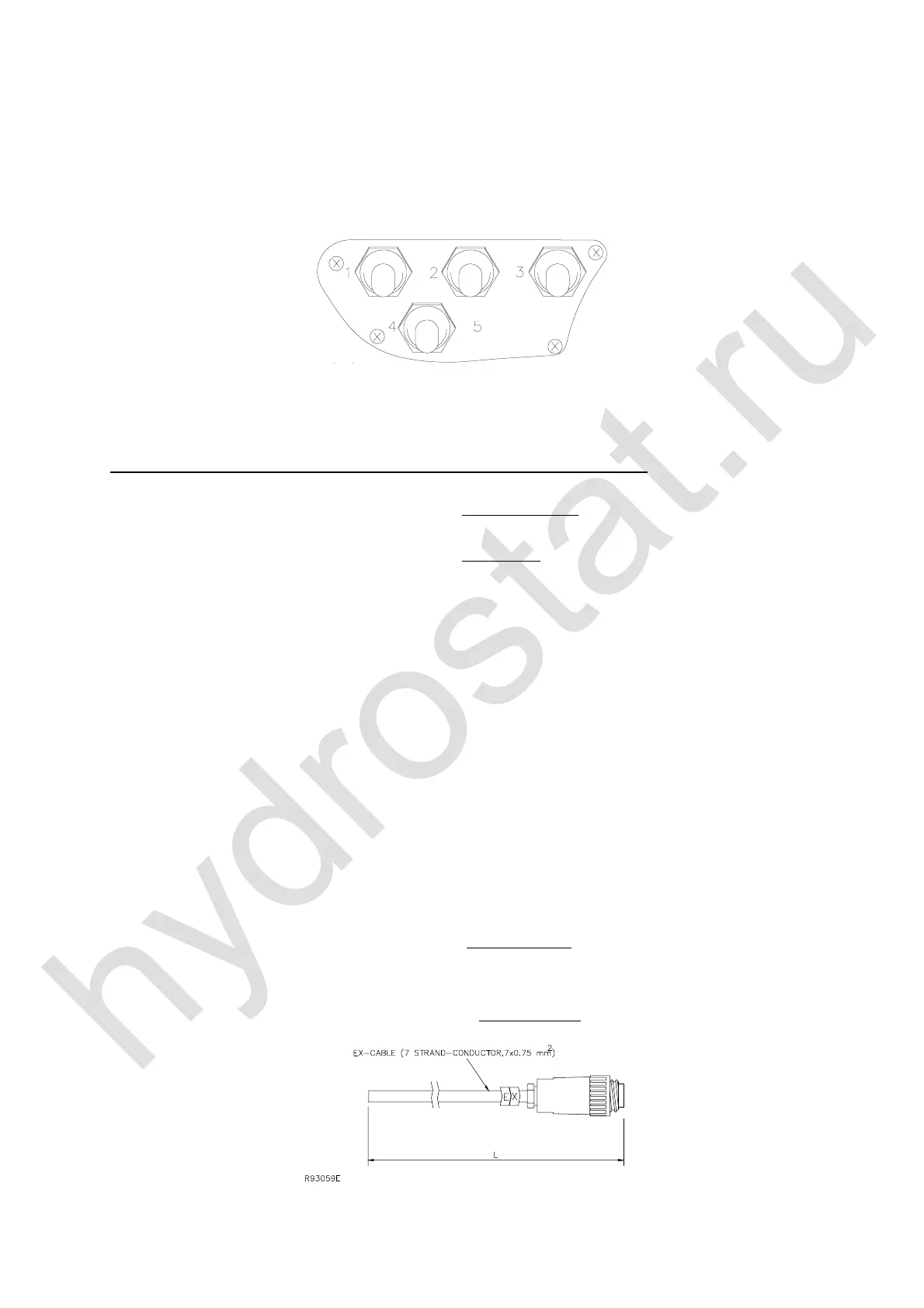

&RQQHFWLRQVFKHPDWLFIRU212))IXQFWLRQV
6ZLWFK (;FDEOH1R )XQFWLRQGHVFULSWLRQ
1 ON No: 1 Continuous full working throttle.
1 Centre No: - Idle.
1 OFF No: 1 Automatic
connection of full throttle.
2 ON No: 2 Start vehicle motor.
2 OFF No: 3 Stop vehicle motor.
3 ON No: 4 RPM + or HPLS ON
3 OFF No: 5 RPM - or HPLS OFF
ON/SIGNAL No: 7 Signal / Horn / or Overload reset.
9'&$PSis provided on each respective line on the EX cable after the respective
ON/OFF function is activated from the control unit.
1RWH An auxiliary relay is not normally required for ON/OFF functions except for starting of the vehicle motor.
See recommended connection schematic on the next page. Page 4-8.
1. Automatic throttle control, i.e. throttle opening occurs at the same time that a manoeuvre is started with one
of the levers. The throttle opening has a shut-down delay, i.e. it stays up for ca 6 seconds after the latest lever
movement.
2. Start of motor, see recommended connection schematic on the next page
.
