2. Installation and adjustment
The installation of the products must take place on an evenly flat surface. The grinder
should be fastened into the floor.
2.1 Mounting the Pipe notching aggregate, purchased as extra
equipment
This section concerns how the roll holder of the aggregate is mounted to a grinder. If you
have received the RB-aggregate and grinder as a set, the roll holder is allready in place
grinder
If you have purchased the RB-aggregate as an extra equipment for your grinder, and the
grinder i produced before around 2011, initially two threaded holes must be established in
the grinders Fork for contact weel and then the role holder is mount with the new
grindingbelt. The procedure is described below.
2.1.a Dismantling
Remove the sparkbox (F) and holder of the grinding facility holder (B) from the grinder.

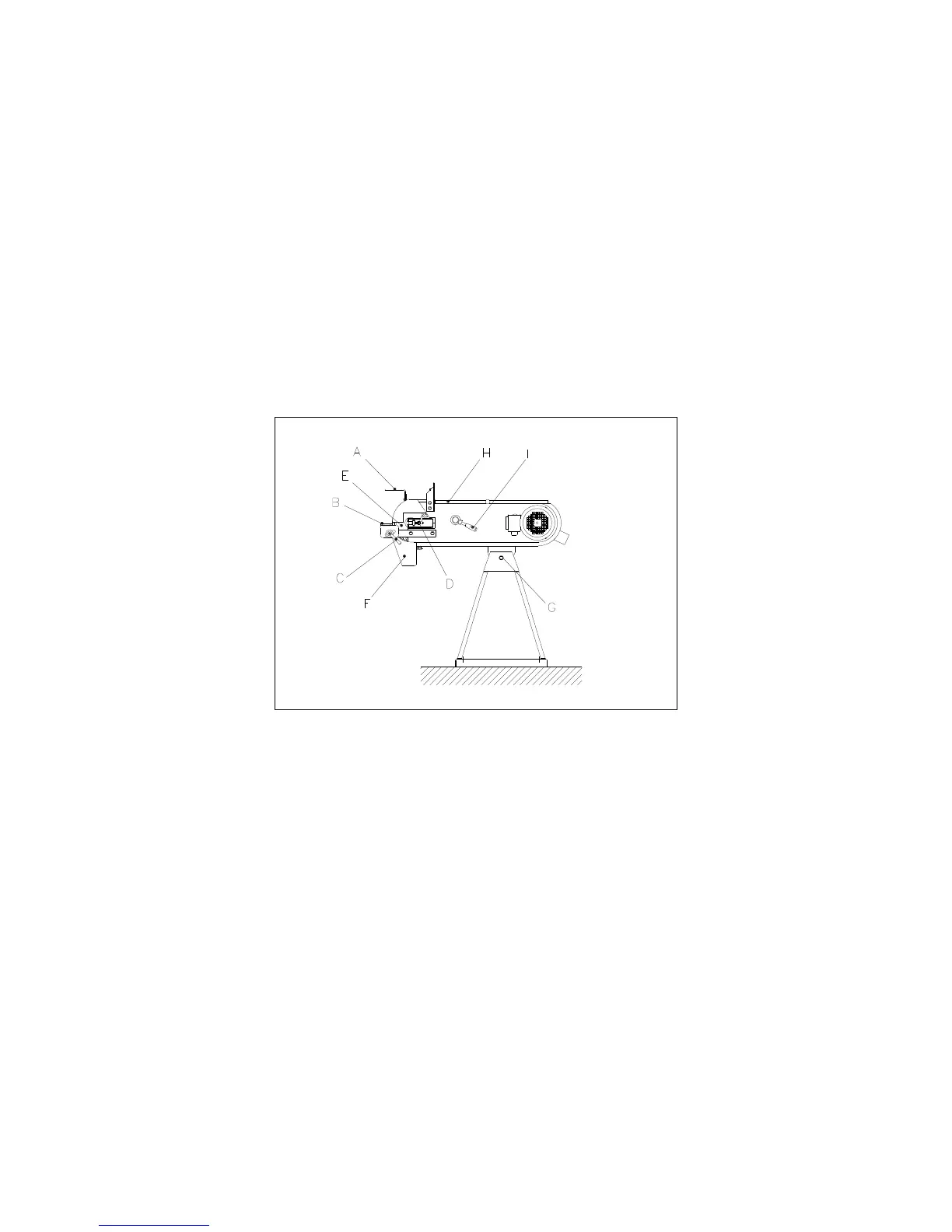

Figur 2.1.1 Parts of a grinder.
2.1.b Establishment of threaded holes.
Establish as accurately as possible two M6 threaded holes in the belt grinder's fork for
contact weel. Belt grinders manufactured before around 2011 do not have these holes.
See grinder split draft position 23 and place the holes as according to the drawing in figur
2.1.2.
