Schaudt EBL 225 - Description and appropriate use

4 Situation: 14.06.2005 SDT-0058-00EN
Instruction Manual Electrobloc EBL 225
3 Description and appropriate use
The Electrobloc EBL 225 is designed as a main power distributor for
motorhomes. It is a permanent installation. The Electrobloc is for charging
batteries and supplying 12 V appliances with power.
The Electrobloc consists of:
P
The LAS 1218 charger module
P
The 12 V distribution
P
Fuses for the 12 V circuits
P
Other control and monitoring functions
The charger module is a primary controlled switch-mode power supply. This
modern switching technology achieves high charging performance at a com-
pact size and low weight.
A control and switch panel has to be connected for operation. This control and
switch panel controls the electrical functions in the living area of in the
motorhome, including accessories.
There are connections for an auxiliary charging unit and a solar charge regu-
lator.

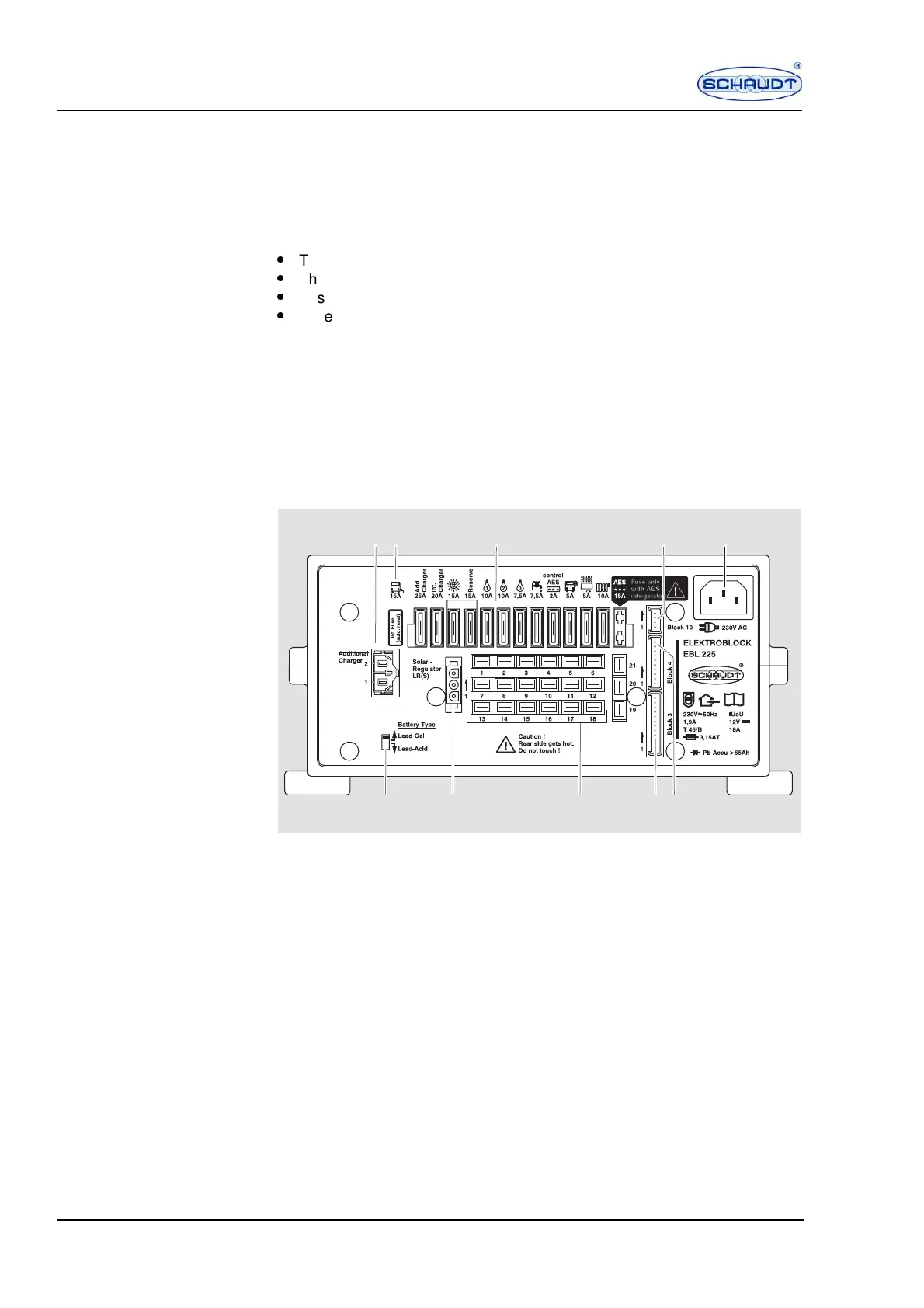

Fig. 1 Electrobloc EBL 225 front view
1 Connections for auxiliary charging unit
2 PolySwitch step alarm fuse
3 Flat vehicle fuses
4 Connections for solar charge regulator (signal)
5 230 V mains connection
6 Connections for control and switch panel
7 Connections for control and switch panel
8 12 V connections
9 Connections for solar charge regulator (output)
10 Battery selector switch
SDT00274
i
1 2 3 5
8910 7 6
4
